Soft Router Appliance With Intel Pentium 4415U Processor 6 Intel I225 Gigabit LAN Ports 4 USB3.0 Ports High performance Mini PC
Price:
114.18usd
MOQ:
1 Piece
Delivery Time:
7-15 working days
Brand:
Helor PC
Product Description
Mini PC With Intel Pentium 4415U Processor 6 Intel I225 Gigabit LAN Ports
4 USB3.0 Ports High performance Soft Router Appliance
Product Introduction of Intel Pentium 4415U Processor
This Intel Pentium 4415U processor is equipped with one DDR4 SODIMM memory slot supporting up to 16GB RAM, 1*Mini PCIe slot compatible with mSATA SSD,
and 1*SATA 3.0 interface for SSD or HDD (supported by the motherboard but unavailable for installation due to chassis limitations). It features 6*Intel I225 network
adapters with PXE diskless boot and Wake-on-LAN functions. The device adopts an all-aluminum finned passive cooling structure with a fanless design, which effectively
avoids internal dust accumulation and operational noise generated by cooling fans.
Product Specifications of Intel Pentium 4415U Processor
| Processor | Intel Pentium 4415U |
| System Memory | 1*DDR4 SODIMM slot, max supported memory up to 16GB |
| Network |
6*Intel I211 Gigabit Ethernet controllers, supporting Wake-on-LAN and PXE boot from LAN
|
| Front I/O Ports |
1*Power Button, 4*USB3.0, 1*HD-MI, 1*VGA, 1*RJ45 RS232 COM Port
|
| Rear I/O Ports |
1*DC 12V Power Jack, 1*Power LED Indicator, 1*HDD Activity LED Indicator, 6*LAN Ports
|
| Storage |
1*Mini PCIe slot for mSATA SSD, 1*SATA 3.0 interface for SSD/HDD (Supported by motherboard, not available for installation due to chassis restriction) |
| OS | Win 10/11, LINUX |
| Operating Temperature | -10℃-70℃ |
Product Details of Intel Pentium 4415U Processor

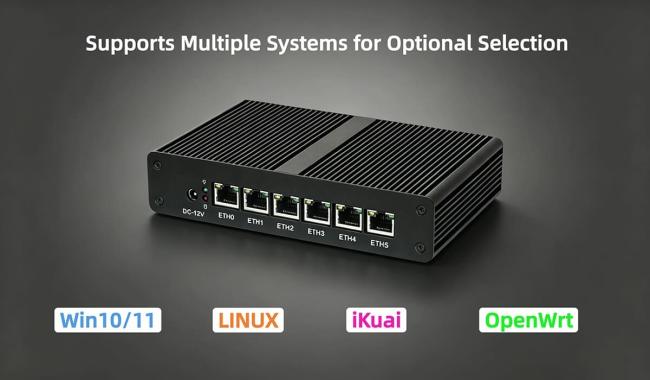

This Intel Pentium 4415U processor supports multiple operating systems including Win10/11, Linux, iKuai, OpenWrt and ESXi.
OpenWrt is pre-installed by default. Please leave a message or contact customer service if you need to install other operating systems.

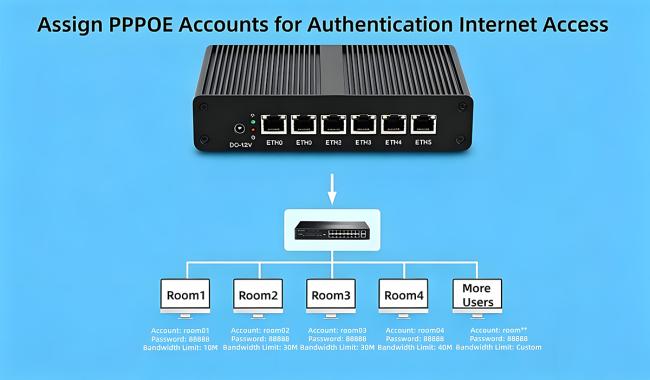

Performance Introduction of Intel Pentium 4415U Processor
Equipped with Intel Pentium 4415U processor featuring dual-core and four-thread configuration, this device easily handles multitasking with a base frequency of 2.3GHz
for enhanced processing speed. As a soft router, it supports multi-PPPoE dial-up per single WAN line, which relies on local ISP’s broadband permission for multi-dial
access; the function will be unavailable if the ISP does not authorize such service. Available bandwidth can be aggregated to multiply network speed. Internet access
via assigned PPPoE account authentication facilitates centralized management and improves network security through identity verification.

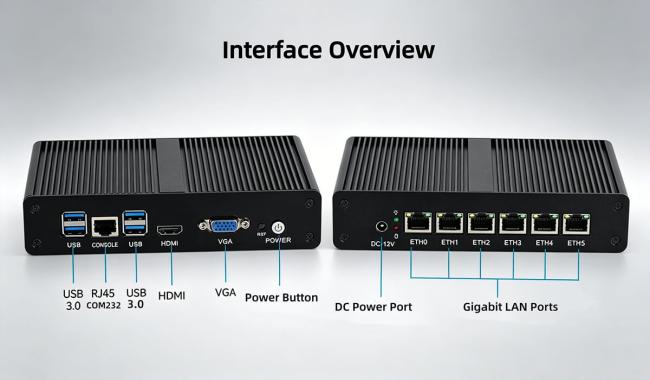

Interface Specification of Intel Pentium 4415U Processor
The unit is equipped with abundant interfaces to satisfy regular application requirements. Front Panel Interfaces:1*Power Button, 4*USB3.0, 1*HD-MI, 1*VGA,
1*RJ45 RS232 COM Port. Rear Panel Interfaces:1*DC 12V Power Jack, 1*Power LED Indicator, 1*HDD Activity LED Indicator, 6*LAN Ports.
