Industrial Mini Pc Intel Core 1235U Processor Dual 2.5GbE RJ45 Intel I225V LAN 2 DB9 COM 1 EXT IO 6 USB Fanless Computer
Industrial Mini Pc Intel Core 1235U Processor Dual 2.5GbE RJ45
Intel I225V LAN 2 DB9 COM 1 EXT IO 6 USB Fanless Computer
Product Introduction of Industrial mini PC with Intel Core 1235U Processor
Product Specifications of Industrial mini PC with Intel Core 1235U Processor
| Processor System | Core 1235U |
| Memory | 1*DDR5, up to 32GB |
| Storage |
1*M.2 2242/2260/2280 SATA, 1*2.5-inch HDD/SSD, 1*M.2 2280 NVME |
| Front Interfaces |
1*HD-MI, 4*USB2.0, 2*LAN, 2*COM, 1*EXT IO: Integrated with 4-channel 3-wire COM ports, 10-channel GPIO and 1 remote switch, 1*ATX/AT dual-mode boot toggle switch, 2*USB 3.0 ports, 1*4-pin aviation power socket, 1*power button, 1*audio jack
|
| Rear Interfaces |
5*Wi-Fi antenna ports for Wi-Fi/Bluetooth/3G/4G/5G modules
|
| Power Input |
9V-36V
|
| OS Support |
Win10, WES10, Linux |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Humidity | 10% ~ 90%, non-condensing |
| Installation Methods |
Supports desktop
|
Product Details of Industrial mini PC with Intel Core 1235U Processor
Environmental Adaptability of Industrial mini PC with Intel Core 1235U Processor

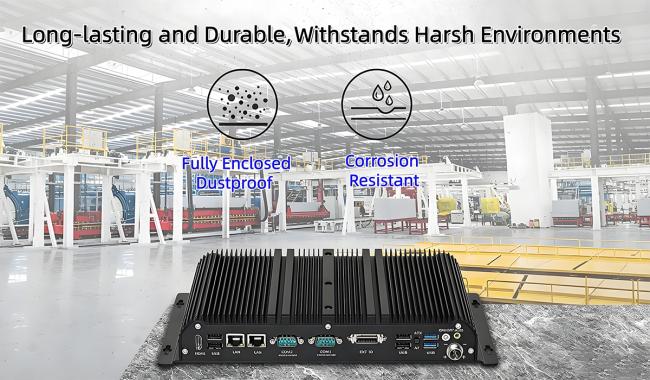

Designed for industrial scenarios, this mini industrial control computer features dustproof, anti-corrosion, anti-vibration, anti-shock and anti-interference capabilities,
enabling normal operation under various temperature and humidity conditions. It supports power-on auto boot, energy-saving long-hour continuous operation, and
stable performance under unstable environments, meeting the operating demands of various commercial and industrial automation equipment. The whole machine
adopts high-density grille heat dissipation technology to accelerate heat dissipation, reduce hardware damage caused by dust and extend the long-term service life
of the equipment.

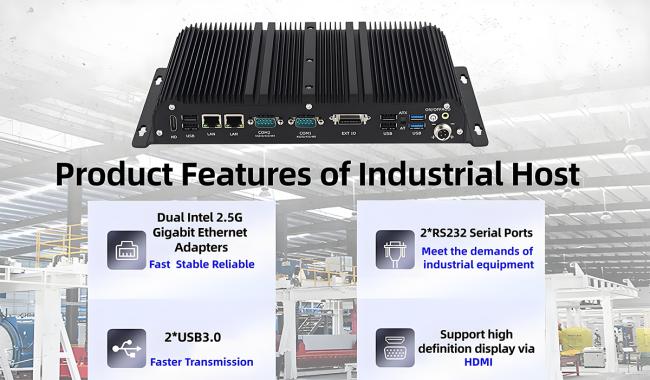

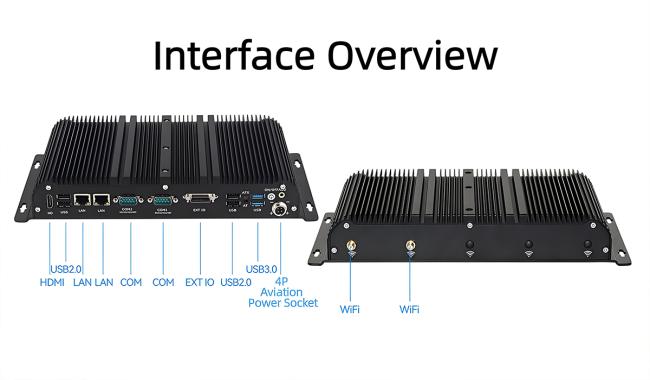

1*HD-MI, 4*USB 2.0, 2*LAN ports, 2*COM ports. 2*Gigabit Ethernet ports + 2*industrial COM serial ports for seamless connection with PLCs and industrial instruments.
Rear panel interfaces: 5*Wi-Fi antenna ports for Wi-Fi/Bluetooth/3G/4G/5G modules to support flexible wireless networking.
