China 24-Port Network Switch 10/100/1000BASE-T Ethernet with 10-gigabit SFP and 12GE Stack Ports for sale

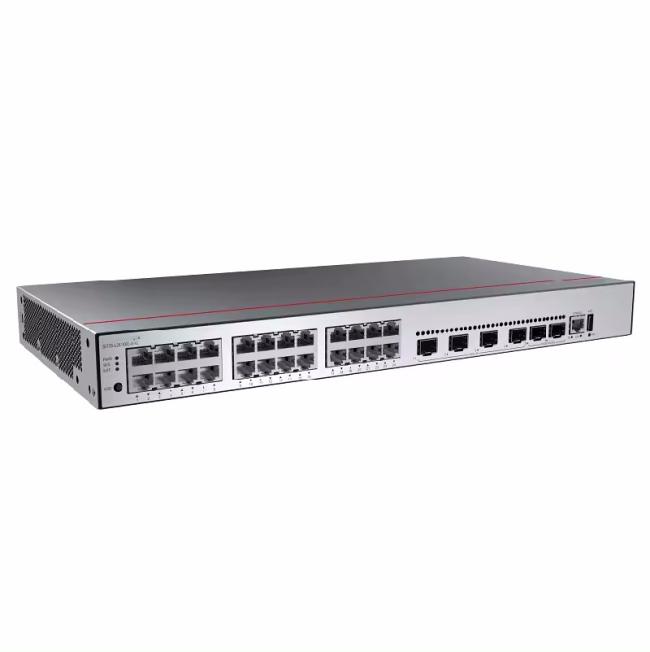

24-Port Network Switch 10/100/1000BASE-T Ethernet with 10-gigabit SFP and 12GE Stack Ports

Name: 24-Port Network Switch 10/100/1000BASE-T Ethernet with 10-gigabit SFP and 12GE Stack Ports
Brand: Shanghai Apying Technology Co., Ltd.

Price Negotiable

Price: $330.00/pieces 1-4 pieces

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

Specification

Product Description

Product Model	CloudEngine S5735-L24T4XE-A-V2 CloudEngine S5735-L24T4XE-D-V2	CloudEngine S5735-L24P4XE-A-V2 CloudEngine S5735-L24P4XE-TA-V2	CloudEngine S5735-L48T4XE-A-V2 CloudEngine S5735-L48T4XE-TA-V2 CloudEngine S5735-L48T4XE-D-V2	CloudEngine S5735-L48P4XE-A-V2	CloudEngine S5735-L48LP4XE-A-V2
Forwarding Performance	132Mpps	132Mpps	168Mpps	168Mpps	168Mpps
Switching Capacity2	176Gbps/520Gbps	176Gbps/520Gbps	224Gbps/520Gbps	224Gbps/520Gbps	224Gbps/520Gbps
Fixed Ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, 2 stack ports	24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, 2 stack ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, 2 stack ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, 2 stack ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, 2 stack ports
PoE	CloudEngine S5735-L24P4XE-A-V2:Supported CloudEngine S5735-L24P4XE-TA-V2:Supported CloudEngine S5735-L48P4XE-A-V2:Supported CloudEngine S5735-L48LP4XE-A-V2:Supported Other models:Not supported
MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
VLAN Features	4094 VLANs Voice VLAN MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, click HERE.
