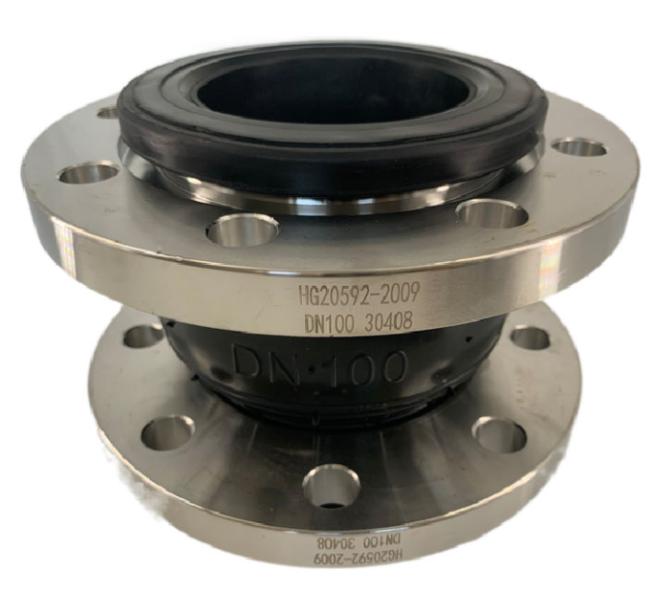

SS30408 Flange Type Malaysia Flexible DN100 Bellows PN16 Rubber Expansion Joint
SS30408 Flange Type Malaysia Flexible DN100 Bellows PN16 Rubber Expansion Joint
Product Overview
The DN100 PN16 Flexible Rubber Expansion Joint with SS30408 flanges is designed for high-performance pipeline systems that require vibration absorption, noise reduction, and thermal expansion compensation. Engineered with a high-strength rubber bellows and corrosion-resistant stainless steel 304 flanges, this unit ensures excellent durability and leak-free operation under pressure.
Ideal for the Malaysian market and Southeast Asian industrial standards, this flange-type flexible connector is widely used in water treatment plants, HVAC systems, chemical pipelines, and other industrial applications.
Key Features
Flange Material: Stainless Steel SS30408 (GB equivalent to ASTM 304)
Working Pressure: PN16 / 16 Bar / 232 PSI
Nominal Diameter: DN100 (4 inches)
Flexible Structure: High-elasticity rubber bellows for axial, lateral, and angular movement
Corrosion Resistant: SS304 flanges resist rust, ideal for outdoor and wet environments
Easy Installation: Standard flange ends suitable for quick connection
Export Grade: Designed to meet common Malaysia and international project requirements
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Rubber Expansion Joint |
| Nominal Size | DN100 (4") |
| Pressure Rating | PN16 (16 bar / 1.6MPa) |
| Bellows Material | EPDM / NBR / Neoprene / Customized |
| Flange Material | SS30408 (Stainless Steel 304) |
| Connection Type | Flanged – Raised Face (RF) |
| Temperature Range | -10°C to +120°C (varies by rubber type) |
| Movement Capability | Axial ±10mm, Lateral ±12mm |
| Design Standard | GB / DIN / ANSI / JIS (Custom available) |
Applications
This SS304 flange type rubber joint is commonly used in:
1. Water supply and drainage systems
2. Fire protection pipelines
3. HVAC & air conditioning ducting
4. Chemical and petrochemical industries
5. Marine pipelines and pump systems
6. Industrial machinery for vibration isolation
Benefits
✔️ Reduces noise and vibration in pipeline
✔️ Compensates for thermal expansion and misalignment
✔️ Long service life with corrosion-resistant flanges
✔️ Flexible design absorbs shock and movement
✔️ Fast installation, minimal maintenance
Packing & Delivery
Packing: Standard export wooden cases or pallets
Delivery Time: 5–15 working days depending on quantity
Shipping: By sea, air, or express (DHL/FedEx)
Get a Quote
Looking for a reliable supplier of stainless steel flange rubber joints for your Malaysia or Southeast Asia project?
Contact us now for a quick quote, technical datasheet, or customized solution!
Frequently Asked Questions
Q1: What is the maximum working pressure of this joint?
A1: The PN16 rating means it supports up to 16 bar (232 PSI) under standard conditions.
Q2: Can I use this in seawater or chemical applications?
A2: Yes. For seawater, EPDM rubber is recommended. For chemical media, please confirm with our technical team for the right rubber type.
Q3: Do you support OEM or logo printing?
A3: Yes, we provide OEM services including logo customization and packaging design for bulk orders.
Q4: Is this product certified?
A4: Upon request, we can provide ISO 9001, CE, and other relevant certificates for export compliance.
