China Top- STEKI Air Disc Brake Pneumatic Brake for Embossing Machine Manufactured in Our for sale

Top- STEKI Air Disc Brake Pneumatic Brake for Embossing Machine Manufactured in Our

Price Negotiable
Price: $200.00 - $250.00/pieces
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

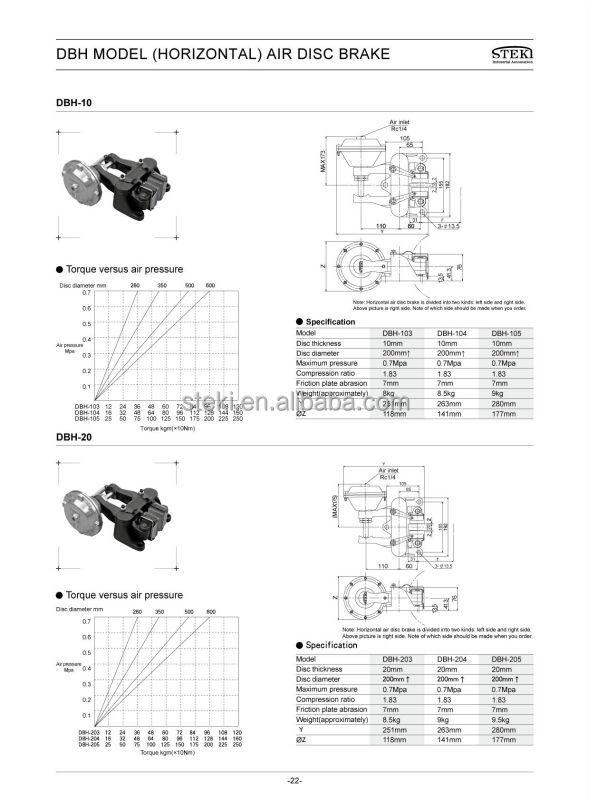

STEKI air disc brake pneumatic brake for embossing machine



 DBH203



TYPEDBH-203
THICKNESS OF DIA20MM
DIA FOR DISC200MM
MAX PRESSURE0.7MPA
 PRESSURE RATIO1.83
PAD CLEARANCE7MM
WEIGHT8.5KGS
Y251MM
Z118MM





Use in high accuracy tension control situation, can provide many kinds of torque control, has a great ability of radiation, can have a wide application in processing industries, such as the packing, tissue paper and corrugated paper. The friction disc of chucks brake can choose at will, convenient for the installation and the maintenance.
