China STEKI 2019 Your Trusted Source for Pneumatic Brake Clutch Manufacturing in Taiwan for sale

STEKI 2019 Your Trusted Source for Pneumatic Brake Clutch Manufacturing in Taiwan

Price Negotiable
Price: $128.00 - $312.00/pieces
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

STEKI 2019 top-quality pneumatic brake&clutch supplier in Taiwan

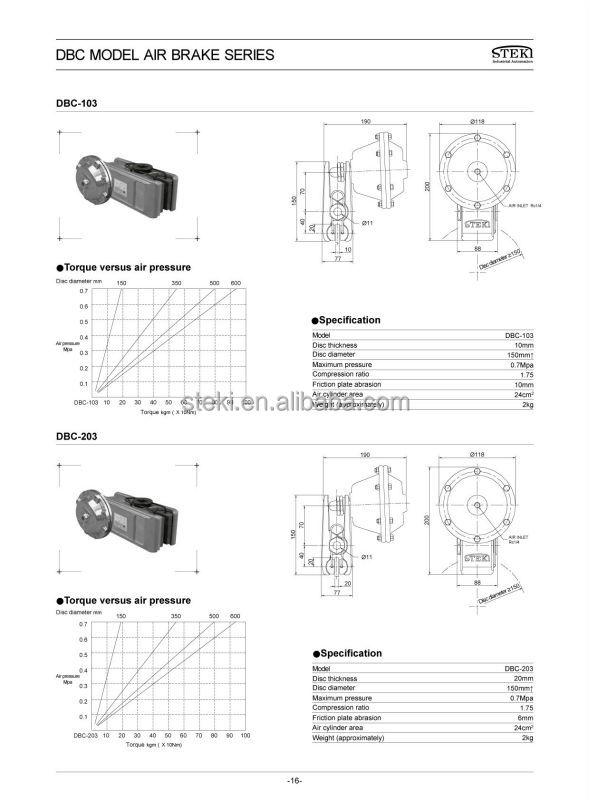

DBC series



CODEDBC-103

brake pedal

DISC THICKNESS10MM
DIA FOR DISC150MM
MAX PRESURE0.7MPA
COMPRESSORE RATIO1.75
PADS CLEARANCE10MM
BAROMETIC CYLINDER AREA24CM2
WEIGHT2KGS





Use in high accuracy tension control situation, can provide many kinds of torque control, has a great ability of radiation, can have a wide application in processing industries, such as the packing, tissue paper and corrugated paper. The friction disc of chucks brake can choose at will, convenient for the installation and the maintenance.

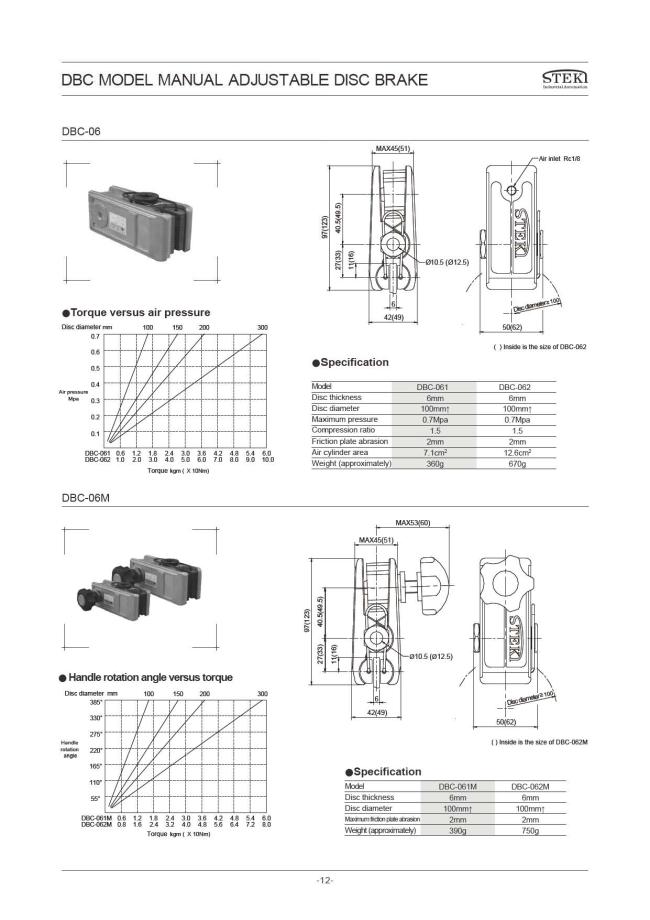

Catalogue:
