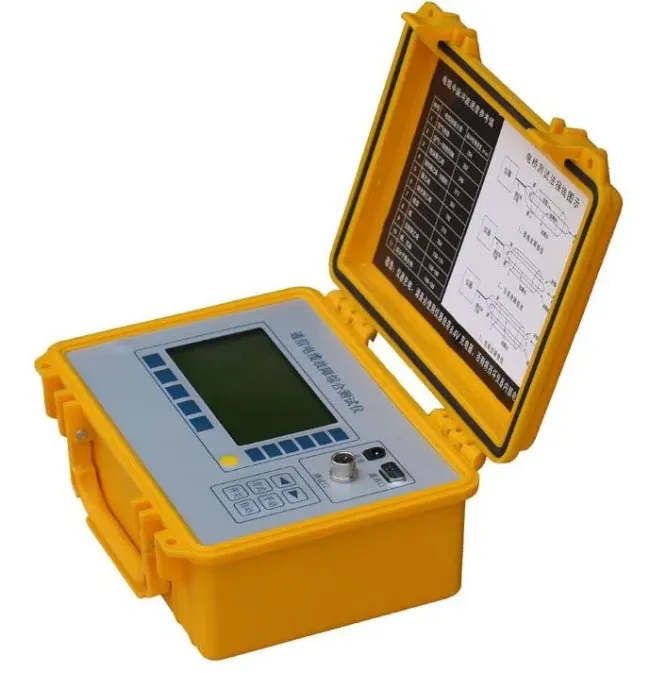

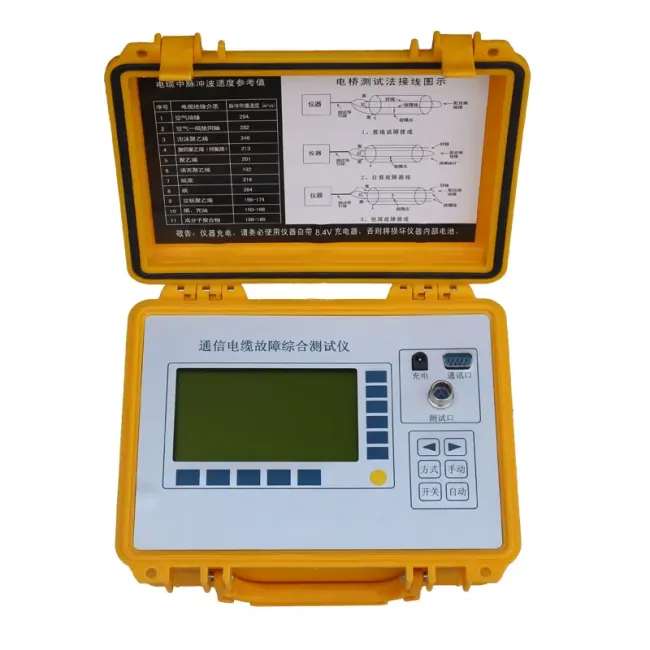

Communication Cable Fault Tester Local Telephone Cable and Low Voltage Fault Locator
XHGG500
Product Description
Features
- Both pulse reflection testing and intelligent electric bridge testing can test broken lines, crossing lines, bad insulation and other types of faults.
- Automatic testing, just press the key for one time, the fault will be found.
- Manual testing function is preserved.
- English menu, easy to master and use.
- With mega meter and ohmmeter, enables to test insulation resistance and loop resistance.
- Preserve 10 testing waveforms permanently, which are cannot lost after switch off, some parts replaces the functions of printer.
- Technology of automatic gain and automatic impedance balance replaces the cumbersome potentiometer adjustment.
- Background lights display supports night operation.
- Rechargeable lithium battery, intelligent charge without duty.
- Small dimension, light weight, portable design.
1. Pulse reflection testing:
* The largest measuring range is 8 km, you can choose suitable measurement range according to the length of cable.
* Testing blind spot: 0 m.
* Testing resolution:1m when it is the minimum range.
8m when it is the maximum range.
* Pulse width: 80ns-10μs with automatic adjustment
* Automatic impedance balance adjustment
* Automatic and manual gain adjustment.
2. Intelligent electric bridge testing:
* Enable to test bad insulation resistance max: 100 MΩ.
* Testing accuracy:±1%×cable length
* The longest cable span: 9999m.
* It can be divided into three segments to input diameters: 0.3mm-0.99mm
3. Others
| Rechargeable time | 4 hours |
| Continued operating time | 6 hours |
| Dimension | 230×150×160mm |
| Weight | 2kg |
