LV Cable Fault Locator with High Voltage Constant Current Source
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description

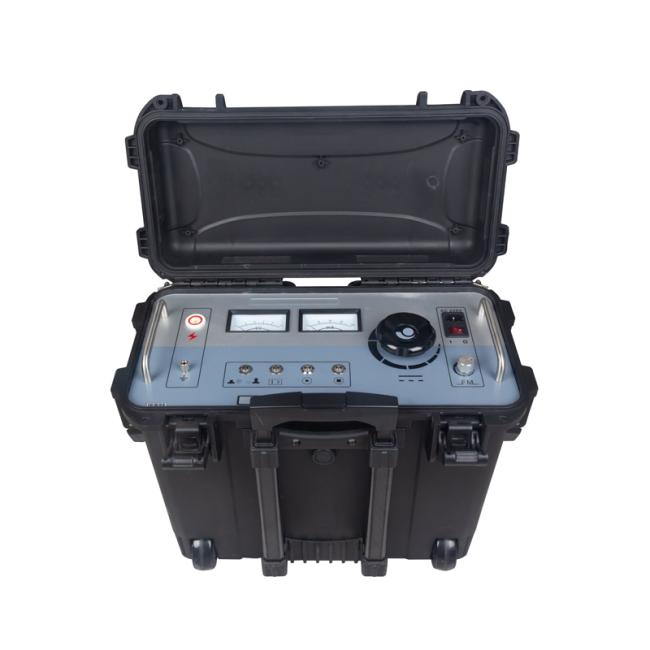

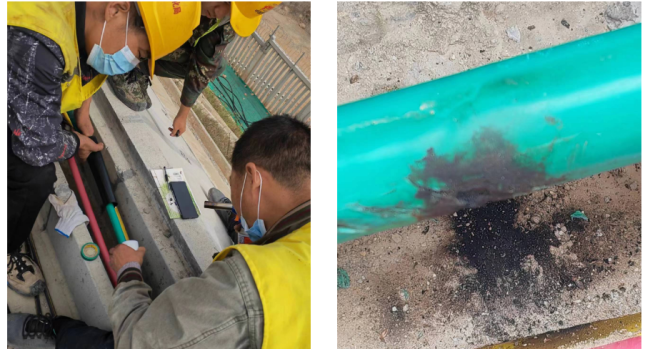

Reliable LV Cable Fault Testing and Locator Equipment Sheath Fault Tester Set
The cable outer sheath fault tester is especially suitable for:
- High-resistance breakdown points of cables after laying, particularly low-resistance linear high-resistance breakdown points such as cable middle joint failures
- Flashover type breakdown points where constant current maintains the arc for stable bridge current
- Low resistance defects that haven't broken down but show insulation weaknesses under operating voltage
Key Features
- Based on MURRAY bridge principle for locating breakdown points and low insulation resistance defects
- High-voltage constant current source with voltage regulator and R-type transformer (5000V no-load, 100mA short-circuit)
- Special double-core high-voltage rubber cable with four-terminal resistance measurement for accuracy
- Low-potential panel operation with insulating rod controls
- Integrated 12806 display with automatic cable length calculation and fault distance measurement
- Compact portable design combining high-voltage source and electric bridge (5.5kg)
- No blind spots compared to wave reflection method, ideal for short cables and end-point breakdowns
Technical Specifications
| Parameter | Value |
|---|---|
| No-load voltage | ≤7500V |
| Short-circuit current | ≥40mA |
| Positioning accuracy | ±(0.1%•L±1)m |
| Weight | 5.5kg |
| Power supply | AC 220V ±10% 50Hz + 9V battery backup |
Advanced Features
- Adjustable output voltage with high accuracy and stability
- High-sensitivity amplifier and galvanometer balance indication
- Zero protection safety feature
- Automatic fault point testing with manual override capability
- Superior to wave reflection method with no blind areas
Detailed Technical Parameters
| Input voltage | AC220V(±10%),50Hz(±2Hz) |
|---|---|
| Output voltage | 0~10kV adjustable |
| Output current | 0~200mA |
| Output capacity | 2kVA |
| Frequency adjustment | 0.2Hz to 5Hz |
| Dimensions | 540L×310W×460H (mm) |
| Weight | 35kg |
