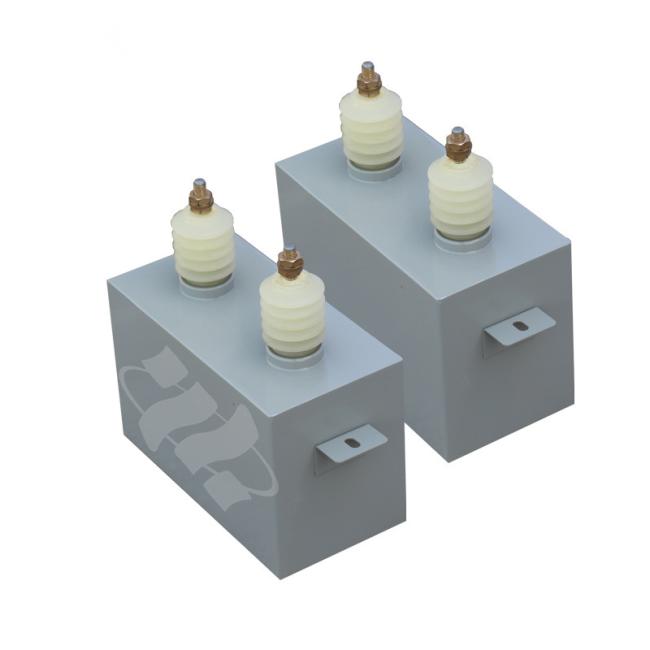

30kv 4UF Rapid-Charge Pulse Capacitor
Price:
Negotiable
MOQ:
1unit
Delivery Time:
5-8 work days
Brand:
XZH Test
Product Description
XHCC-4/30
Product Description
The pulse capacitor is super cool! It takes in energy from a small power supply and holds onto it for a while. Then, when the moment is right, it lets go of all that energy super fast. This creates a powerful burst of current and a lot of energy. It's really useful in high - voltage impulse discharge tests, high - energy physics stuff, oscillation circuits, and even in geological exploration.
Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
- Ambient temperature: -20~+50ºC;
- Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
- Capacitance error: ±5%;
- Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
- Insulation resistance: RC≥7500MΩ·uF;
- Loss: ≤0.01 (1kHz).
Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
