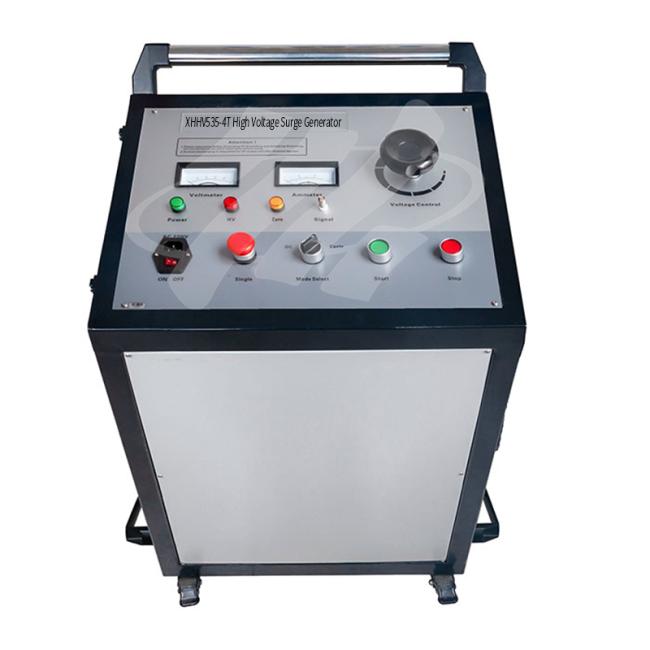

Trolley-mounted High Voltage Surge Generator with Built-in 4μF Capacitor for Underground Cable Fault Detection

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 5-8 work days

Brand: XZH TEST

Product Description

XHHV535-4T

This device is primarily designed for impulse discharge and withstand voltage tests during the fault detection of low and high-voltage cables. As a high-end cart-mounted test instrument, it integrates a DC high-voltage power supply, energy storage capacitors, discharge sphere assembly, automatic discharge unit, and a sampling module for cable fault testers into a single system. It fully addresses the drawbacks of traditional test setups, including inconvenience in operation, poor portability, and insufficient safety and reliability.

Adopting high-precision, high-stability specialized high-voltage electronic components and high-frequency high-voltage technology, the instrument features a simplified overall structure. To align with users’ conventional habits of generating DC high voltage via transformers and operation cabinets, this pulse generator is equipped with a user-friendly operation mode and integrated compact, reliable circuit design. It boasts advantages such as safe and reliable performance and intuitive visual monitoring, and achieves the genuine effect of being damage-proof against impulse impacts. Additionally, it is furnished with functions of automatic timed impulse, manual impulse, and withstand voltage testing.

Recognized as the most user-friendly cart-mounted DC impulse high-voltage equipment available domestically, it serves as an ideal solution for power cable fault detection.

Technical Parameters

Built-in Capacitor	4μF
Discharge Energy	2550J
Impulse High Voltage	0–35kV single range
Impulse Power	2000W
Ambient Temperature	-20～+60℃

Working Principle

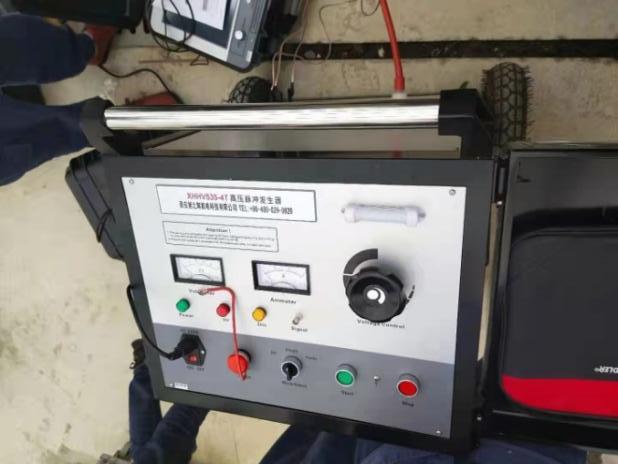

Before using the trolley-type high-voltage pulse generator, select the desired function switch, then press the start button to begin high-voltage boosting. After use, press the stop button, and the internal system will automatically discharge the remaining high voltage from the energy storage device. The workflow diagram is as follows.
