XHHV535-4TS

It is primarily used for impulse discharge and withstand voltage testing during fault testing of low and high voltage cables.

Product Features:

High-voltage pulse output is uniform and controllable;
Features dual 2.5-level pointer meters for current and voltage display, providing a clear and intuitive view of the impulse discharge process;
High-voltage side voltage measurement is real-time and accurate;
Equipped with zero-start protection function, ensuring safety and reliability;
Features three voltage range and capacitance capacity switching functions;

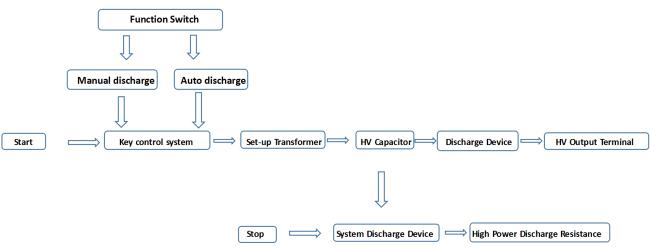

Unique high-voltage measurement design automatically discharges the internal capacitor energy when the device is stopped;
Discharge time can be selected in either timed or manual mode;
Includes DC withstand voltage function;
Internally installed high-precision test cable fault waveform sampling module;
Humanized design with a trolley for easy movement;

Technical Parameters
Impulse High Voltage: 0-32kV, 0-16kV, 0-8kV (three adjustable ranges)
High Voltage Side Current: 0-60mA
High Voltage Accuracy: Class 2.5
Built-in Capacitance: 4μF/32kV, 16μF/16kV, 64μF/8kV (three adjustable ranges)
Discharge Energy: 2048J (for all ranges)
Output Voltage Polarity: Negative polarity
Impulse Time: Automatic impulse approximately 7 seconds, manual impulse with arbitrary time control
Overcurrent Protection: 9A (greater than 5S) on the low voltage side
Over-temperature Protection: 105℃
Maximum Power: 2000W
Operating Power Supply: AC 220V±10% 50Hz±2Hz
Ambient Temperature: -25～+65℃
