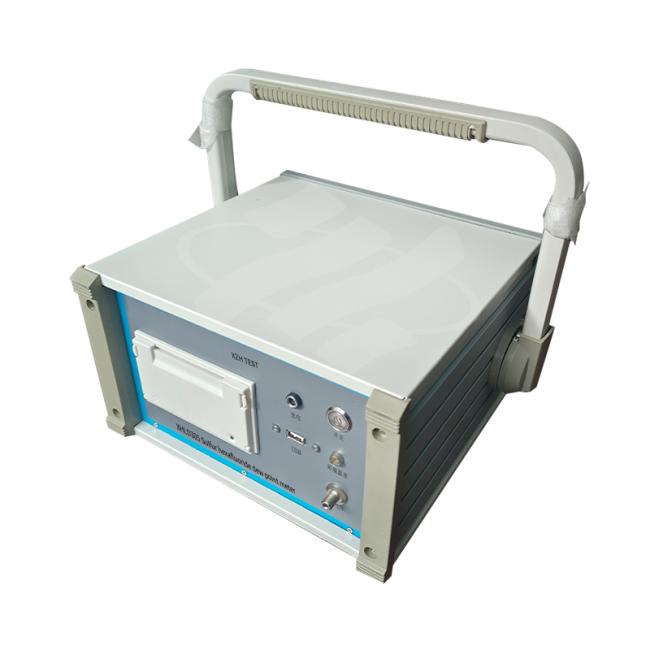

Specialized in testing the dew point parameters of SF₆ gas applied in high-voltage circuit breakers and GIS combined electrical appliances, this instrument features a color LCD screen that clearly shows comprehensive metrics: dew point, micro moisture (ppm), ambient temperature, ambient humidity, time and date.

Performance Features
★ Self-calibration: The sensor probe can automatically calibrate the zero point;
★ Fast and gas-saving: Each SF6 gas dew point measurement takes approximately 5 minutes;
★ Self-locking connector: Uses original German imported self-locking connectors, ensuring no gas leakage;
★ Data storage: Can store 200 sets of test data;
★ Curve function: Large screen displays the dew point measurement process as a curve;
★ RS232 interface: Can be connected to a PC serial port for data transmission;
★ Built-in power supply: Built-in 4Ah rechargeable lithium battery, providing 10 hours of continuous operation.

Technical Parameters

☆ Measurement range: -80 ℃～+20 ℃
☆ Measurement accuracy: ±1.0℃ (-60℃～20℃) / ±2℃ (-80℃～-60℃)
☆ Response time: 63% in 10 seconds, 90% in 240 seconds / 63% in 5 seconds, 90% in 45 seconds
☆ Ambient temperature: -40℃～+60℃  Ambient humidity: 0～100％ RH
