Convenient Surge Arrester Counter Action Tester for Circuit Breaker Analysis
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Product Overview

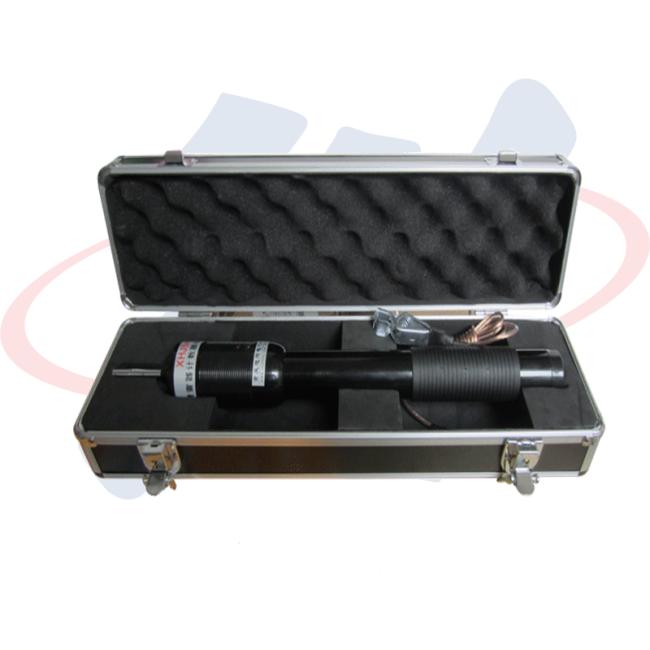

The XHJS401 Arrester Counter Operation Tester is a professional device researched and developed by our technical team to meet the actual needs of power industry users. With its elegant appearance and easy-to-carry, easy-to-operate design, it has completely replaced the outdated, heavy testing equipment and cumbersome testing procedures.
Performance Features
Positioned between the main body and the head of the instrument, the power switch can be rotated 90 degrees in any direction. A distinct "click" sound signifies that the power supply has been activated, while the absence of this sound means the power is off.
Prior to operation, insert the ground wire into the tail socket and ensure a secure connection. Based on the counter's height, extend the telescopic conductive rod on the head to a suitable length before activating the power supply.
When the power is turned on, the green light illuminates; after approximately 3 to 5 seconds, the red light will turn on, indicating that the instrument is ready to test the arrester counter via the telescopic conductive rod.
Repeated testing can be carried out without shutting down the instrument, provided that the conductive rod is moved away from the test object during each charging cycle.
Important Reminder: Upon completion of the test, switch off the power first. Subsequently, discharge the head conductive rod to the tail ground wire before storing the instrument. The device is powered by four No. 1 batteries, enabling over 2000 discharge tests. Insufficient battery power will lead to longer charging time, so batteries must be replaced promptly.
