Independently Developed Surge Arrester Monitor Calibrator for Circuit Breaker Analysis
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Product Overview

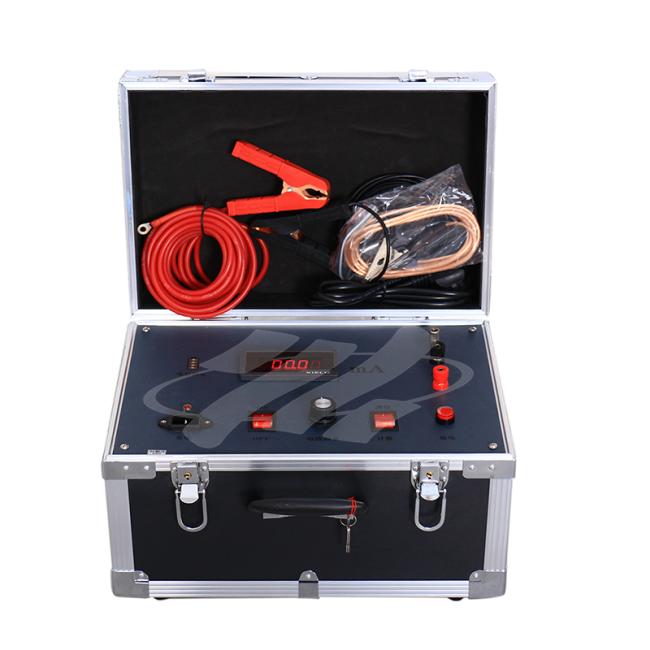

This device is developed to meet the needs of DC arrester monitors in power systems (such as Model JCQ(WZ)-16), and it is mainly used for the calibration of 1000kV-class arrester monitors.
Performance Features
★ Good stability of measured values;
★ Strong anti-interference ability of heterodyne output in online state;
★ Standard sine wave output;
★ Built-in battery for measurement, convenient for on-site use;
Technical Specifications
☆ Power Supply: Built-in 10.4Ah 12V battery
☆ Output Frequency: 55Hz
☆ Output Current: 0-5mA/10mA/30mA (Customizable)
☆ Resolution: 0.001mA
☆ Current Accuracy: 0.5% ± 3 digits
☆ Inrush Current: 50A～100A (Instantaneous)
☆ Inrush Voltage: DC 1500V/1800V
☆ Action Count: 1～2s/time
☆ Number of Actions: Cyclic measurement
