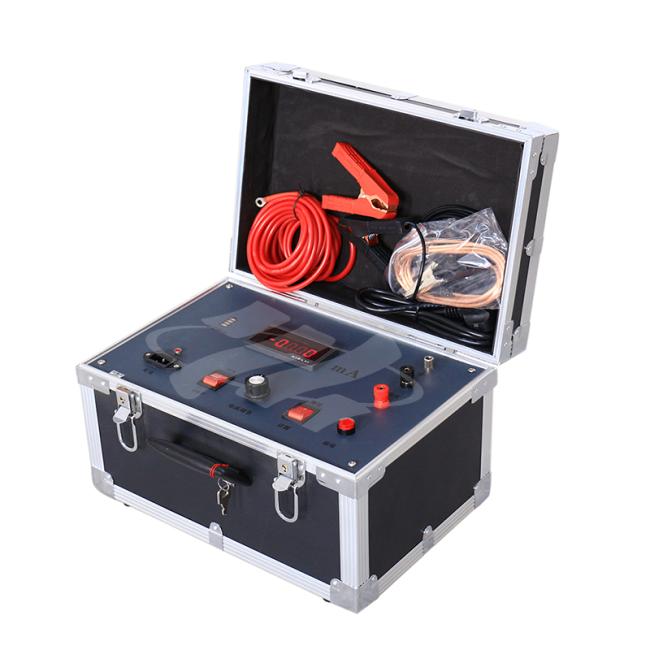

Professional Surge Arrester Monitor Calibrator
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Product Overview
Designed specifically to cater to the requirements of DC arrester monitors (e.g., Model JCQ(WZ)-16) in power systems, this equipment is primarily applied to calibrate arrester monitors of the 1000kV class.
Performance Features
★ The measured values demonstrate excellent stability;
★ In the online state, the heterodyne output possesses high anti-interference performance;
★ It outputs standard sine waves;
★ Equipped with a built-in battery for measurement, it facilitates easy on-site operation;
Technical Specifications
☆ Power Supply: Built-in 10.4Ah 12V battery
☆ Output Frequency: 55Hz
☆ Output Current: 0-5mA/10mA/30mA (Customizable)
☆ Resolution: 0.001mA
☆ Current Accuracy: 0.5% ± 3 digits
☆ Inrush Current: 50A～100A (Instantaneous)
☆ Inrush Voltage: DC 1500V/1800V
☆ Action Count: 1～2s/time
☆ Number of Actions: Cyclic measurement
