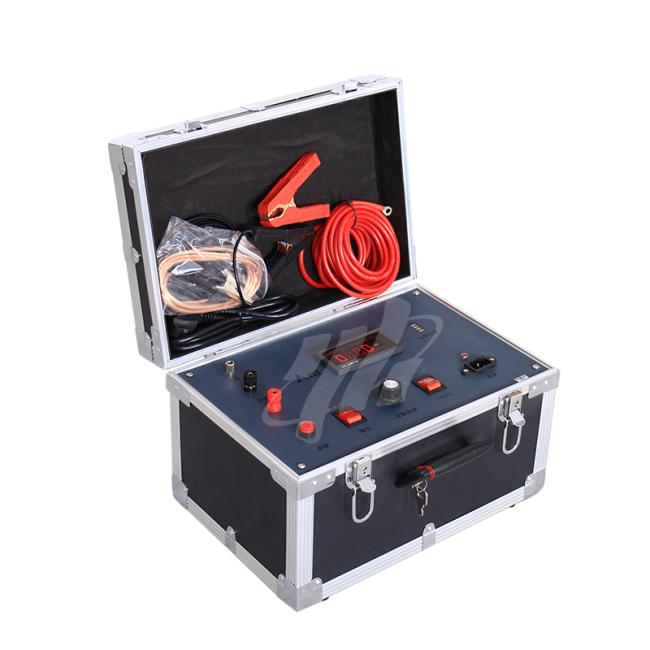

Portable Surge Arrester Monitor Calibrator
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Product Overview
To address the demands of DC arrester monitors in power systems, such as Model JCQ(WZ)-16, this device has been researched and developed, which is mainly dedicated to the calibration work of 1000kV-class arrester monitors.
Performance Features
★ High stability is achieved in measured data;
★ When the heterodyne output is in the online mode, it has strong resistance to interference;
★ Standard sine wave is provided as the output signal;
★ Measurement can be performed with its built-in battery, making it convenient to use on site;
Technical Specifications
☆ Power Supply: Built-in 10.4Ah 12V battery
☆ Output Frequency: 55Hz
☆ Output Current: 0-5mA/10mA/30mA (Customizable)
☆ Resolution: 0.001mA
☆ Current Accuracy: 0.5% ± 3 digits
☆ Inrush Current: 50A～100A (Instantaneous)
☆ Inrush Voltage: DC 1500V/1800V
☆ Action Count: 1～2s/time
☆ Number of Actions: Cyclic measurement
