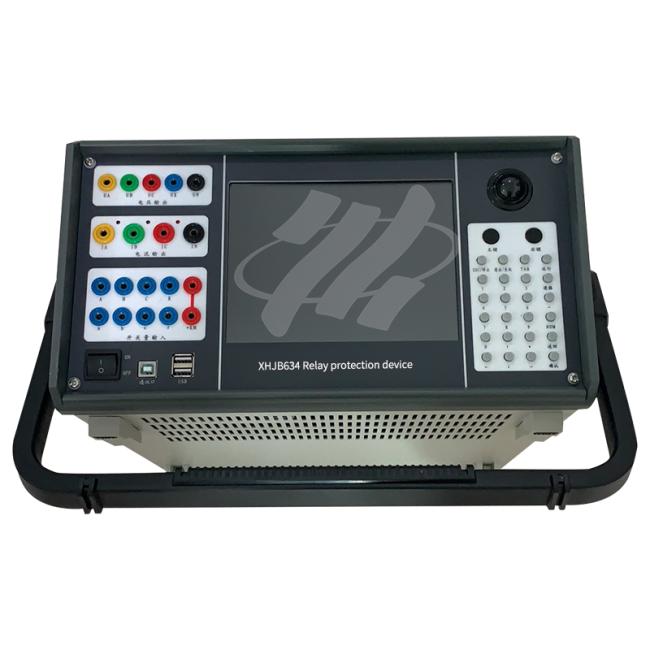

Technical Parameters

★ AC Current Source: Single Phase: 3×40A Three Phase: 120A Power: ≥450VA/phase

★ Output Time: 0～10A Continuous, 10～20A ≥60 seconds, >20A ≥10 seconds

★ AC Voltage Source: Single Phase: 4×120V Power: ≥60VA/phase

★ DC Current Source: Single Phase: -10A～+10A Maximum Output Power: ≥200VA

★ DC Voltage Source: Single Phase: -150V～+150V Maximum Output Power: ≥100VA

★ AC Source Angle: Phase Angle: 0°～360° Accuracy: ±0.2°

★ AC Source Frequency: Frequency: 1～2000Hz Frequency Resolution: 1mHz

★ Harmonic Output: Capable of outputting harmonics of any amplitude from the 2nd to the 40th order

★ Synchronization: Voltage and current synchronization ≤10μS

★ Input: 8 channels compatible with 15V～250V active contacts, automatically identifies active contact polarity

★ Timing accuracy: ≤1ms when less than 1s

★ Output: 4 pairs of programmable switch dry contacts, capacity: AC/DC 250V, 0.5A

★ Power supply: 220V±10% 50Hz±10%
