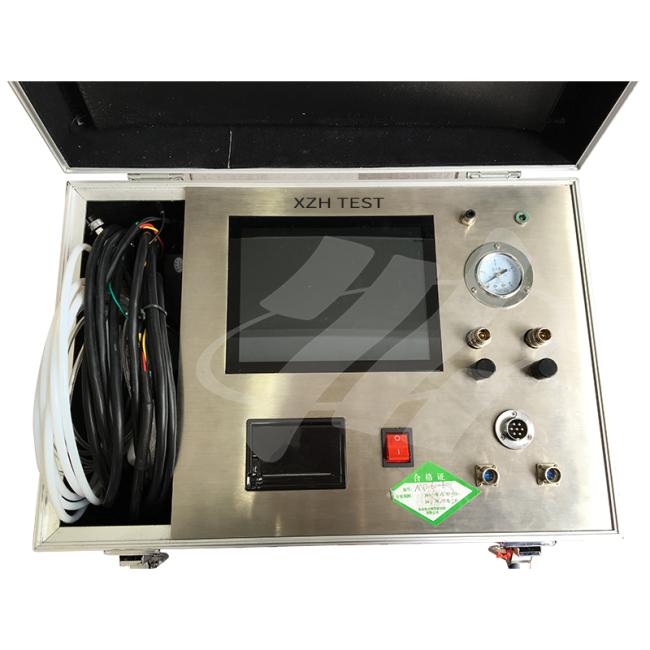

SF6 Density Relay Tester with Color LCD
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Product Overview
The XHJB600 SF6 Gas Density Relay Calibrator is a portable calibrator used for the standard conversion of SF6 gas pressure. It can also automatically calibrate SF6 density meters and pressure gauges.
Features
- 3.5-inch color LCD display with Chinese user interface for easy operation.
- Displays real-time pressure, pressure converted to 20℃, and ambient temperature.
- Stores up to 100 groups of measurement data with non-volatile memory.
- Equipped with RS-232 interface for data upload to a PC.
- Quick-connect fittings for instrument piping, ensuring convenience and low leakage rate.
- Self-calibration function for periodic correction after long-term use.
- Adopts high-precision pressure sensor and magnetic fluid technology.
![]()
Technical Parameters
- Measuring range: 0～1.000 MPa; Accuracy: 0.25 class
- Pressure resolution: 0.001 MPa
- Temperature range: -20℃～60℃; Resolution: 0.1℃
- Power supply: AC 220V±10% 50Hz; DC 12V/1.5A
