Ground Tester with 10A Auto-switching & LCD Display
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Product Overview

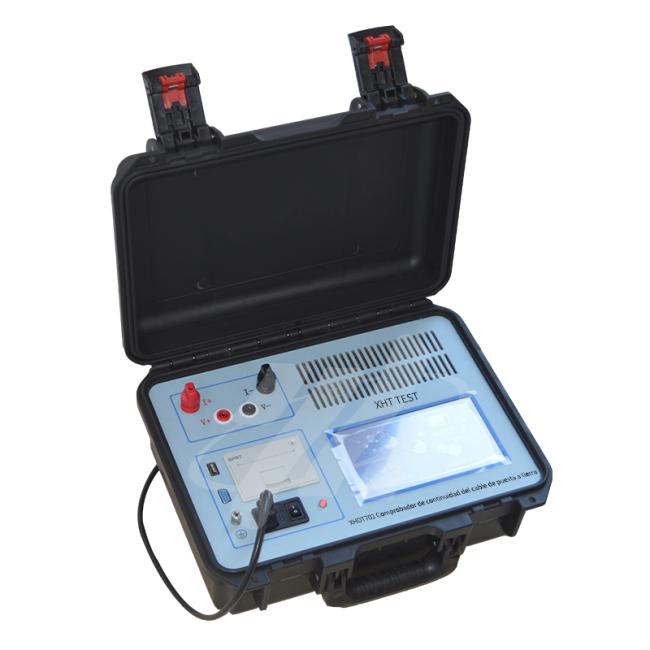

XHDT702 Grounding Downlead Continuity Tester is applicable for measuring the continuity resistance between grounding downleads of substation power equipment and ground grid (or adjacent equipment).
Performance Features
-
Controlled by a high-speed single-chip microcomputer, with high automation and easy operation.
-
Adopts power supply technology, with multiple current gears and wide measurement range.
-
Intelligent power management technology is adopted.
-
320X240 dot-matrix 65K true-color LCD with ultra-small pixels, clear display in strong light.
-
Built-in power-off storage, capable of storing 1000 groups of test data for random query.
- Built-in lithium battery and charger for convenient operation.
![]()
Technical Specifications
★ Output Current: 10A, 1A Auto-switching
★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω
★ Resolution: 0.1μΩ
★ Accuracy: ±(0.2% of reading + 2 digits)
★ Power Supply: AC 220V±10% 50Hz±1Hz
★ Ambient Temperature: -10～50℃
★ Ambient Humidity: ≤90%RH
