Portable Digital Grounding Tester Simple to Operate
Price:
Negotiable
MOQ:
1set
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Product Overview

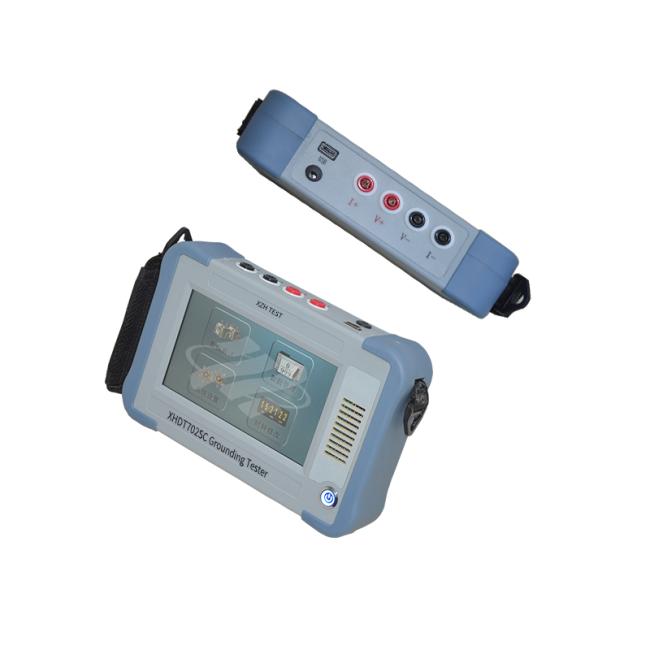

XHDT702SC Grounding Downlead Continuity Tester is used to measure the continuity resistance between the grounding downleads of substation power equipment and the ground grid or adjacent equipment.
Performance Features
-
High-speed single-chip microcomputer control ensures high automation and easy operation, suitable for on-site quick testing.
-
Power supply technology supports multiple current gears and a wide measurement range, adapting to different on-site testing scenarios.
-
Intelligent power management helps save energy and maintain stable instrument performance.
-
320X240 dot-matrix 65K true-color LCD with ultra-small pixels ensures clear data display in strong light.
-
Power-off storage function can save 1000 groups of test data, available for query anytime.
-
Built-in lithium battery and charger make on-site operation more convenient without external power supply.
Technical Specifications
★ Output Current: 10A, 1A Auto-switching
★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω
★ Resolution: 0.1μΩ
★ Accuracy: ±(0.2% of reading + 2 digits)
★ Power Supply: AC 220V±10% 50Hz±1Hz
★ Ambient Temperature: -10～50℃
★ Ambient Humidity: ≤90%RH
