Portable Single Phase DC Resistance Tester for Transformer Motor Coil Testing

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 8-10 days

Brand: XZH TEST

Product Description

Product Introduction

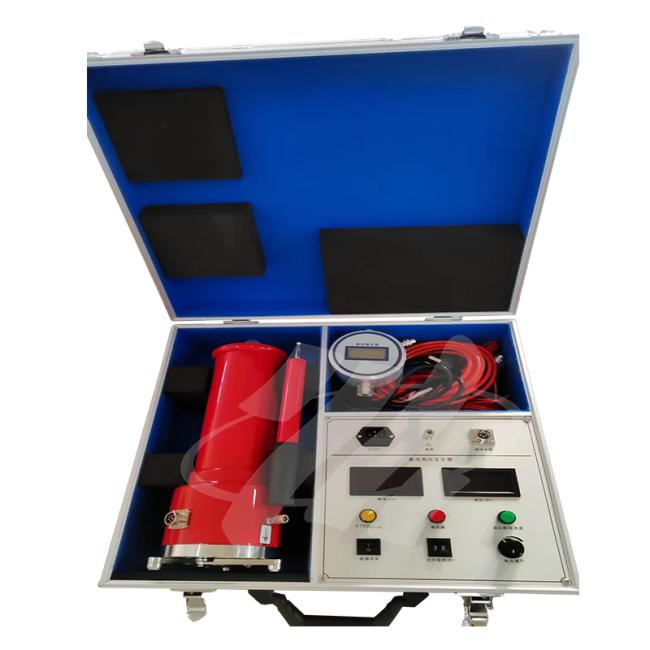

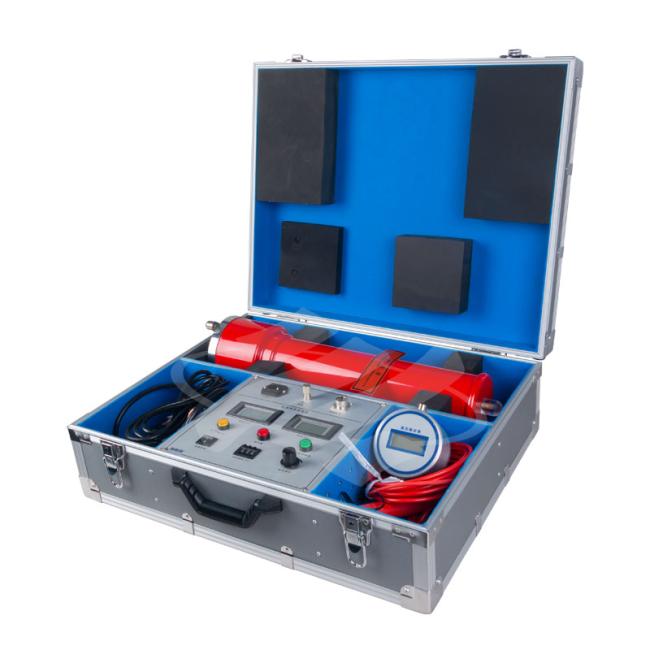

Developed exclusively for power engineering, XHZG series DC high voltage tester performs DC voltage withstand and leakage current tests on surge arresters, power cables, transformers, breakers, generators and other high voltage devices. It is essential equipment for power insulation inspection and routine preventive maintenance.

Key Advantages

Equipped with IF voltage multiplier circuit, PWM modulation and high-power IGBT modules for stable and high-efficiency operation.
Advanced voltage feedback design keeps steady output voltage, ripple coefficient controlled within 1%.
Stepless full-range voltage adjustment, test precision up to 0.5% and stability within 1%.
Smooth zero voltage start design plus independent 0.75UDC1mA function button, simple to operate and high in control accuracy.
Easy DIP code overvoltage protection setting with ±1% error, effectively avoiding equipment damage.

Technical Specifications

Output Voltage	60kV
Output Current	5mA
Output Power	120W
Voltage & Current Test Error	0.2% full scale ±1 digit
Overcurrent & Overvoltage Protection	AI optimized setting, error ≤0.2%
1mA Reference Switch Precision	≤1.0%, perfect for arrester testing
Max Ripple Factor	≤0.2%
Continuous Working Time	30min at rated load, 10min at 110% rated voltage
Ambient Condition	-10℃~40℃, humidity ≤85% non-condensing, altitude below 1500m
Application Feature	Suitable for capacitive loads, applicable to tested products of any capacitance
