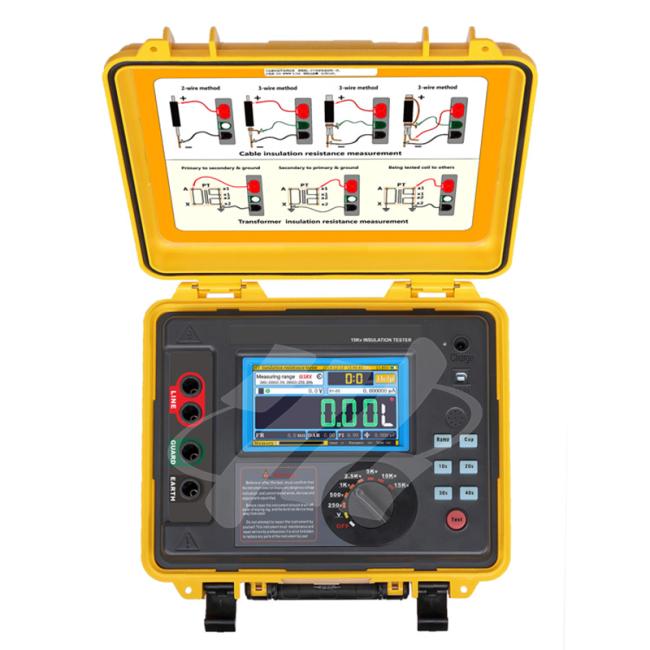

Portable High Voltage Megohmmeter Digital Megger for Cable & Motor Insulation Test

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 8-10 days

Brand: XZH TEST

Product Description

Product Overview

This instrument is designed for measuring the resistance values of various insulating materials, as well as the insulation resistance of transformers, motors, cables, and other electrical equipment. Additionally, it features a step-voltage adjustment function, enabling it to output multiple distinct voltage levels (for instance, the 15kV model can generate a 12kV output, thereby offering a wider range of application).

Includes protection functions for short circuits, overloads, low battery voltage, etc.
Supports Insulation Testing, Absorption Ratio, Polarization Index, and Quick Test modes.
Displays residual voltage upon completion of testing.
The instrument automatically powers off after 10 minutes of inactivity.

Technical Specifications

Measurement Range: 0–500 / 1000 / 2000 GΩ
Accuracy: ±5 / 20 / 30% rdg ±5% dgt
Operating Voltage: AC 140–240V / 50Hz; DC 16.8V

Detailed Specifications

Parameter	Value	Resolution
Functions	Insulation Resistance Testing, Voltage Testing, DC Current Testing, Capacitance Testing	-
Reference Conditions	23°C ± 5°C, ≤ 75% RH	-
Rated Voltage (Set 1)	100V, 250V, 500V, 1000V, 2500V, 5000V	-
Insulation Resistance Range (Set 1)	0.01 MΩ – 10 TΩ	0.01 MΩ
Rated Voltage (Set 2)	250V, 500V, 1000V, 2500V, 5000V, 10 kV	-
Insulation Resistance Range (Set 2)	0.01 MΩ – 35 TΩ	0.01 MΩ
Rated Voltage (Set 3)	500V, 1000V, 2500V, 5000V, 10 kV, 15 kV	-
Insulation Resistance Range (Set 3)	0.01 MΩ – 50 TΩ	0.01 MΩ
Measurement Voltage (V)	Rated Voltage × (1 ± 10%)	-
DC Voltage Range	0 – 1000 V	0.1 V
AC Voltage Range	0 – 750 V	0.1 V
DC Current	0.1 nA – 6 mA	0.1 nA
Capacitance	10 nF – 50 μF	10 nF
