Tomato Washing Machine With Water Filtration System 304 Stainelss Steel Material
automatic front loading washing machine tomato washing machine

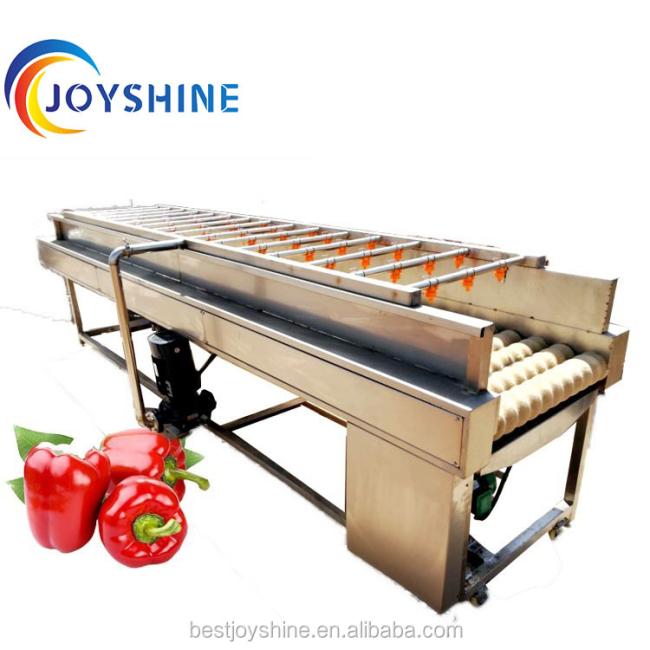

The description of tomato washing machine
| 1 | The bubble type washing machine with top water spraying for various fruits and vegetables is designed for the raw material for different shapes. |
| 2 | High airflow mixed water washes the raw material to avoid colliding with each other. The materials are washed by the high pressure water, intensity, high effectively, and continuous operations. |
| 3 | It is an indispensable washing device for the fruit and vegetable or seafood processing before quick freezing. |
| 4 | Complete unit is made of 304 stainless steel, Portion water recycling and stepless speed regulation. |

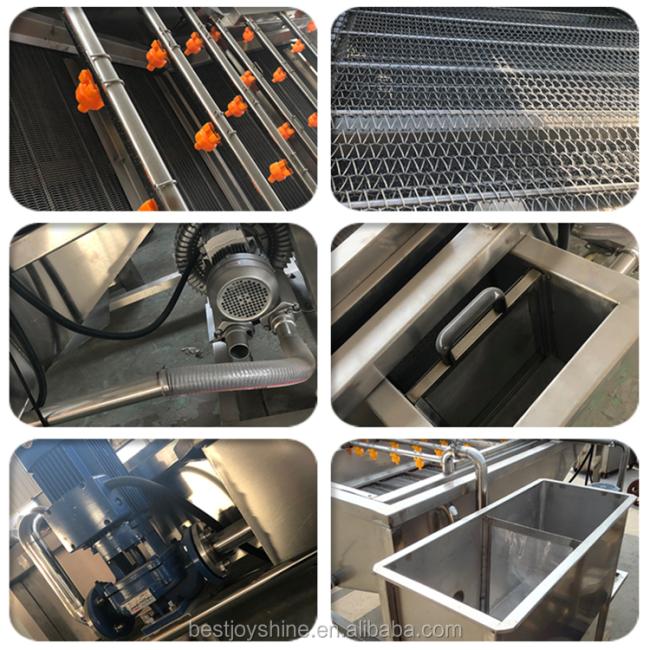

Material Description of tomato washing machine
| 1 | The whole machine is made of 304 stainless steel. |
| 2 | The tank is made of the stainless plate of high quality with the thickness of 1.5mm |

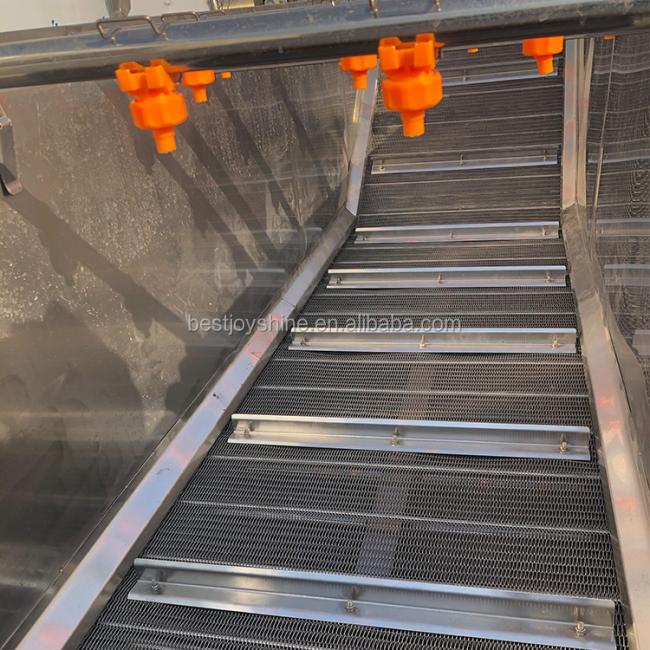

| 3 | Conveyor belt is made of stainless chain and stainless mesh belt |
| 4 | Protect plate is made of the stainless plate and punching plate with the thickness of 1.5mm |
| 5 | Frame is made of 50*50*1.5 and 40*40*1.5 stainless square pipe |
The parameter of tomato washing machine
| Model | Dimension | Weight | Power | Capacity |
| JS-QPQX-2500 | 2500*1200*1300mm | 180kg | 3.75kw | 500kg/h |
| JS-QPQX-4000 | 4000*1200*1300mm | 400kg | 4.1kw | 800kg/h |
| JS-QPQX-5000 | 5000*1200*1300mm | 500kg | 5.1kw | 1500kg/h |
| JS-QPQX-6000 | 6000*1200*1300mm | 600kg | 5.5kw |
2000kg/h |
| 1 | After fruits and vegetables are moved into the machine and bubble makes the water keep rolling in the pool. |
| 2 | It can be immersion cleaning thoroughly for them; of course use of the rinsing-water circulation is obviously better. After that fruits will be moved to the next step by the lifting device of itself. |
| 3 | With the stage hoist have spray pump cleaning of piping as well as convenient and practical operation. |
| 4 | Welding machine frame is durable,stable operation,no noise and trouble. |

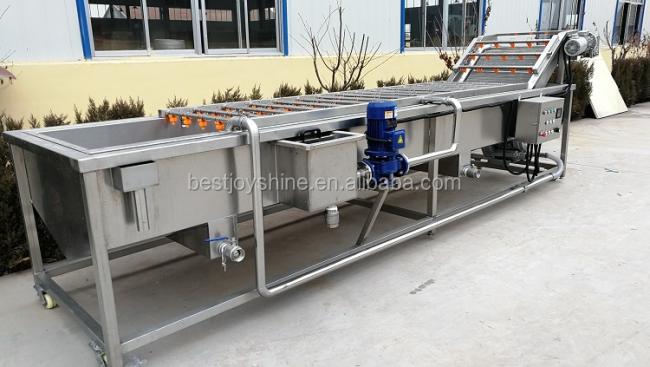

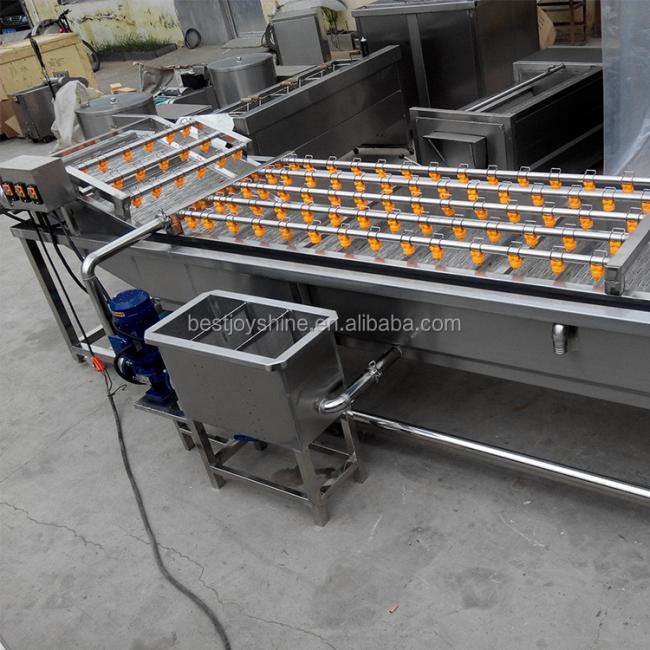

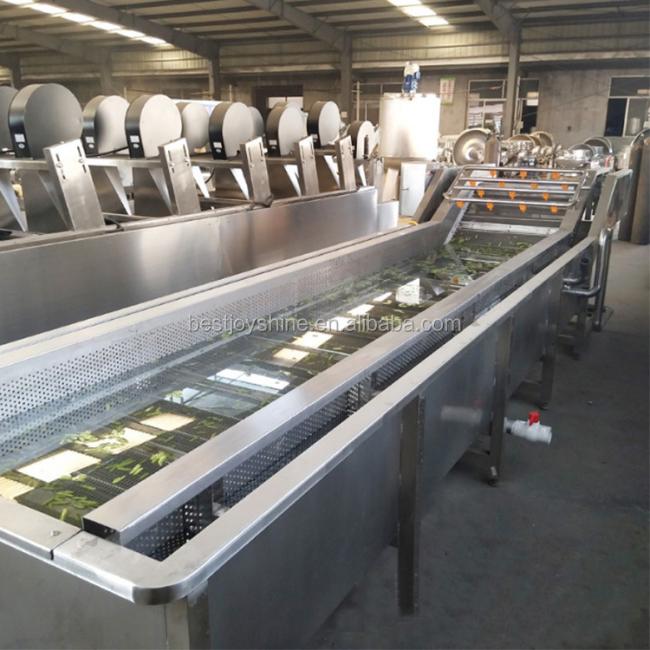

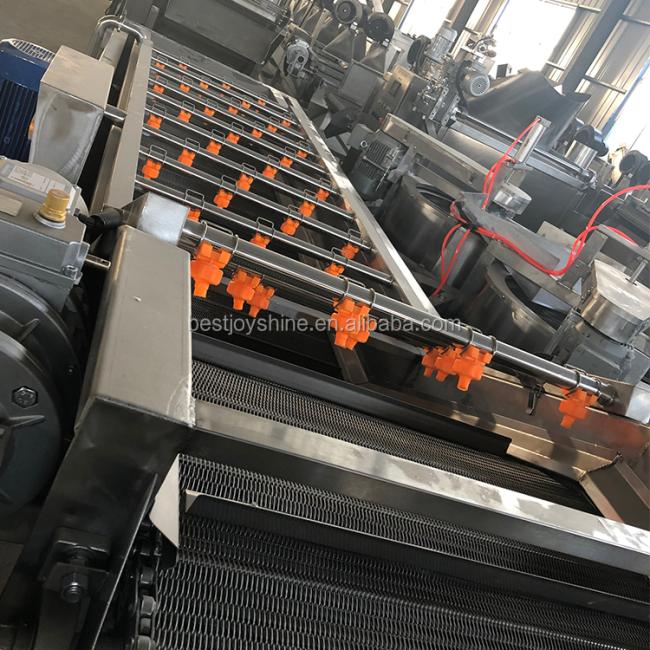

The showcase of tomato washing machine
Joyshine machinery factory is located in Zhengzhou City in Henan Province, which is one of the most famous industrial city in China. During last 5 years we are mainly engaged in food machinery. We are able to manufacture and supply meat processing machinery, fish processing machinery, fruit and vegetable processing machinery, poultry processing machinery, etc.

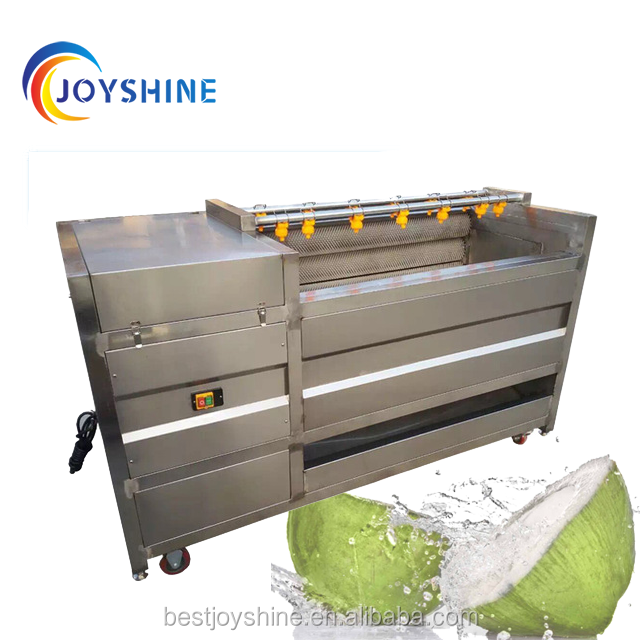

We are maufacturing brush type washing machine, you can choose soft brush or hard brush to wash or peel different raw material,
Our types washing machines all can wash kinds of fruits and vegetables, they are multifunctional.
Washing capacity can be customized. If you are interested in them, please send Email or WhatsApp +86 18203653708 me.
