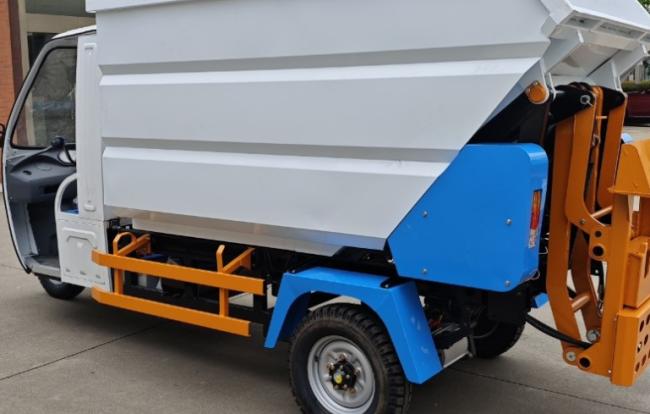

Electric Garbage Cart Residential Communities Reasonable Compact Pure Electric Drive
New Energy Electric Three-Wheeled Rear Bucket Truck SKHG3700-A
This pure electric sanitation vehicle features an optimized rear-loading compression design for efficient urban garbage collection. The stainless steel lightweight body ensures large capacity and leak-proof transport, while hydraulic automation enables hands-free bin docking, lifting, and dumping of standard 120L/240L trash cans.
Constructed with automotive-grade ST16 cab panels for durability, the truck operates via stepless electric drive with integrated differential transmission, delivering quiet, maintenance-free performance. The energy-efficient hydraulic system prevents secondary pollution during waste handling, making it ideal for streets, communities, and public spaces.
| product name | Electric three-wheeled rear bucket truck |
| Length × width × height | 4150×1500×2100(mm) |
| curb weight | 1260(Kg) |
| Box volume | 2.8m³ |
| rated load | 1000(Kg) |
| endurance mileage | ≥60(Km) |
| maximum speed | 30(Km/h) |
| wheel base | 2810(mm) |
| Maximum Angle of climb | 15° |
| Rated occupant | 1 person |
| electrical machinery | High torque brushless motor 72V4000W |
| electronic control | Intelligent controller 72V350A |
| battery | Lead-acid maintenance battery 12V120AH |
| charger | Smart charger 72V15A |
| charging time | Charge 6-8 hours |
| Lights and signals | LED running light, near and far light, turn signal, LCD instrument, electric horn, reversing voice, work warning light. |
| hoisting appliance | Pump valve connected, linkage work; 1000W power |
| hang |
Front suspension: steel hydraulic rod, coil spring shock absorber; Rear suspension: main pay steel plate; Non-independent suspension |
| rear axle | Integrated gearbox drive |
| tyre | Front: 450-12 Rear: 500-12 |
| braking | Foot mechanical connecting rod drum brake; Manual mechanical parking; Rear wheel action |
| cab | Die stamping molding, ST16 material. Double sheet metal welding, integral back. |
