4×2 Drive Wheel Color Customizable Heavy Duty Trailer Fuel Tank Kit 31-40t Load Capacity
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
1. Definition of Tractor
A tractor is a powerhouse of versatility and durability, engineered to tow vehicles and equipment for road transport. Equipped with multiple wheels and axles, it is indispensable for heavy transport tasks. From hauling semi-trailers and luxury yachts to heavy construction apparatus, its pivotal role in heavy-duty logistics is unmatched.
2. The Structure of the Tractor
A tractor integrates several crucial components: the engine, transmission, tires, and frame. For superior performance and control, it includes additional features such as tow hooks, locking systems, and remote controls. These elements combined ensure optimal functionality and high operational efficiency.
3. Tractor Application Field
1. Transportation: Tractors are vital in long-haul freight, towing semi-trailers and large trucks to guarantee the safe and efficient delivery of goods over extended distances.
2. Construction Field: Essential in construction, tractors tow heavy equipment like excavators, bulldozers, and cranes to job sites, ensuring smooth and efficient project execution.
Basic Info.
| Horsepower | 350-550hp | Engine Capacity | >8L | |
| Tire Design | Radial | Condition | New | |
| Usage | Towing Semi Trailer | Fuel Tank | 400L, 600L, 1000L | |
| Driver Seat | Air Suspension Seat | Transport Package | Nude Packing | |
| Trademark | SINOTRUK HOWO | Production Capacity | 1000 |
Main Specifications:

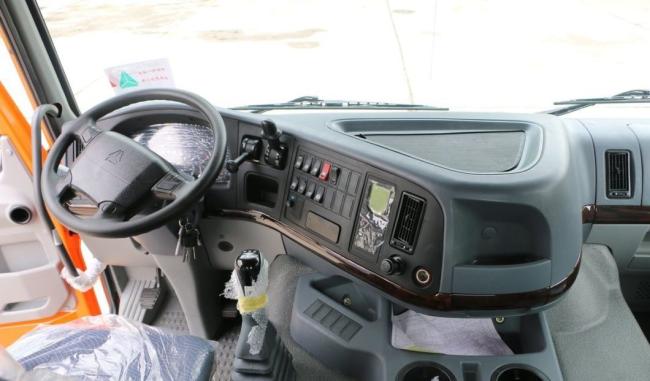

Driver's Cab(One sleeper with A/C for utmost comfort)
| Model | H7 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO II |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 371hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| Type | Heavy duty, manual fuller type | ||||||||||||||||
| Model | HW19710 | ||||||||||||||||
| No of speeds | 10 forward + 2 reverse | ||||||||||||||||
| Model | Torque(Nm) | Gear Ratios | Oiling (L) | ||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | ||||||
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |||
Front Axle
| Type | HF7 tons steering with double T-cross section beam |
| Capacity | 7000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer , 1739mm |
Air In-take System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4600mm+1350 |
| Overall length | 6875mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Our Factory
Shipment
We predominantly ship our trucks using RO-RO vessels or bulk vessels. For enhanced protection and efficiency, specialized containers are also employed, ensuring your purchase arrives safely and on time.
Original Spare Parts
We offer genuine spare parts, backed by an extensive after-sales service system. Our After-market Division ensures exceptional service with a streamlined supply chain for swift parts delivery.
Our Product
Thanks for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machinery are available in stock and can be dispatched within 7 days. For custom orders, the production period is approximately 30 days.
Q: How many units of trucks do you produce per year?
A: We manufacture nearly 30,000 units annually, with a monthly update of about 5,000 units.
Q: How do you control the quality of your products?
A: Our factory is equipped with a standard production workshop and skilled workforce. Every product undergoes a stringent inspection process, and trucks and machinery are reconditioned professionally to ensure superior quality.
Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Yes, custom orders are welcome. Our minimum order quantity (MOQ) is just 1 unit.
Q: How about the delivery time?
A: Most of our trucks and machinery are available in stock and can be dispatched within 7 days. For custom orders, the production period is approximately 30 days.
Q: How many units of trucks do you produce per year?
A: We manufacture nearly 30,000 units annually, with a monthly update of about 5,000 units.
Q: How do you control the quality of your products?
A: Our factory is equipped with a standard production workshop and skilled workforce. Every product undergoes a stringent inspection process, and trucks and machinery are reconditioned professionally to ensure superior quality.
Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Yes, custom orders are welcome. Our minimum order quantity (MOQ) is just 1 unit.
