Sturdy Heavy Duty Delongx3000 Dump Truck with Air Suspension Seat and 6×4 Drive Wheel
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
1. Definition of Tractor
A tractor is a versatile light truck designed to tow other vehicles or objects on the road. Typically equipped with one or more pairs of wheels and axles, it is essential for pulling vehicles such as semi-trailers, luxury yachts, and construction equipment. This makes it an indispensable component of heavy transport solutions.
2. The Structure of the Tractor
A tractor generally comprises key parts: engine, transmission, tires, and frame. It may also include various additional devices like tow hooks, locking systems, and remote controls for enhanced operation and control.
3. Tractor Application Fields
1. Transportation: In the long-distance freight industry, the tractor is a crucial tool. It tows semi-trailers and large trucks, ensuring the safe and efficient delivery of goods to their destinations.
2. Construction: The tractor is invaluable in the construction sector, towing equipment such as excavators, bulldozers, and cranes to job sites, facilitating smooth and timely construction operations.
1. Definition of Tractor
A tractor is a versatile light truck designed to tow other vehicles or objects on the road. Typically equipped with one or more pairs of wheels and axles, it is essential for pulling vehicles such as semi-trailers, luxury yachts, and construction equipment. This makes it an indispensable component of heavy transport solutions.
2. The Structure of the Tractor
A tractor generally comprises key parts: engine, transmission, tires, and frame. It may also include various additional devices like tow hooks, locking systems, and remote controls for enhanced operation and control.
3. Tractor Application Fields
1. Transportation: In the long-distance freight industry, the tractor is a crucial tool. It tows semi-trailers and large trucks, ensuring the safe and efficient delivery of goods to their destinations.
2. Construction: The tractor is invaluable in the construction sector, towing equipment such as excavators, bulldozers, and cranes to job sites, facilitating smooth and timely construction operations.
Basic Info.
| Horsepower | 251-350hp | Engine Capacity | >8L | |
| Tire Design | Radial | Condition | New | |
| Usage | Towing Semi Trailer | Fuel Tank | 400L, 600L, 1000L | |
| Driver Seat | Air Suspension Seat | Transport Package | Nude Packing | |
| Trademark | SINOTRUK HOWO | Production Capacity | 1000 |
Main Specifications:

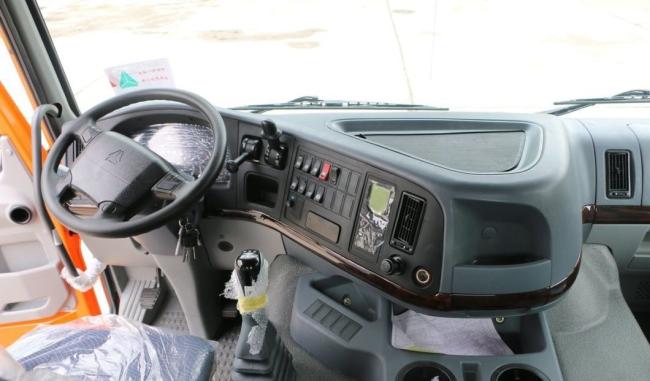

Driver's Cab(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO II |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 371hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| Type | Heavy duty, manual fuller type | ||||||||||||||||
| Model | HW19710 | ||||||||||||||||
| No of speeds | 10 forward + 2 reverse | ||||||||||||||||
| Model | Torque(Nm) | Gear Ratios | Oiling (L) | ||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | ||||||
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |||
Front Axle
| Type | HF7 tons steering with double T-cross section beam |
| Capacity | 7000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer , 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4600mm+1350 |
| Overall length | 6875mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Our Factory
Shipment
We typically ship trucks by RO-RO vessel or bulk vessel, but can also accommodate shipping via special containers.
Original Spare Parts
We provide original spare parts supported by a comprehensive after-sales service system. Our After-market Division ensures excellent service and uses a streamlined supply chain for rapid parts delivery.
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machines are in stock, allowing for delivery within 7 days. For specially ordered items, production typically takes around 30 days.
Q: How many units of trucks do you produce annually?
A: We produce nearly 30,000 units per year, updating almost 5,000 units each month.
Q: How do you ensure product quality?
A: Our factory features a standard production workshop and well-trained workers. Every product undergoes a rigorous inspection process, and we recondition our trucks and machines on a professional line.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders, and our Minimum Order Quantity (MOQ) is 1 unit.
Q: How about the delivery time?
A: Most of our trucks and machines are in stock, allowing for delivery within 7 days. For specially ordered items, production typically takes around 30 days.
Q: How many units of trucks do you produce annually?
A: We produce nearly 30,000 units per year, updating almost 5,000 units each month.
Q: How do you ensure product quality?
A: Our factory features a standard production workshop and well-trained workers. Every product undergoes a rigorous inspection process, and we recondition our trucks and machines on a professional line.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders, and our Minimum Order Quantity (MOQ) is 1 unit.
