Tx7 Heavy Duty Tractor Trailer Truck with Power Assistance and Hydraulic Steering
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Parameter Configuration
Basic Information
engine
Gearbox parameters
Cab parameters
tank
Chassis
tire
|
|
|
|
|
|
|
Product Use
1. Definition of TractorA tractor is a highly adaptable light truck designed for towing a variety of vehicles or objects on the road. Typically equipped with multiple pairs of wheels and axles, this essential piece of machinery is paramount for towing vehicles such as semi-trailers, luxury yachts, and heavy construction equipment, establishing itself as a cornerstone in the realm of heavy transportation.
2. The Structure of the Tractor
A tractor is generally composed of the following key components: engine, transmission, tires, and frame. Additionally, it can be outfitted with an array of sophisticated devices such as tow hooks, locking systems, and remote controls, all meticulously designed to optimize operational efficiency and control.
3. Tractor Application Field
1. Transportation: Tractors serve as a vital element in the long-distance freight industry. They are used for towing semi-trailers and other sizeable vehicles, ensuring the safe and secure delivery of goods to their final destinations.
2. Construction: Tractors are essential in the construction sector, utilized for towing a wide range of heavy construction equipment such as excavators, bulldozers, and cranes to various job sites.
Basic Info.
Main Specifications:

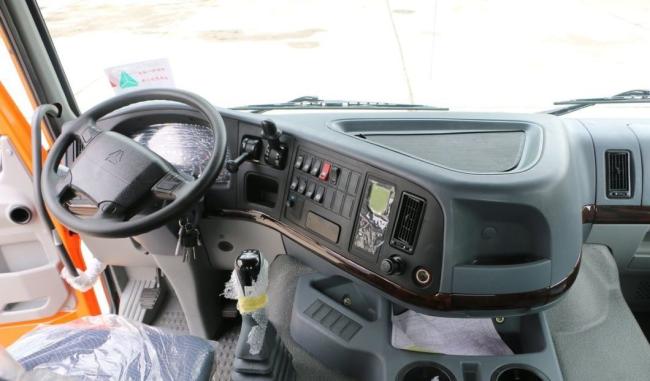

Driver's Cab(One sleeper with A/C)
| Model | H0W0 MAX 460 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SHACMAN |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO 6 |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 371hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| Type | Heavy duty, manual fuller type | ||||||||||||||||
| Model | HW19710 | ||||||||||||||||
| No of speeds | 10 forward + 2 reverse | ||||||||||||||||
| Model | Torque(Nm) | Gear Ratios | Oiling (L) | ||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | ||||||
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |||
Front Axle
| Type | HF7 tons steering with double T-cross section beam |
| Capacity | 7000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |

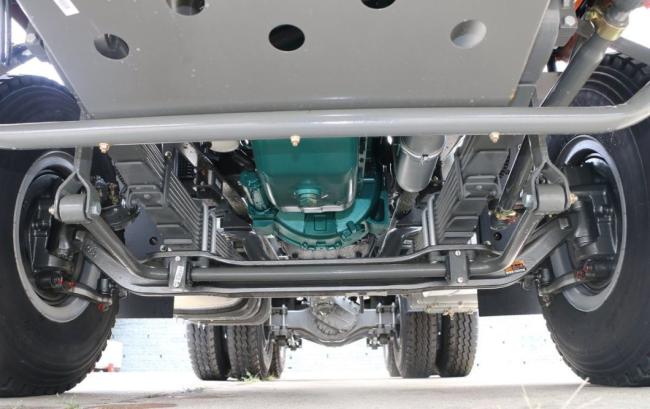

Chassis
| Frame | Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer , 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tires
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4600mm+1350 |
| Overall length | 6875mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Our Factory
Shipment
We typically ship the trucks via RO-RO vessel or bulk vessel, with special container shipping options also available.
Original Spare Parts
We provide genuine spare parts and an excellent after-sales service system. Our After-market Division guarantees rapid parts delivery through an efficient supply chain.
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machinery are in stock and can be dispatched within 7 days. Special orders typically require approximately 30 days for production.
Q: How many units of trucks do you produce per year?
A: We manufacture nearly 30,000 units annually, with around 5,000 units updated each month.
Q: How do you control the quality of your products?
A: Our factory operates a standardized production workshop with highly skilled workers. Each product undergoes a thorough inspection process, and our trucks and machinery are professionally reconditioned to meet stringent quality standards.
Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Yes, we accept custom orders, and our MOQ is 1 unit.
Q: How about the delivery time?
A: Most of our trucks and machinery are in stock and can be dispatched within 7 days. Special orders typically require approximately 30 days for production.
Q: How many units of trucks do you produce per year?
A: We manufacture nearly 30,000 units annually, with around 5,000 units updated each month.
Q: How do you control the quality of your products?
A: Our factory operates a standardized production workshop with highly skilled workers. Each product undergoes a thorough inspection process, and our trucks and machinery are professionally reconditioned to meet stringent quality standards.
Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Yes, we accept custom orders, and our MOQ is 1 unit.
