371HP HOWO Diesel Heavy Duty Self Dumping Transport Truck with Hydraulic Steering
Experience the unyielding power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Crafted for optimal performance, this powerhouse features an impressive 18-25cbm capacity, effortlessly meeting the demands of any heavy-duty application. Carefully engineered to perfection, it exemplifies strength, durability, and efficiency, setting a new benchmark in the realm of heavy-duty transportation.
Product Description
Our adaptable Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously engineered to meet all your heavy-duty hauling needs. Whether transporting earth, gravel, or bulk materials, this truck excels in performance and reliability.
Expertly crafted, our dump trucks feature a robust chassis, spacious tipping box, and powerful hydraulic cylinder, making them perfect for transporting sand, stone, gravel, and more. As a premier supplier, we offer various configurations including 4x2, 6x4, and 8x4 models, tailored to your specific requirements. Each model is designed for maximum efficiency and reliability.
Key Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more. Built to endure the harshest conditions, our dump trucks ensure your materials are moved efficiently and safely.
2. Efficient unloading at a precise angle, significantly enhancing production efficiency. This feature ensures quick and seamless unloading, saving both time and labor.
3. Economical, reducing transportation costs. Our dump trucks are crafted to be cost-effective, helping you lower operational expenses and optimize profits.
4. Customizable design to meet diverse customer requirements. We offer bespoke solutions to address the unique needs of each customer, ensuring complete satisfaction.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a set angle, thus saving significant time and labor. This boosts production efficiency, shortens transportation cycles, and lowers transportation costs, making it indispensable in specialized transportation. Engineered for reliability, it stands as the ultimate solution for efficient material handling.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck. These classifications ensure a perfect model for every specific need.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck. Each type is specialized to excel in its respective field, offering unmatched performance.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks. This guarantees optimal performance and efficiency tailored to various operational needs.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc. These specialized trucks are engineered to handle specific materials with the highest efficiency.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks mainly used in construction projects. These classifications ensure safe and efficient unloading in various scenarios.
Detailed Photos




| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
| Type | Heavy duty, manual fuller type | ||||||||||||||||
| Model | HW19712 | ||||||||||||||||
| No of speeds | 12 forward + 2 reverse | ||||||||||||||||
| Model | Torque(Nm) | Gear Ratios | Oiling (L) | ||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | ||||||
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |||
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
| Frame | Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer, 1500mm |

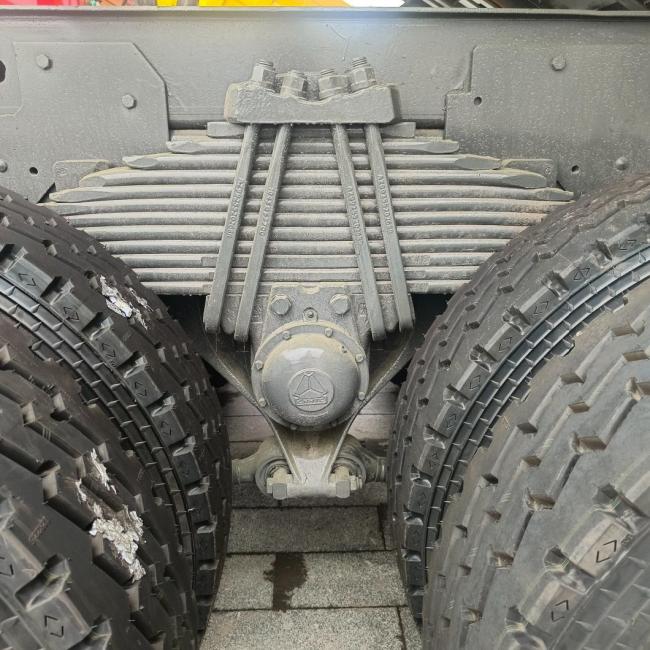

| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer , 1739mm |
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
| Capable of maintaining the sound level as low as possible. |
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
| Installed heavy duty front and rear steel bumpers |
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
At Jining Huahang International Trade Co., Ltd., we prioritize meticulous attention to every detail of our vehicles. Every vehicle undergoes a stringent road test by our skilled engineers before delivery, ensuring top-notch performance and reliability.
Our unwavering commitment to excellence has allowed us to meticulously perfect our vehicles, guaranteeing the exceptional quality of our trucks and trailers. We proudly offer a Three-Month Warranty on all trucks and trailers to our valued customers. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. Our unwavering commitment to quality and performance has established us as a trusted partner, ensuring each truck upholds the highest standards while delivering exceptional performance in Africa's challenging terrains. This remarkable milestone underscores our relentless dedication to providing reliable, high-quality vehicles that our customers can depend on, making Jining Huahang International Trade Co., Ltd. a name synonymous with trust and reliability.
Every truck in our fleet undergoes an exacting inspection process before delivery. This rigorous assessment ensures each vehicle meets our high standards for performance and safety.
1. Engine: Our detailed examination starts with the engine, ensuring it runs seamlessly. We check for oil leaks and monitor emissions to ensure there are no traces of black, blue, or white smoke, adhering to stringent environmental standards.Maintaining zero emissions of black, blue, or white smoke is paramount for optimal performance and environmental compliance.
2. Transmission: We conduct exhaustive tests on the transmission to ensure all gear positions shift smoothly and precisely, guaranteeing flawless operation every time.
3. Axle: Our thorough inspections include checking for oil leaks and confirming the axle's flawless operation during driving conditions.
4. Frame: We meticulously inspect the frame for any signs of deformation, ensuring the truck's structural integrity is uncompromised.
5. Headlights and Wiper: We verify that both headlights and wipers are in perfect working order, ensuring safe and reliable functionality.
