Customized Used Sinotruk HOWO 6X4 Tractor Truck for Heavy Duty Towing and Performance
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Unveiling the Power of Our Product Use
1. Comprehensive Definition of a Tractor
A tractor is a remarkably versatile light truck, meticulously engineered to tow other vehicles or hefty objects on the road. Equipped with an array of wheels and axles, it is indispensable for pulling semi-trailers, luxury yachts, construction machinery, and more. As a linchpin of heavy transport, it serves a pivotal role across diverse industries.
2. Detailed Structure of the Tractor
A tractor is composed of several critical components: engine, transmission, tires, and frame. It may also integrate supplementary devices such as tow hooks, locking mechanisms, and remote controls, which significantly enhance its operational efficiency and control.
3. Versatile Tractor Application Fields
1. Transportation: In the realm of long-distance freight, the tractor is an essential asset for towing semi-trailers and large trucks, ensuring the safe and timely delivery of goods to their respective destinations.
2. Construction Field: Tractors are vital for transporting an array of construction equipment, including excavators, bulldozers, and cranes, thus facilitating the seamless transfer of heavy machinery to various job sites.
Essential Basic Information
| Horsepower | 371-400hp | Engine Capacity | >8L | |
| Tire Design | Radial | Condition | New | |
| Usage | Towing Semi Trailer | Fuel Tank | 400L, 600L, 1000L | |
| Driver Seat | Air Suspension Seat | Transport Package | Nude Packing | |
| Trademark | SINOTRUK HOWO | Production Capacity | 1000 |
Main Specifications: Comprehensive Breakdown

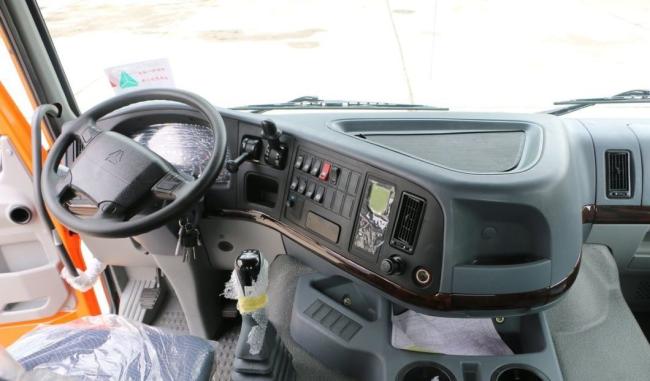

Driver's Cab(One sleeper with air conditioning for ultimate comfort)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO II |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 371hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| Type | Heavy duty, manual fuller type | ||||||||||||||||
| Model | HW19710 | ||||||||||||||||
| No of speeds | 10 forward + 2 reverse | ||||||||||||||||
| Model | Torque(Nm) | Gear Ratios | Oiling (L) | ||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | ||||||
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |||
Front Axle
| Type | HF7 tons steering with double T-cross section beam |
| Capacity | 7000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer , 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tires
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4600mm+1350 |
| Overall length | 6875mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Our State-of-the-Art Factory
Efficient Shipment Methods
We generally ship trucks through RO-RO vessels or bulk vessels. Additionally, we offer shipping via specialized containers to cater to diverse logistical requirements.
Authentic Original Spare Parts
We provide genuine spare parts coupled with a comprehensive after-sales service system. Our After-Market Division guarantees exceptional service and swift parts delivery through a highly efficient supply chain.
Our Premium Product Range
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: Most of our trucks and machines are ready in stock and can be dispatched within 7 days. For specially ordered items, we typically require around 30 days for production.
Q: How many units of truck do you produce per year?
A: Our annual production capacity stands at nearly 30,000 units, with approximately 5,000 units updated or manufactured each month.
Q: How do you control the quality of the product?
A: Our factory boasts a standard production workshop manned by well-trained workers. Each product undergoes a meticulous inspection process. Additionally, we recondition our trucks and machines on a specialized production line to ensure superior quality.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we accept custom orders. Our minimum order quantity (MOQ) is 1 unit.
