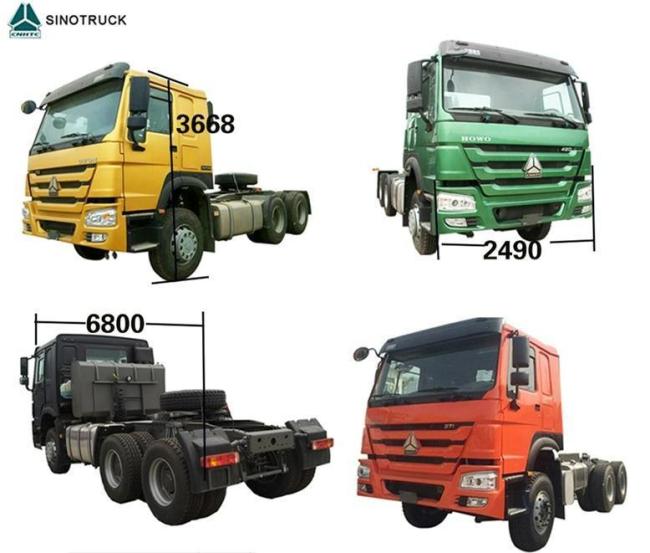

HOWO 6X4 Tractor Truck for Heavy Duty Transport Hydraulic Steering Power Assistance
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
A World of Applications for Our Efficient Used HOWO 6X4 Tractor Truck
1. Definition of Tractor
A tractor is a versatile light truck expertly designed to tow other vehicles or heavy objects on the road. Equipped with multiple pairs of wheels and axles, it is crucial for pulling semi-trailers, luxury yachts, construction equipment, and more. As a cornerstone of heavy transport, this powerful vehicle plays an indispensable role across various industries.
2. The Structure of the Tractor
A tractor consists of several key components, including the engine, transmission, tires, and frame. It may also feature additional devices such as tow hooks, advanced locking systems, and remote controls, all of which enhance its operational efficiency and control-ensuring optimal performance in every task.
3. Tractor Application Fields
1. Transportation: In long-distance freight, this tractor is essential for towing semi-trailers and large trucks, ensuring the safe and timely delivery of goods to their destinations.
2. Construction Field: Our tractor efficiently tows a variety of construction equipment, including excavators, bulldozers, and cranes, making it easier to transport heavy machinery to job sites.
Basic Info.
| Horsepower | 371-400hp | Engine Capacity | >8L | |
| Tire Design | Radial | Condition | New | |
| Usage | Towing Semi Trailer | Fuel Tank | 400L, 600L, 1000L | |
| Driver Seat | Air Suspension Seat | Transport Package | Nude Packing | |
| Trademark | SINOTRUK HOWO | Production Capacity | 1000 |
Main Specifications:
Driver's Cab(One sleeper with Air Conditioning)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shock absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO II |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 371hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| Type | Heavy duty, manual fuller type | ||||||||||||||||
| Model | HW19710 | ||||||||||||||||
| No of speeds | 10 forward + 2 reverse | ||||||||||||||||
| Model | Torque(Nm) | Gear Ratios | Oiling (L) | ||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | ||||||
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |||
Front Axle
| Type | HF7 tons steering with double T-cross section beam |
| Capacity | 7000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame, 300mmx80mmx8mm (inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer , 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4600mm+1350 |
| Overall length | 6875mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Our Factory
Shipment
We typically ship our trucks via RO-RO or bulk vessels, and also offer shipping through special containers to meet diverse logistical needs.
Original Spare Parts
We provide genuine spare parts and a comprehensive after-sales service system. Our After-Market Division ensures excellent service and rapid parts delivery through an efficient supply chain.
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machines are in stock and can be delivered within 7 days. For specially ordered items, we typically require around 30 days for production.
Q: How many units of trucks do you produce per year?
A: We produce nearly 30,000 units annually, with approximately 5,000 units updated or produced each month.
Q: How do you control the quality of the product?
A: Our factory features a standard production workshop with highly trained workers. Each product undergoes a thorough inspection process. We also recondition our trucks and machines on a specialized production line to ensure they meet the highest quality standards.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we accept custom orders. Our minimum order quantity (MOQ) is 1 unit.
