Manual Transmission Sinotruk Hydraulic Concrete Mixer Truck 8 Displacement for Building
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use
The Sinotruk Hydraulic Concrete Mixer Truck is a specialized vehicle meticulously engineered for the transportation of concrete in construction scenarios. With its distinctive shape, this vehicle is often dubbed the 'field snail car' or 'olive car'. Outfitted with cylindrical mixers, it ensures the efficient and effective transport of mixed concrete.The mixing drum of the Sinotruk Concrete Mixer Truck maintains continuous rotation during transit, preventing the concrete from setting. Upon delivery, the drum is typically flushed with water to prevent residual concrete from hardening, thereby preserving the drum's optimal operational capacity.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |
Product Description

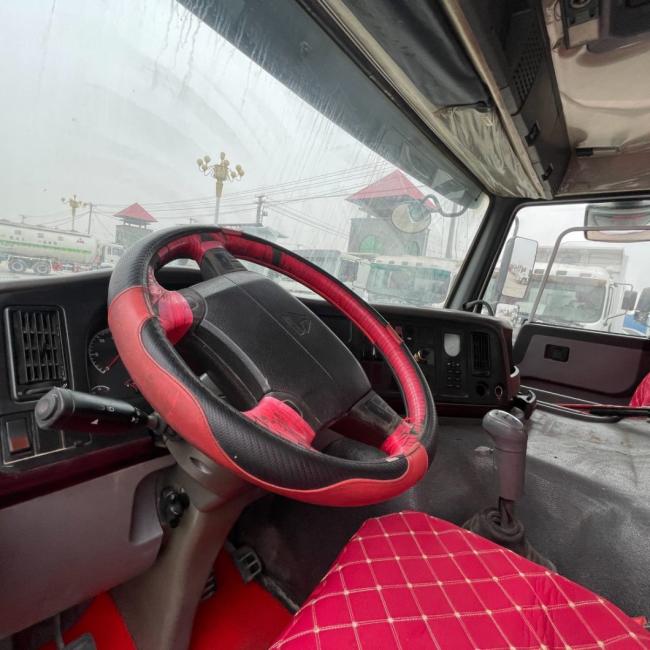

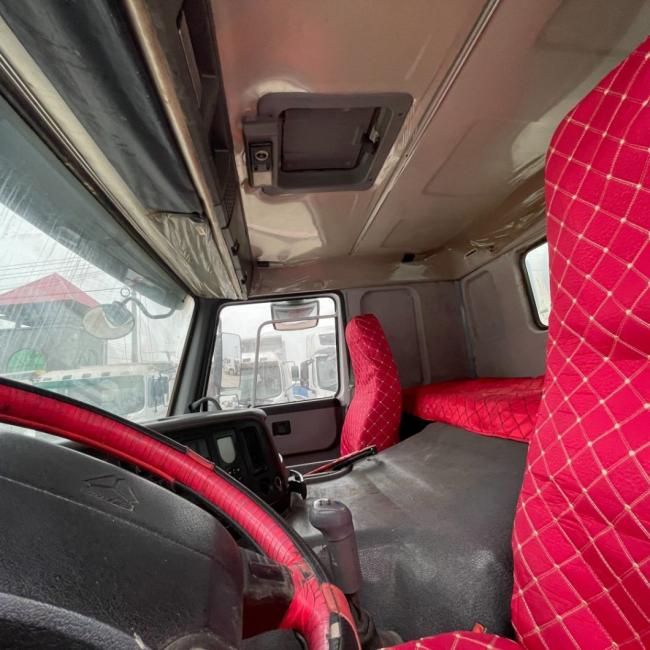

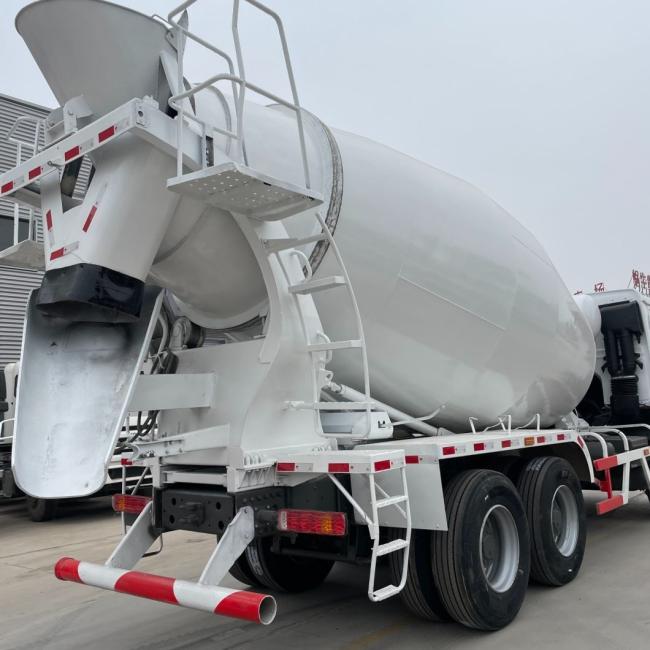

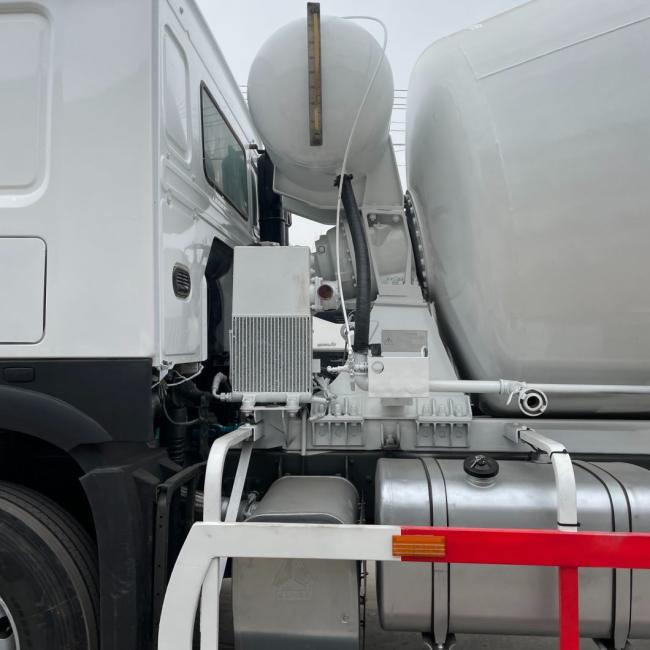

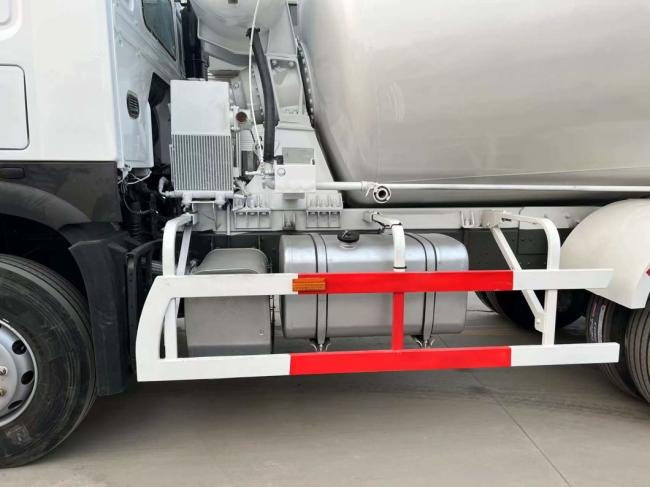

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro II | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We offer an extensive selection of used tipper trucks,tractors, and concrete mixer trucks dating from 2013 onwards. All our vehicles are in excellent condition and come at competitive prices!For more photos and detailed information, please contact us.
Important Precautions
1. Thoroughly inspect all parts of the mechanical system before starting. Only proceed with operations after ensuring everything is in top condition.
2. Ensure the mixing lever is set to the 'neutral' position before starting.
3. After starting, switch the mixing lever to the 'discharge' position to expel any water inside the cylinder.
4. During loading, place the stirring operating rod in the 'loading' position.
5. Secure the discharge groove in the 'traveling' position before transportation to prevent it from swinging.
6. When operating the joystick, allow it to rest in the 'neutral' position briefly before moving to the next position.
7. Follow civilized construction practices: do not randomly discard excess materials. Clean the mixing drum, tank, roller, and other parts after discharge. When entering the cylinder to remove concrete clumps, ensure the vehicle is turned off, the key is removed, and someone is monitoring from outside.
Our Factory
Shipment
We typically ship our trucks via RO-RO vessel or bulk vessel. We can also accommodate special container shipping upon request.
Original Spare Parts
We provide original spare parts. Our comprehensive after-sales service system, managed by the After-market Division, guarantees excellent support and utilizes an efficient supply chain for rapid parts delivery.
Our Product
Thanks for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machinery are in stock and ready for delivery within 7 days. Special orders typically take around 30 days for production.
Q: How many units of trucks do you produce annually?
A: We produce approximately 30,000 units per year, with nearly 5,000 units updated monthly.
Q: How do you control product quality?
A: Our factory boasts a standard production workshop staffed by well-trained workers. Each product undergoes rigorous inspection, and trucks and machinery are reconditioned through a professional process.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we accept custom orders. Our minimum order quantity (MOQ) is 1 unit.
Q: How about the delivery time?
A: Most of our trucks and machinery are in stock and ready for delivery within 7 days. Special orders typically take around 30 days for production.
Q: How many units of trucks do you produce annually?
A: We produce approximately 30,000 units per year, with nearly 5,000 units updated monthly.
Q: How do you control product quality?
A: Our factory boasts a standard production workshop staffed by well-trained workers. Each product undergoes rigorous inspection, and trucks and machinery are reconditioned through a professional process.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we accept custom orders. Our minimum order quantity (MOQ) is 1 unit.
