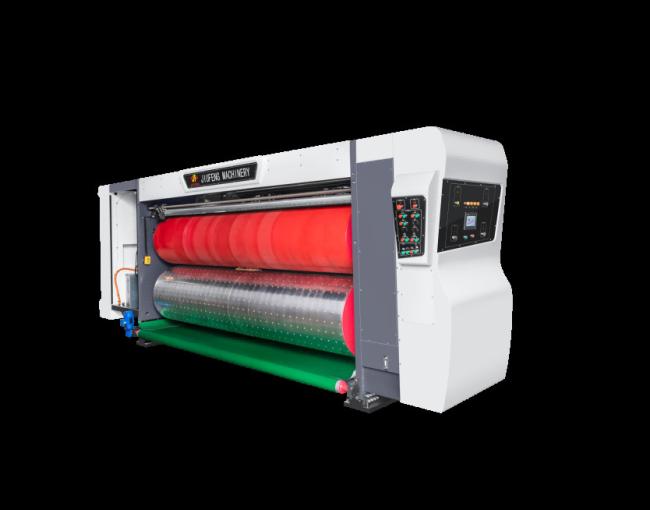

G6-1224 Lead Edge Vacuum Transfer 4 Color Printer+Slotter+Die Cutter+Vibrator+ Stacker
G6-1224 Lead Edge Vacuum Transfer 4 Color Printer+Slotter +Die Cutter+Vibrator+ Stacker
(Vacuum Transfer,Top Print)
Machine performance characteristics:
The system features integrated single-command control for operational parameter configuration, order management, and production adjustments, enabling simplified high-velocity operation with micron-level precision calibration. A multi-zone vertical vacuum system with high-pressure dust extraction ensures optimal print surface preparation through segmented airflow management, maintaining exceptional graphic definition across production runs.
Power transmission employs synchronized belt-gear drives combined with advanced edge-gripping vacuum conveyors, enhanced with variable-frequency vacuum pressure regulation for automatic adaptation to diverse substrate dimensions and curvature variations. The maintenance-free shaft coupling mechanism eliminates traditional keyway designs, guaranteeing permanent gear-shaft integrity and sustained print cylinder concentricity during extended operations.
Drive components utilize tungsten-carbide treated alloy steel gears precision-ground to Rockwell 58-62 hardness specifications through specialized heat treatment processes. The modular anilox roller assembly incorporates quick-change blade/scraper configurations, enabling dynamic mechanical reconfiguration for varied production requirements.
Printing operations are governed by PLC-controlled automation systems featuring proprietary micro-pressure technology. This includes computer-regulated plate cylinder elevation control and patented bottom-roll pressure adjustment mechanisms achieving 0.1mm precision increments, ensuring consistent impression force management throughout the printing process.
Technical parameter:
|
MODEL |
G6-1224 | ||
|
The Length of feeding(A) |
Max | 2500MM | |
| Min | 600MM | ||
|
The Width of feeding(F) |
Continue feeding | 1200MM | |
| skip feeding | 1400MM | ||
| Min of feeding | 420MM | ||
| Max printing(F×A) | 1150x2400MM | ||
|
Minimum spacing of cutter plate |
Reverse knife (BxCxBxC) | 250x80x250x80MM | |
| Depth of slotting | Max | 320MM | |
| The height of carton box(E) | Min | 110MM | |
| The max for die cutting(FxA) | 1150x2400MM | ||
| Speed pcs/min | Max speed | 250MM | |
| Economic speed | 120-160MM | ||
| Thickness of paperboard | 1.5-11MM | ||
| Thickness of printing plate | 7.2MM | ||
