3.5mm/3.81mm Pitch Plug-in Terminal Block with 8A Rated Current For Power Supply and Industrial Control
Price:
Contact us
MOQ:
Contact Us
Delivery Time:
7-14 working days
Brand:
Jrkconn
Product Description
Pluggable Connector PCB Plug-In Connector For Power Supply And Industrial Control
The 15EDGKD-3.5/3.81 is a plug-in PCB terminal block designed with a detachable male and female structure. With 3.5mm or 3.81mm pitch options, it provides flexible and secure wiring for power control and industrial electronic equipment.
Key Features of Pluggable Connector:
- Consists of a plug and a mating header, allowing quick tool-free connection and disconnection.
-
The 3.5mm / 3.81mm pitch is ideal for high-density wiring and compact devices.
- Using a screw clamp system provides strong wire retention and long-term connection reliability.
- Polarized design prevents mismating, ensuring safe and reliable assembly.
- Available in 2.5mm, 3.5mm, 3.81mm, 5.0mm, and 5.08mm pitches for flexible design compatibility.
- Receptacle can be mounted on PCBs, panels, or control modules.
- Used in power supplies, instrumentation, security systems, industrial automation, and new energy devices.
Product Specifications of Pluggable Connector
| Model number | JRK15EDGK-3.5/3.81 | Contact Material | Phosphor Bronze, Ni Plated |
|---|---|---|---|
| Type | Pluggable Terminal Blocks | Housing Material | PA66, UL94V-0 |
| Pitch | 3.5/3.81 mm | Rated Voltage | 300V |
| Poles | 2P~24P | Withstanding Voltage | AC 1600V / 1 Min |
| Screw Material | Steel, Zinc Plated | Rated Current | 8A |
| Wire Cage | Brass, Tin-Plated | Color | Green, Customized color available |
| Temp Range | -40℃ ~ +105℃ | Wire Range | 28-16 AWG |
| Strip Length | 7~8 mm | Max Soldering | +250℃ for 5 Sec |
| Application |
Power Supplies, Smart Home Control Boards, Instrumentation, New Energy Device, and Industrial Automation |
Recommended Matching Header |
JRK15EDGKA-3.5/3.81, JRK15EDGVC-3.5/3.81, JRK15EDGRM-3.5-3.81 |
1. The actual color of the product may vary slightly from the images displayed on the website due to differences in monitor settings and lighting conditions.
2. All measurements are taken manually and may have slight deviations.
Why JRKCONN?
- Over 13 years of manufacturing experience in terminal blocks.
- Quality assurance. 100% inspection before shipment.
- One-stop solution for your reference, saving you time and costs.
- Professional engineering support and technical drawing assistance, offering a range of solutions for your terminal block options.

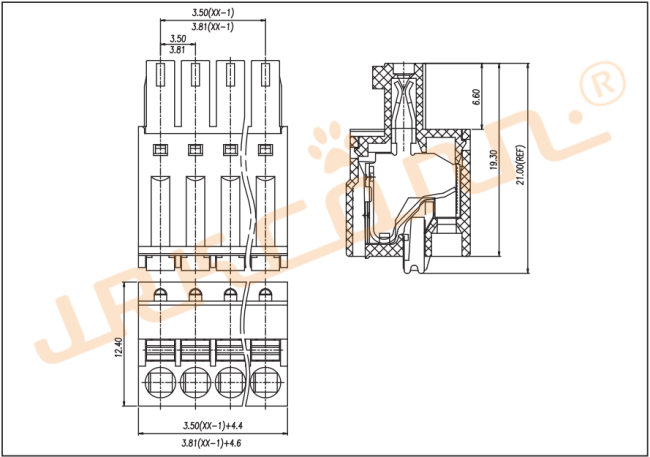

Technical Drawing of 3.5/3.81mm Pluggable Terminal Blocks
Packing & Delivery
| Selling Units | Package | Port |
|---|---|---|
| Single item | PE bag + carton box packing | Shenzhen |
| Shipping options | Air freight, sea freight, or express courier (DHL, FedEx, UPS) | |
| Quantity (pcs) | Samples | 1 - 100K |
| Estimated delivery time (business day) | 3 ~ 7 | 15 |
Custom Process
Q & A
Q1. Can I have a sample order for the terminal blocks before placing a purchase order?
A: Of course, samples are available for testing, and customers pay only the express courier cost.
Q2. What is the sample lead time?
A: Standard samples will take 3 - 7 working days. Customized samples take 7-15 working days.
Q3. Do you have any MOQ Limit?
A: Low MOQ, 1 piece for sample checking is available.
Q4. Can I make personalized/customized products?
A: Yes, we accept custom orders based on your drawings or samples.
Q5. How do you ship the goods, and how long will it take to ship to my country?
A: We usually ship by DHL, UPS, FedEx, TNT, or by the customer's appointed freight forwarder. It usually takes 3 - 7 days to arrive.
