LP12 8-Pin IP68 Waterproof Connector 3A 125V Aviation Plug
Price:
The price ranges from $1 to $4 USD per pieces
MOQ:
100PCS
Delivery Time:
5-8 Working Days
Brand:
Cablein
Product Description
LP12 8-Pin IP68 Waterproof Connector 3A 125V Aviation Plug
Product Specifications
| Attribute | Value |
|---|---|
| Name | LP12-Type 8-Pin Solderable 3A Power Wire-to-Wire Waterproof Connector Aviation Plug And Socket |
| Metal | Gilded brass |
| Material | Plastic |
| Insertion life | 1000 times |
| Voltage | 125V |
| Waterproof | IP68 |
| Withstand Temperature | -40℃~+80℃ |
| Dustproof | 100% Dustproof |
Technical Details
| Pins Number | 2Pins | 3Pins | 4Pins | 5Pins | 6Pins | 7Pins | 8Pins |
|---|---|---|---|---|---|---|---|
| Rated Voltage | 125V | 100V | |||||
| Rated Current | 5A | 3A | |||||
| Insulation voltage | 1.5KV | 1KV | |||||
| IP CODE | IP68 | ||||||
| Cable Jacket OD | ⌀5-7mm | ||||||
| Assembly cable diameter | 0.75-1mm² | 0.34-0.75mm²/22-20AWG | |||||
| Ambient temperature | -40℃~+80℃ | ||||||
Key Features
- Material & Performance: Housing made of high-performance PBT engineering plastic with stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components ensure superior conductivity.
- Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
- Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
- Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
Application Industries
- Automation Equipment
- LED Lighting
- Security Equipment
- Telecommunication Equipment
- New Energy
- Electronic Devices

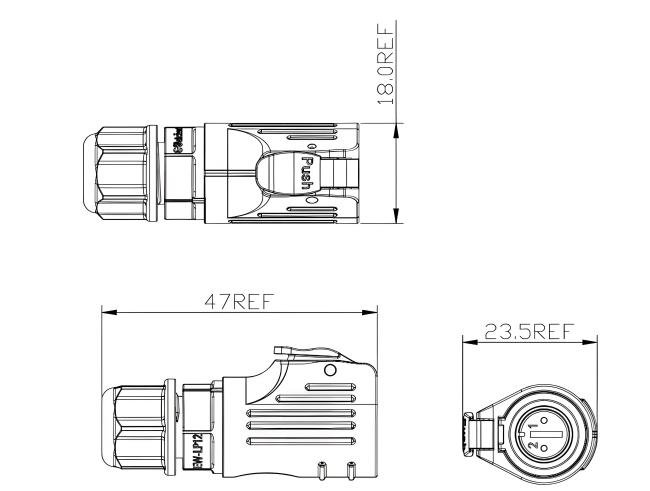

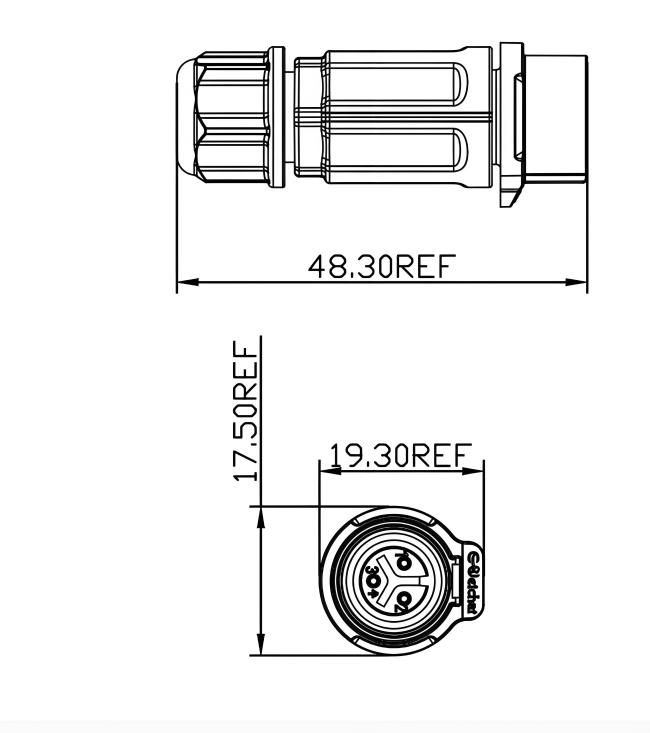

Drawings
Frequently Asked Questions
Q: How to buy your products?
A: Contact With Our Sales Team online or By email
Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and shipping way
Q: Can I get samples?
A: We're happy to offer samples; you just need to pay freight cost. Please provide your courier number and detailed address for immediate shipment.
Q: What is the operating temperature range of this device?
A: The device operates reliably within an ambient temperature range of -40°C to +80°C, with a maximum withstand temperature of 85°C for short-term exposure.
Q: Does the product meet industrial waterproof standards?
A: Yes, it carries an IP67 rating with optional IP68 certification available upon request.
