• Pin: 4 Pin
• Current Rating(A): 20A Max
• Material: Metal+plastic
• Conenction Way: Push-button snap fastener
• Operating Voltage: 500V Max
• Assembly Wire: IP-Rated Locking Gland
• Mounting Type: Wire-to-Wire
• Out Door UV Resistance: Pass
• Cable Jacket OD: 2.4-4 mm²

1. Material & Performance:
   The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
2. Secure Locking Mechanism:
   Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
3. Waterproof Design:
   Standard IP67 rating (IP68 optional) provides precise waterproof protection.
4. Certifications & Compliance:
   Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.

• Automation Equipment
• LED Lighting
• Security Equipment
• Telecommunication Equipment
• New Energy
• Electronic Devies

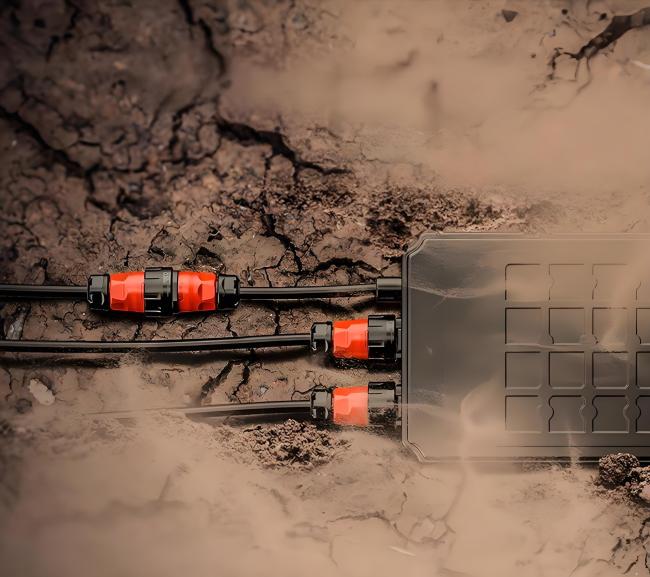

The LP20 series connector features a robust IP67 rating when fully mated. This means it is completely protected against dust ingress and can withstand immersion in water up to 1 meter deep for 30 minutes. It is ideal for demanding environments such as outdoor lighting, industrial automation, agricultural machinery, and any application exposed to rain, moisture, or dust.

The hybrid metal and plastic construction offers the perfect balance of durability and performance. The metal components (typically the shell and screw threads) provide superior mechanical strength, shielding, and resistance to crushing or impact. The plastic components ensure excellent corrosion resistance, electrical insulation, and weight reduction, making it resilient in harsh chemical or saline environments.

The soldering termination provides a permanent, highly reliable, and gas-tight connection that is excellent for resisting vibration and preventing corrosion over time. It is a preferred method for high-current applications like this 20A power line. While this specific model is the soldering type, the LP20 series may also be available in crimping versions. Please check the product datasheet or contact our sales team to confirm available termination options for your needs.
