CNC Turning Insert, Model TNMG220408-V, with CVD Coating HYS208, Suitable for Semi-Rough Machining of Cast Iron and Steel, and Rough Machining of Ductile Iron
Price:
Negotiable
MOQ:
ten PCS
Delivery Time:
It is determined according to the customer's order.
Brand:
Hanyuhaoyang
Product Description
CNC turning insert, model TNMG220408-V, with CVD coating HYS208, suitable for semi-rough machining of cast iron and steel, and rough machining of ductile iron. Commonly used in applications requiring corrosion resistance, wear resistance, and insulation.

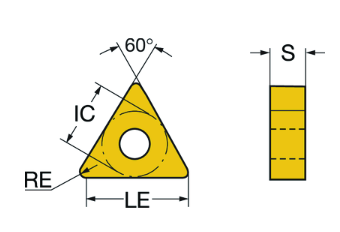

| Product Data | |
| Process Type (CTPT) | finishing |
| Insert Mounting Style Code (Metric) (IFS) | Cylindrical fixing hole |
| Fixing Hole Diameter (D1) | 5.156 mm |
| Number of Cutting Edges (CEDC) | 6 |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Insert Shape Code (SC) | Triangular |
| Corner Radius (RE) | 0.8 mm |
| Hand of Cut (Direction) (HAND) | Neutral |
|
Material Grade (GRADE)
|
Carbide |
| Insert Thickness (S) | 4.76 mm |
| Major Relief Angle (AN) | 0° |
| Component Weight (WT) | 0.013 kg |
Application Industries of Diamond Standard Turning Inserts
| Application Industry | Typical Machined Parts |
|---|---|
| Automotive Manufacturing | Engine blocks/cylinder heads, transmission housings, various shaft parts |
| Aerospace Industry | Titanium alloy frames, aircraft structural components |
| Mold Manufacturing | Cores and inserts for injection molds/die-casting molds |
| General Machinery & Components | Various shafts, flanges, hydraulic components |
| 3C Electronics Products | Smartphone mid-frames, laptop computer housings |
FAQ
Q: Are you the original manufacturer of the inserts?
A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
Q: How long is your delivery time?
A: It is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
Q: What is the best way to contact you?
A: Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
