10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits

Price Negotiable

Price: Price is negotiable.

MOQ: 5

Delivery Time: 6-8 weeks

Brand: ROGIN

Product Description

10.1 inch High Brirghtness LCD Display 1280*800 LVDS 1000nits

Product Advantage ►

1. Brightness customization 700-5000cd/m².
2.Outdoor sunlight readable.
3. Low power consumption.
4.High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7.Wide temperature range up to -30°C-80°C.
8.High shock resistance and high stability.

Product Application ►

1.Bus Station Signage Board. 2.Intelligent Charging Pile. 3.Outdoor Electronic News Reading Board. 4.Intelligent Express Cabinet. 5.Vending Machine. 6.Commercial Advertising Machine. 7.Attractions Information Inquiry Machine. 8.Community Information Board.

Specifications ►

LCMA-RX0101GI01-C100

Brand	Rogin
Series	High Brightness LCD Display
Panel Size(inch)	10.1
Model	LCMA-RX0101GI01-C100
Brightness	1000
Power Consumption (W)	7.5
Resolution	1280*800

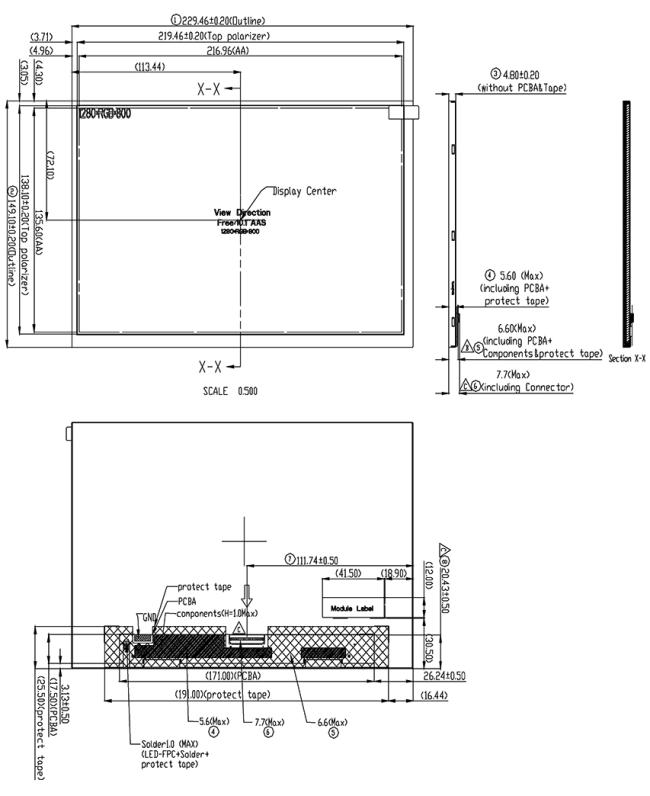

Active Area	216.96*135.6
Overall Size	229.46149.17.7
Viewing Angle	85/85/85/85
Interface Definition	LVDS (1 ch, 8-bit)
Backlight Type	WLED
Contrast Ratio	800:1
Aspect Ratio	16:10
Touch Panel	Without
Operating Temperature	(-20-70)
