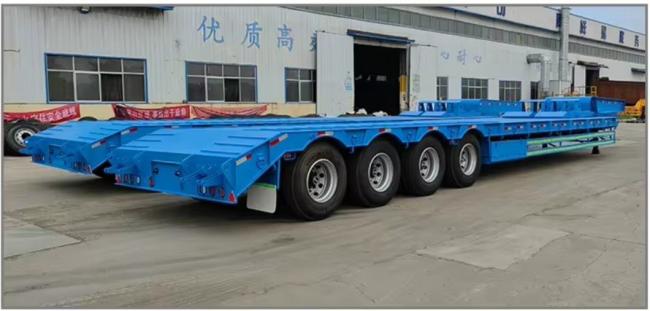

Mac Pherson Type Suspension Lowboy Trailer for 120tons Detachable Gooseneck Transport
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Peak Season Lead Time: one month, Off Season Lead Time: one month
Product Description
| Type | |||
| External dimensions | 13000*3400*3800mm | ||
| Pallet size | 8500*3400*1250mm | ||
| curb weight | About 10000KG | sprung mass | 60000kg |
| specifications | |||
| suspension | 4-axis mechanical suspension(Customizable air suspension) | ||
| tire | 12R 22.5 16tires(Customizable) | ||
| Axls | 13T 2180 4pieces(Customizable) | ||
| Leaf spring | 90*16*10 8pieces | ||
| retardation | Brake wheel cylinder 6 pairs 2 singles | ||
| Climbing ladder | Spring assisted ladder | ||
| Leg | 28T | ||
| Relay Valve | Factory configuration | ||
| frame | |||
| Bodybeam configuration | The upper wing plate is 20mm, the lower wing plate is 20mm, and the belly plate is 12mm. Beam height 500mm | ||
| King PIN | 90#(Customizable) | ||
| Cargo platform | Bottom plate 4mm | ||
| Circuit and Painting | |||
| Light | LED: Rear tail combination lights, side marker lights, license plate lights, brake lights. | ||
| circuit | 24 volt 6-core circuit | ||
| Electrical connections | International standard pneumatic connector, 24V 7-pin socket | ||
| colour | Customizable | ||
Liangshan Hongxiang Vehicle Manufacturing Co., Ltd. is located at the foot of the famous waterside Liangshan Mountain, close to the 220 National Road and Beijing-Kowloon Railway, the scenery is pleasant and the traffic is very convenient.

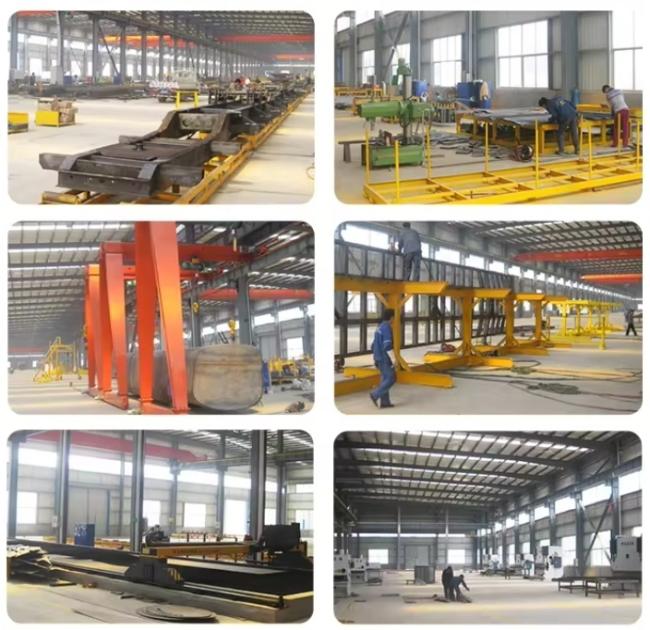

The company has a large number of professional production, technical personnel. Advanced production equipment, sophisticated technology, complete testing equipment. Our company is a set of production, scientific research, sales in one of the professional enterprises. The products reach or exceed the performance indicators of other similar products in China. Products mainly include: Various series of container transport vehicles, semi-trailer, van, full trailer, Shanghai 50, Tianjin 60, Dongfang Red 1000 full trailer, and undertake special vehicle modification, design business.
We insist on high-quality products to win the market, adhere to the sincere service to return customers, our pursuit is first-class equipment, first-class management, first-class technology, first-class products. We always adhere to the quality, low price, contract, keep faith, product implementation of "three guarantees", timely delivery, thoughtful service business purposes. Every step of development, the first thought is the user, we rely on the quality of survival, to the letter of development!
The company has a large number of professional production, technical personnel. Advanced production equipment, sophisticated technology, complete testing equipment. Our company is a set of production, scientific research, sales in one of the professional enterprises. The products reach or exceed the performance indicators of other similar products in China. Products mainly include: Various series of container transport vehicles, semi-trailer, van, full trailer, Shanghai 50, Tianjin 60, Dongfang Red 1000 full trailer, and undertake special vehicle modification, design business.
We insist on high-quality products to win the market, adhere to the sincere service to return customers, our pursuit is first-class equipment, first-class management, first-class technology, first-class products. We always adhere to the quality, low price, contract, keep faith, product implementation of "three guarantees", timely delivery, thoughtful service business purposes. Every step of development, the first thought is the user, we rely on the quality of survival, to the letter of development!
