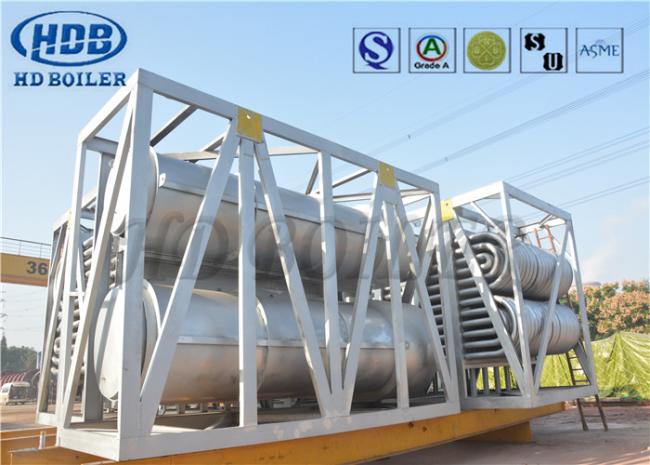

Vertical Carbon Steel APH Boiler Air Preheater Economiser For Thermal Power Plants
Vertical Structure Carbon Steel Boiler Air Preheater for Thermal Power Plants
Air preheater(APH)is the shell and tube type heat exchangers used for preheating the air which is fed to the boiler or furnaces/ kilns for combustion of fuels. Air preheater’s primary objective is to extract the waste heat from the flue gases leaving the boiler. There are two types of air preheaters for use in steam generators in thermal power stations: One is a tubular type built into the boiler flue gas ducting, and the other is a regenerative air preheater.These may be arranged so the gas flows horizontally or vertically across the axis of rotation.
Specifications
| Material | Carbon steel or equivalent |
| Structure | vertical |
| Tubes | enameled seam or seamless tubes |
| Tube OD | Customized |
| Enamel thickness | 0.34+/-0.06mm |
| Size | Customzied design |
| Brand | ORL |
| Remarks | Customized order is also accepted. |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment(Normalizing+ tempering) → Inspection→Cutting→Pipe piercing→welding→Sealing test→Painting→Packaging |
The purpose of the air preheater is to recover the heat from the flue gas(exhaust gases) from the boiler to improve boiler efficiency. Incidentally the gases are sent to the chimney or stack at lowered temperature so that the design of the ducting and the stack becomes simplified. Also it controls the temperature of gases coming out of the stack.
| Specification for tubular heat exchanger | |
| Material | Optional material: stainless steel 304, 316L, duplex steel 2205, 2507, carbon steel , pure titanium, zirconium, Hastelloy , etc. |
| Tube | φ8, φ10, φ12, φ14, φ16, φ19 ,φ25etc. |
| Heat exchanger area | 0.1㎡- 1000㎡ |
| Installation type | Horizontal/Vertical |
| Carried standard | ASME |
Different types
For the use in Steam Generators (boilers)in Thermal power stations of Utility power stations, there are two types of design of the Airpreheaters. One is a tubular type built into the boiler outlet Flue_gas ducting and another one is of the regenerative type known as Ljungstrom (named after the name of inventor) Regenerative Air Pre Heater(RAPH),a rotating type. This may be horizontal (now very common in power generation utilities) or vertical.
Construction features
1. The vertical rotor of the same is supported on big thrust bearings at the lower side and has oil bath lubrication cooled by water circulating in the coils inside the oil bath. This arrangement is done for cooling of the shaft as this end of the vertical rotor is on the hot end of the ducting as well. The top end of the rotor has simple roller bearing to hold the rotating shaft in vertical position only.
2. The rotor is built up on the vertical shaft with radial supports and cages for holding the baskets in position. Radial and circumrential renewable seal plates are also provided to avoid leakages of gases or air between the sectors or between the duct and the casing, while in rotation.
