Hefei Opeck Machinery Co.,Ltd company Double system machine has high roller, high-performance sinker, dynamic stitch, motor control reserving carriage,digital technology, high-speed and efficient, to achieve point, tuck, jacquard, intarsia, full needle jacquard, apparent shape, hidden shape, and other irregular patterns. suitable for wool, cashmere, cotton, chemical fiber, silk and all kinds of blended yarn, the production of sweaters, blanket, scarfs, gloves, hats and knitted apparel accessories.irregular multi-color jacquard,twist flowers weft organization,cord weave,racked stitch,cable,etc.
Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters
Price:
$8,300.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
OPEK
Product Description
Product Description & Specification

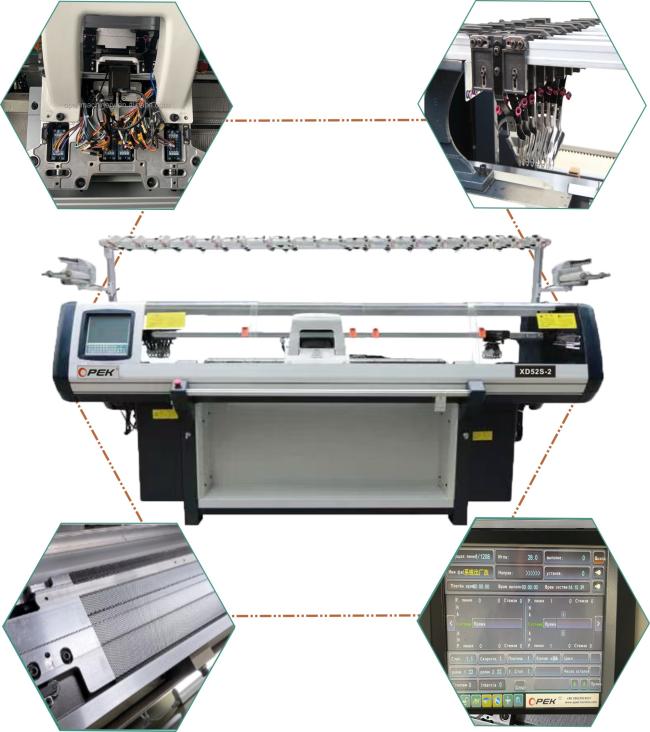

OPEK Brand XD52S-2 Double system Sweater Knitting Machine
Model | Knitting Width | Machine size (mm) | Package size (mm) | Weight (kg) |
XD36S-2 | 36 inch | 2050X750X1750 | 2450X1000X1800 | 550 |
XD52S-2 | 52 inch | 2450X750X1750 | 2850X1000X1800 | 650 |
XD60S-2 | 60 inch | 2650X750X1750 | 3000X1000X1800 | 750 |
XD72S-2 | 72 inch | 2950X750X1750 | 3000X1000X1800 | 950 |
XD80S-2 | 80 inch | 3450X750X1750 | 3760X900X1440 | 1100 |
Certifications and Honor
Product Parameters
Knitting system | single carriage with double systems |
Machine Speed: | Controlled by servo-motor with 24 section optional ,max speed reach 1.2m/S. varies according to gauge and knitting condition |
Knitting Function: | Knit ,miss, tuck ,transfer, pointel, intarsia, jacquard, hide or apparent shaping and other regular or irregular patterns |
Stitch density: | Controlled by 32 section electricity, density adjustment driven by stepping motor, range: 0-650 |
Racking: | AC Servo Motor drive, the maximum racking within 2 inches |
Needle actuator: | Replaceable segment needle bed |
Roller System: | Main and sub roller devices,32 section automatic control, subsection adjustable |
Yarn Carriers: | 6 yarn carriers are arranged on the left and right sides of the 3 double side guide rails. |
Transmission system: | Belt drive, High precision AC servo motor control. |
Data input: | Input and output patterns via USB, PC and Internet |
Take down roller | Programmed instruction ,controlled by marching motor ,changeable 24 levels and selectable scope 0-99. |
Safety device: | The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device |
Power: Voltage: | AC 220V, Frequency: 50HZ/60HZ, Power:0.8KW |
Knitting Samples
Flat Knitting Machine Workshop
Successful case
Company Introduction
Hefei OPEK Machinery CO.,Ltd is a goverment approved high-tech enterprise specializing in OPEK" brand circular knitting machine. After many years development, Opek company has profession.al R&D team and experience after-sale service team. Opek machines have obtained CE and ETL certification. Opek high speed automatic jacquard hat &scarf knitting machines, rib hat knitting machines and automatic hat sewing machine have been successfully exported to more than 30 countries around of the world, such as Germany, France, UK, Russia,India, Brazil, USA and etc. Along with continuous development of Opek company, Opek team have strong confidence to have more brilliant future in global and domestic market. Opek company always insist on "Quality First,Customer Foremost, Win-win Cooperation, Common Development" . Driven by innovation and research, Opek will provide you with high quality and high-value-added products continually, as sincerity of OPEK team. Opek sincerely welcome new and regular clients to visit and common development.
