Advanced 12gg Double Carriage Four System Flat Knitting Machine for Superior Knitting
Price:
$13,999.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
OPEK
Product Description
Product descript
Sweater Flat Knitting Machine
XD-100S(2+2)
XD-100S(2+2)
Four system flat knitting machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Double carrier with four system
4.Max speed:1.2m/s.
Main Characteristic
Double Carriage with four system , this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit ,transfer , tuck , pointel , intarsia , jacquard ,apparent shape, hidden shape , and other regular or irregular patterns knitting functions , can knit basic single or double jersey plain fabric , irregular multi-color jacquard , intarsia , cable and pointel structure patterns , which suitable to knit by yarns of pure silk ,mixed silk , synthetic , wool ,acrylic ,mixed fiber material etc. knitted for shaping fabric and accessories of collar , cardigan ,rib, cuff, scarf ,pocket and trousers etc.
Mainly specification
Gauge | 2.5G,5G,7G,8G,9G,10G,12G,14G,multi gauge 3-5-4G |
Knitting width | 100 inch |
Knitting function | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. |
Knitting speed | Controlled by servo motor, 24 sctions speed optional, max 1.2M/S,varis according to gauge and knitting condition. |
Needle bed | Replaceable segment neeedle bed |
Knitting system | Double carriage with four system |
Transfer | Combined cam box single or double system can work independently and one system can transger the stitch while the other sustem keeps knitting. |
Racking | Controlled by servo motor racking within 2inches and with fine adjusting function |
Protection | The machine will automactically alarm if yarn-breaking knots floating yarn rewind end of knitting,fail of racking needle breakage error programming occur |
Power | Single phase 220V,adopts advanced cmos technology,having memorizing function at power shock stop |
Encoder | Advanced encoder adopted. |
Knitting samples

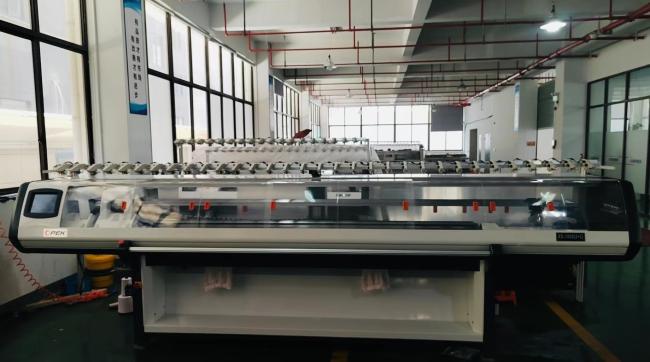

Our Workshop

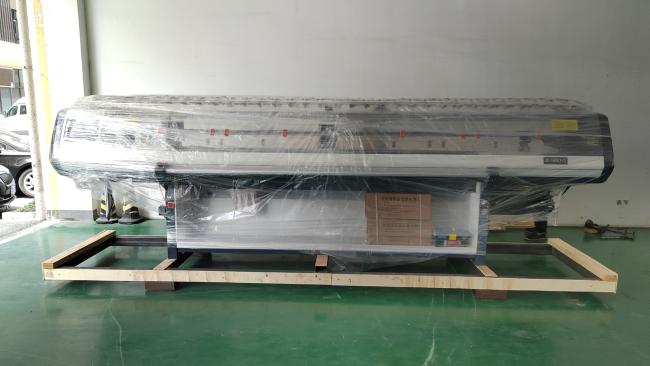

Packing & Delivery
