500pcs/day accuracy Wool yarn knit beret cap knitting machine for top-rated performance
Price:
$15,000.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
OPEK
Product Description
Similar to sock knitting machine structure circular hat and scarf knitting machine
Product Description

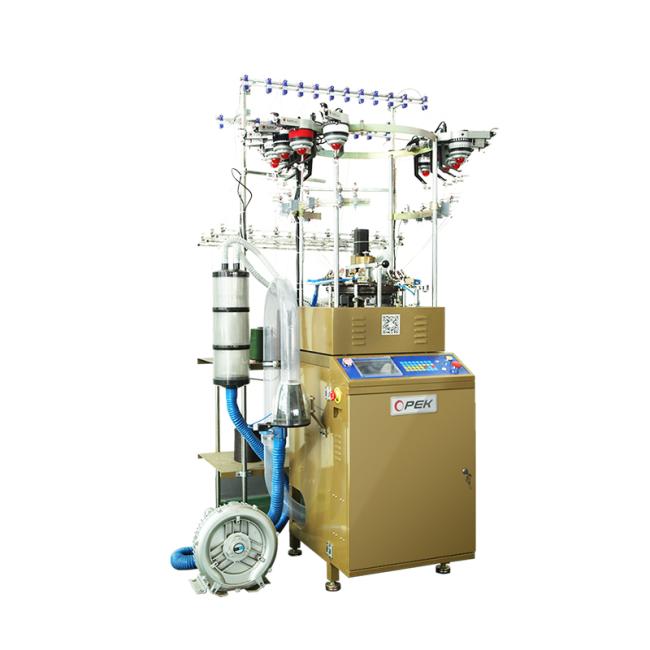

OPEK365 high speed fully jacquard hat & scarf knitting machine,this model is equipped with newest control system ,high speed and stable 16# acutuators (needle selectors).Easy to operation,design pattern make by computer .We offer professional software of design,In the same knitware can many time exchange single feeding and double feeding.Not only improve the production efficieny,but also to complete the complex patterns of weaving.
This machine is suitable for:wool,acrylic,cotton yarn,blended raw materials,knitting a variety of single jacquard hats,scarves,headband,and ribbing of 1*1,2*1,2*2...3D,HD products.

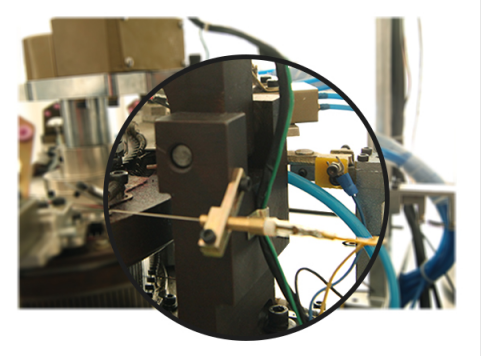

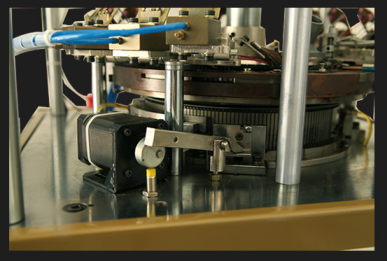

Step motor,precisely adjust lenth of jacquard yarn trimmer,desity of knitware Optimize start and stop,long usage life.
All-side automatic alarm device,effectively avoid knitware breakge or machine damage,improve products quality and working effcificy.Including yarn break alarm,knitting needle alarm,scissor alarm,jacquard alarm,air press alarm.

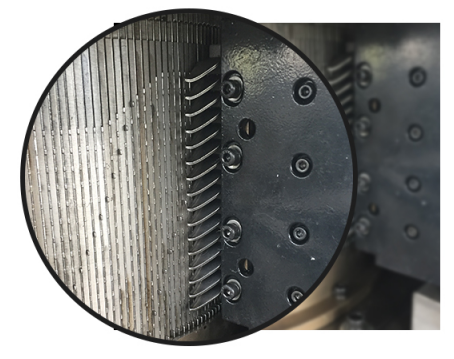

11 groups of needles selectors,each group needle selector with 16 segments.High speed and stable.
Cylinde size | 7inch,8inch,9inch,10inch |
Needle | 144-392N(according with customer request) |
Max speed | 120rpm |
Actuator | Equipped with high speed stable 11 groups actuator ,each group with 16segments |
Single/double system Jacquard | 7F+4F,single system same line can make 7 colors one same row,double system can make 4 colors one same row,single and double can auto change when knitting ,the whole knitware at most can be 14 colors. |
Oil device | Auto add oil |
Machine size | 752*663*1418mm packing size 850*950*1670mm |
G/N weight | 400/325kg |
Knitting sample
