Equipment description:

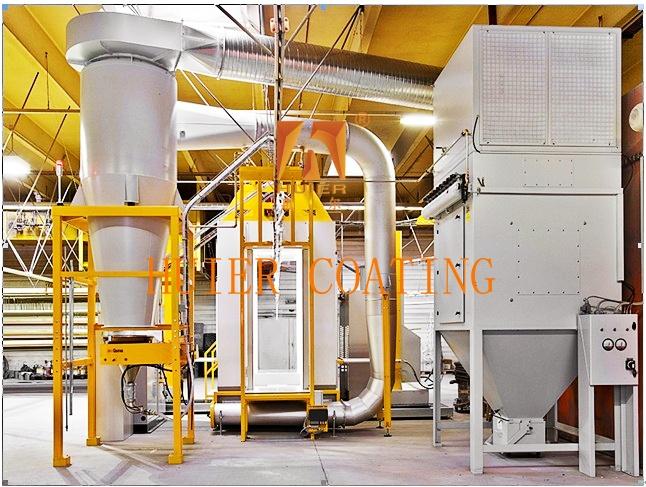

Major cyclone secondary recovery workflow: Raw material inlet → Primary cyclone separation (removal of 80% > 50μm particles) → secondary fine filtration (99.5% < 10μm particles recovery) → clean gas emission, advantages vs comparison single stage system energy saving 22-35% Support modular expansion (can be added three wet filtration) explosion-proof design in line with ATEX standard (optional)

Main structure and components:

The cyclone secondary recovery equipment is mainly separated by ‌ primary cyclone separator ‌ large particle dust to reduce the secondary load
Cone structure accelerates airflow rotation, centrifugal force settlement particles, ‌ two-stage high efficiency filter ‌ is equipped with porous ceramic/nano-filter element (accuracy 0.3-5μm) electrostatic adsorption module to enhance dust capture, ‌ intelligent control system ‌ pressure difference sensor automatic back blowing ash, frequency conversion fan to adjust the air volume (range: 2000-8000m³/h) composed.
Core parameter

Features:

1. High cost performance Based on the customer's product positioning and development strategy, based on economic benefits, to achieve the best cost performance.

2.Advanced equipment design concept of excellence, high degree of automation of industrial equipment, show modern advanced enterprise style.

3.High adaptability to meet the current production requirements, and reserve space for development, considering the later production increase and quality improvement needs.

4.Quality standards strictly follow the IS0900 quality management system, and every small link of the entire equipment installation is strictly checked.
