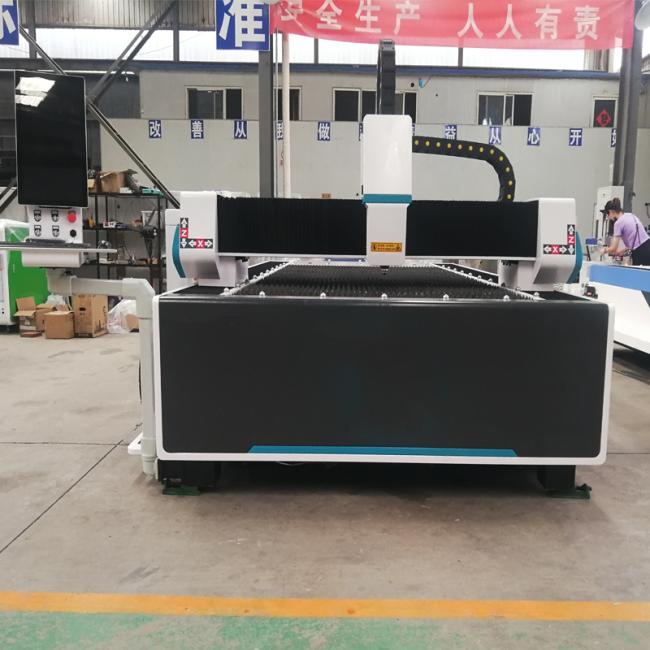

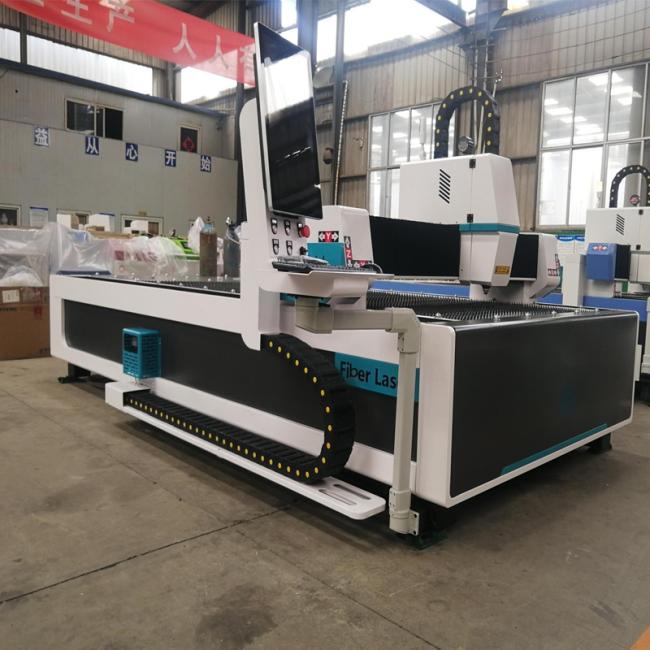

1500x3000mm CNC Fiber Laser Cutting Machine with Yaskawa Servo Motor
1500*300mm CNC Fiber Laser Cutting Machine for Carbon Steel Stainless Steel
Product Application

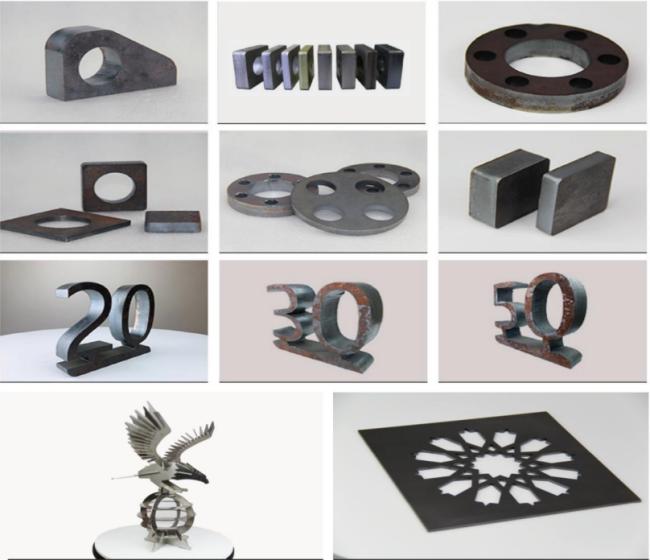

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel , Mild Steel Plate(tube), Carbon Steel, Alloy Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc. Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine.
Product Features
1. The chiller-equipped laser-cut steel panels efficiently lower lens temperature, preventing deformation or cracking. They ensure stable performance, enhanced productivity, reduced noise levels, and extended durability.
2. Featuring a professional CNC control system with fiber-optic communication, the laser-cut steel panels deliver stable signals and rapid response, significantly extending operational lifespan.
3. The compact smart remote control handle allows wireless operation of the laser-cut steel panels, enabling real-time cutting adjustments and emergency stops.
4. The gantry design expands the cutting capacity of the laser-cut steel panels while improving machining precision.
Techinical Parameters
| 1 | Model | XH-3015L | XH4020L | XH-6025L | XH-8025L |
| 2 | Cutting Working Area | 3000*1500mm | 4000*2000mm | 6000*2500mm | 8000*2500mm |
| 3 | Power | 1500w/2000w/3000w/6000w/12000W | |||
| 4 | Laser Source Brand | Raycus/MAX/IPG | |||
| 5 | Laser Head | Raytools | |||
| 6 | Control System | Cypcut | |||
| 7 | Pneumatically Part | SMC | |||
| 8 | Guiding Rail | Taiwan Hiwin | |||
| 9 | Helical Rack | Taiwan YYC | |||
| 10 | Motor | Yaskawa Servo | |||
| 11 | Water Chiller | Hanli | |||
| 12 | Gross weight | 1200KG | |||
| 13 | Machine Warranty | Lifetime | |||
---Brand:MAX RAYCUS JPT IPG
---100000hours life time
---e stable, cost-efficient
---Free maintenance
brand:CYPCUT
Details;edge seeking function and flying cutting function , intelligent typesetting ect
supported Format:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,NC,GBX etc...
brand : japan fuji
details:
--X axis: one set 850w Japan Fuji servo motor and driver.
--Y axis: Two set 850w Japan Fuji servo motor and driver
--Z axis;one set 400w Japan Fuji servo motor and driver
brand :Taiwan HIWIN
Advantage:Low noise,wear-resistant,smooth to keep fast moving speed of laser head
Detaills:30mm width and 165 four pieces stock on every table to decrease the pressure of rail
brand:1000w S&A chiller
Details:Dual cooling funtion,Hot water for laser head and cool water for laser source to keep them
around certain temperature and guarantee their normally work
