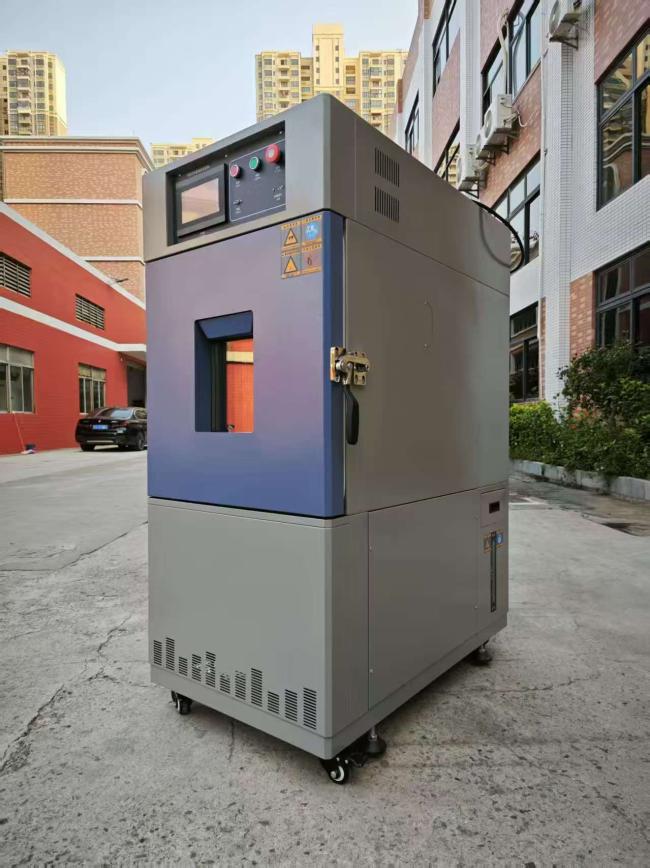

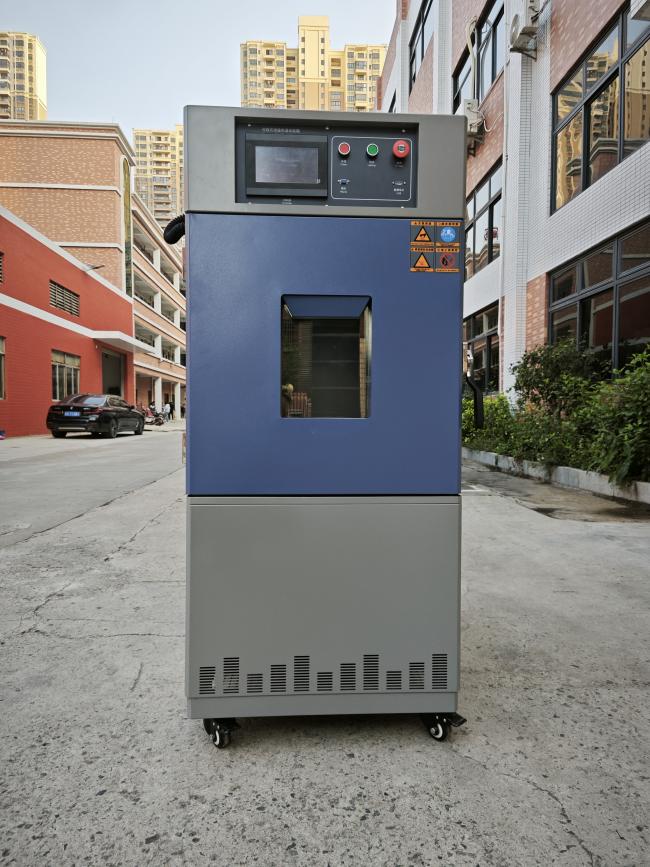

PLC Control Low Pressure Test Machine Vacuum Drying Oven 420L 1.5KW

Price Negotiable

Price: Negotiation

MOQ: 1SET

Delivery Time: 15days

Brand: HBYIQI

Product Description

Brand: Hengbang Instruments HBYIQI

Equipment Name: Low Pressure Drying Oven 420L

Equipment Purpose

The low pressure drying oven (also known as a vacuum drying oven) is specifically designed for drying heat-sensitive, easily decomposable, and easily oxidizable substances. It can be filled with inert gas (optional), and is especially suitable for quickly drying items with complex compositions.

Technical Parameters

Model	HB-DQY-G-420L(A/B/C)	Accept Customization
Inner Chamber Dimensions	W750xD750xH750mm	Accept Customization
Outer Chamber Dimensions	W1070xD1070xH2000mm	Accept Customization
Inner Chamber Material	Reinforced Steel + Stainless Steel (Thickness ≥ 5.0mm)
Outer Chamber Material	SECC Steel Plate, Fine Powder Coating Treatment (Thickness 1.2mm)
Structure	All-in-one Structure
Temperature Range	RT + 10℃ ~ 200℃
Heating Method	Surround Heating / Partition Heating
Control Method	PLC Touch Screen Control and Display
Air Pressure	Type A: 101Kpa ~ 20Kpa Type B: 101Kpa ~ 5Kpa Type C: 101Kpa ~ 0.5Kpa
Unit	Kpa / pa
Resolution	0.1kPa
Timing Time	999H59M59S
Visible Window	200x200mm (20mm Thick Tempered Explosion-proof Glass with Protective Steel Mesh)
Power Supply	AC 220V 50HZ (or Customized According to Country)
Power (Approx.)	1.5KW	2.5KW
Additional Items	Terminal Block Device.
