II、One machine has three functions,Vacuum sealing & inflation in one time. The three functions can also be operated separately.
III、There is no limit to the length of the sealed bag, no longer worry about the vacuum bin size is not suitable.
Convenient DZ-600W External Nozzle Vacuum Sealing Machine for Fish Meat Food Packaging
Price:
$430.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Y-F
Product Description
Product Description
Sample
I、One machine multi-purpose, to meet a variety of needs.
III、There is no limit to the length of the sealed bag, no longer worry about the vacuum bin size is not suitable.
III、There is no limit to the length of the sealed bag, no longer worry about the vacuum bin size is not suitable.
Specification
EXternal Vacuum Packing Machine Types
As below are models based on different sealing dimensions.If you need You can also customize.
Model | 500 external vacuum machine (Baking varnish/ stainless steel)450w |
Power supply | 220V/50HZ |
Power | 1KW |
Weight | 40kg |
Pumping rate | 4.3m³/h 72L/min |
Inflation rate | 0.8Mpa |
Seal dimensions | 500*8mm |
Machine dimensions | 600*340*430mm |
Workbench | 500*300mm |
Model | 600 external vacuum machine (Baking varnish/stainless steel)450w | 600 external vacuum machine (stainless steel)750w big pump | |
Power supply | 220V/50HZ | ||
Power | 1.5KW | 1.8KW | |
Weight | 60kg | ||
Pumping rate | 6.5m³/h 108L/min | 20m³/h 330L/min | |
Inflation rate | 0.8Mpa | ||
Seal dimensions | 600*8mm | ||
Machine dimensions | 700*450*950mm | ||
Model | 800 external vacuum machine (Baking varnish)450w | 800 external vacuum machine (Baking varnish/stainless steel)750w big pump | |
Power supply | 220V/50HZ | ||
Power | 1.5KW | 1.8KW | |
Weight | 80kg | ||
Pumping rate | 6.5m³/h 108L/min | 20m³/h 330L/min | |
Inflation rate | 0.8Mpa | ||
Seal dimensions | 800*8mm | ||
Machine dimensions | 700*450*950mm | ||
Model | 1000 external vacuum machine (Baking varnish/stainless steel)750w big pump |
Power supply | 220V/50HZ |
Power | 1.8KW |
Weight | 80kg |
Pumping rate | 20m³/h 330L/min |
Inflation rate | 0.8Mpa |
Seal dimensions | 1000*8mm |
Machine dimensions | 700*450*950mm |
Product details:

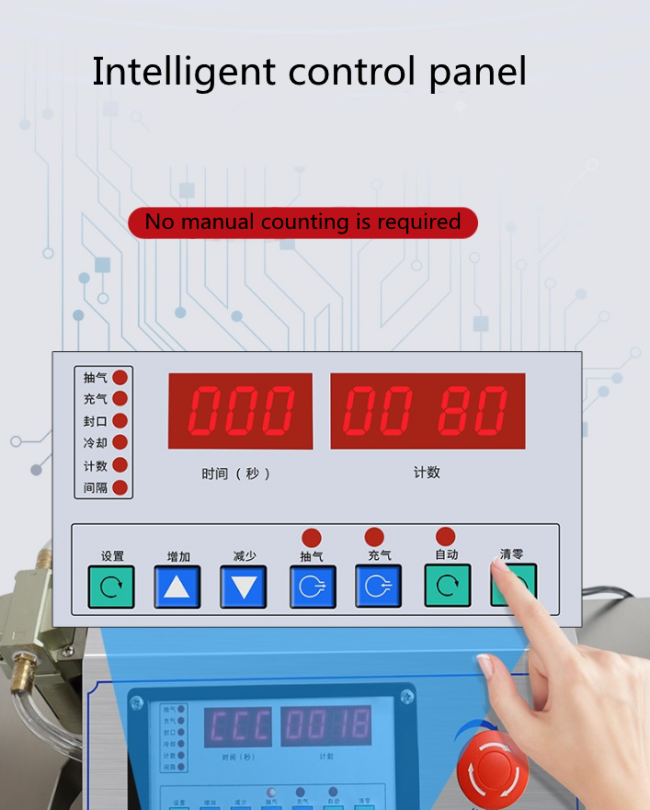

1、 Intelligent Control Panel.NO more manual counting.
3、Emergency stop switch, In case of emergency, press the button to stop the machine and reduce the loss.
Machine operation methods :
1.After checking before starting, turn on the power.
2.Set the exhaust time, heat seal time meter heat seal temperature gear (low, medium, high)
3.Put the packed articles into the vacuum chamber, lift the pressure rod membrane and press it on the bag mouth.
4.Press down the vacuum cap. The packing procedure starts with air exhaustion and then goes to heat sealing until the vacuum cap pops up automatically. The packing process ends.
2.Set the exhaust time, heat seal time meter heat seal temperature gear (low, medium, high)
3.Put the packed articles into the vacuum chamber, lift the pressure rod membrane and press it on the bag mouth.
4.Press down the vacuum cap. The packing procedure starts with air exhaustion and then goes to heat sealing until the vacuum cap pops up automatically. The packing process ends.
Certifications
Why Choose Us
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before
packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us
without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: with competitive price when you need it.
High Quality Customer Feedback
Timely After-sales Service
High Re-purchase Rate & Good Cooperation
FAQ
Q: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A:We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to
quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
Packing & Delivery
Standard export wooden cases
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical services, relying on technology to provide customers with packaging equipment solutions.
The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, palletizing machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. Packaging machinery and supporting production lines.
Products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After years of development and growth, the company has established a sound sales network and service network, products sold well throughout the country, and exported to Europe, America, Southeast Asia and Taiwan market.
Over the years, our company has been praised and appreciated by the vast number of new and old customers in line with the purpose of "high quality and perfect service".
In order to thank the vast number of new and old customers for their great love for Yifei packaging machinery, we solemnly promise that we are willing to repay our customers with the management concept of high quality and high service. Warmly welcome customers to Yifei Packaging Machinery for inspection and business negotiation.
