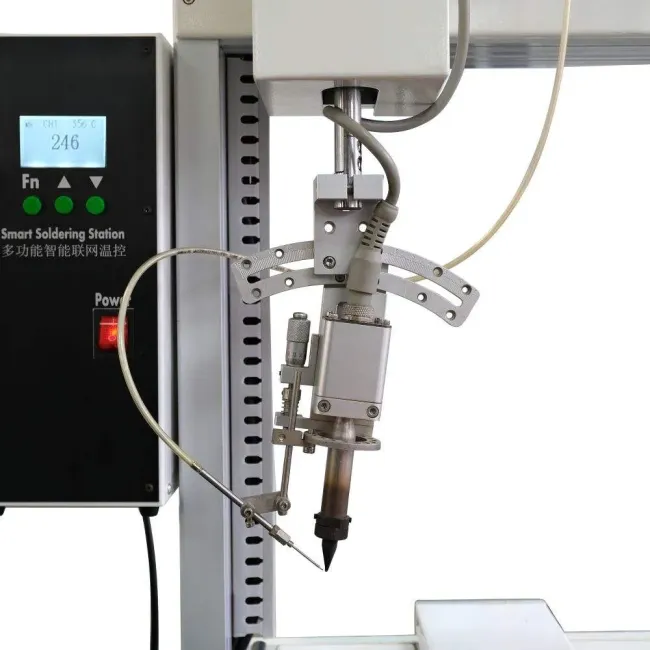

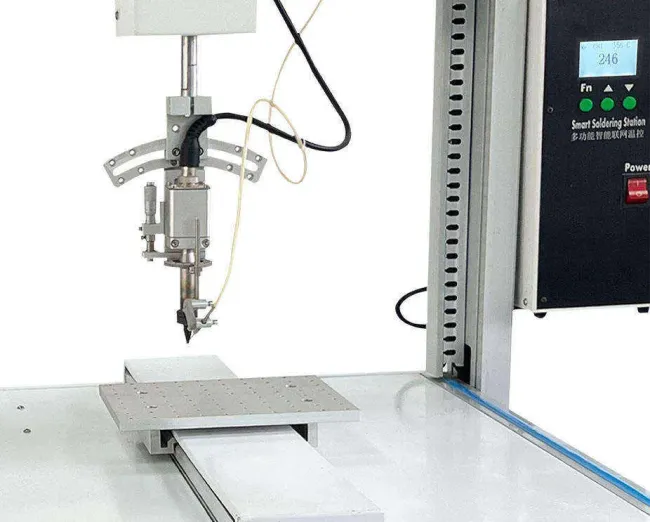

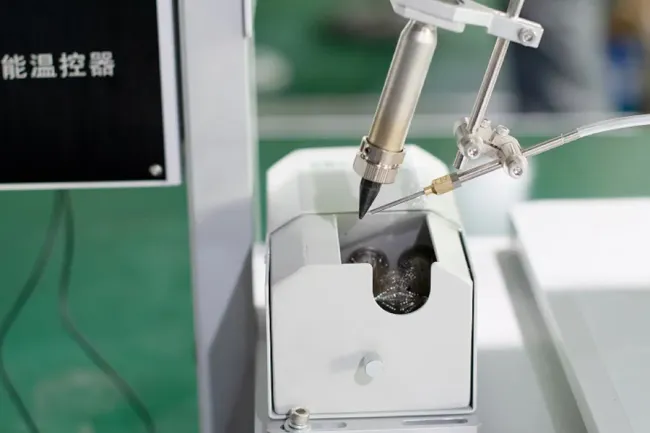

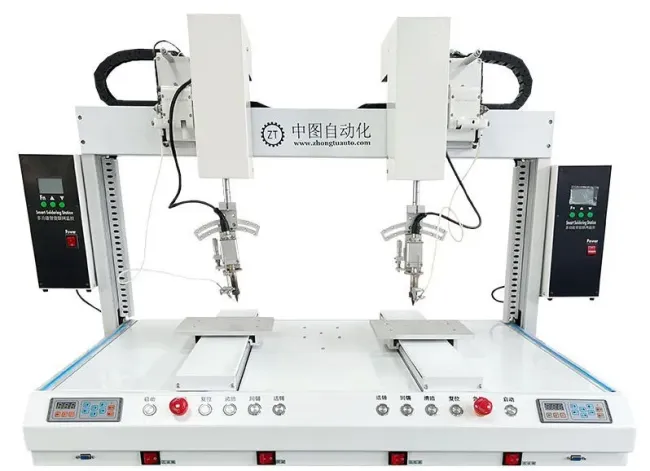

Dual Heads Automatic Soldering Robot Automated Solder Machine Welding System
Advanced automated solder machine welding system designed for precision manufacturing applications.
| Parameter | Value |
|---|---|
| Name | Automatic Soldering Robot |
| Place of Origin | Shenzhen, China |
| Applicable Industries | Manufacturing Plant, SMT, DIP |
| Key Selling Points | Automatic Operation |
| Weight | 85Kg |
| Marketing Type | New Product 2024 |
| Voltage | 220/110V 50~60Hz |
| Warranty Period | 1 Year |
| Dimensions | 1000*750*850mm |
| Warranty of Core Components | 3 Years |

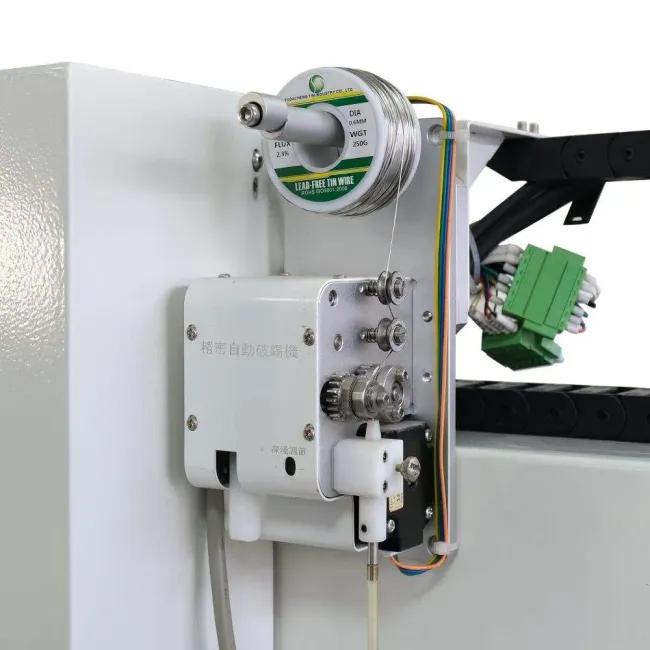

| Solder Wire | 0.6~1.5mm solder wire |
| Core Components | PLC |
| Temperature Accuracy | ±3° |
| Power | 680W |
| Solder Feeding Speed | 1~50mm/s |
| Current | 5A |
| Repeat Accuracy | ±0.02mm |
| Model | ZT-HXJ041R | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | Fixture Customization |
|---|---|---|---|---|---|
| Solder Power | 200W | 200/400w 600W | 200/400W | 200/400/600W | Need |
| Heating Temperature Range | 0-550ºC | ||||
| Machine Axis Number | 4axis | 4axis | 4axis | 5axis | Max moving speed |
| X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s |
| Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s |
| Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s |
| R Axis | 360° | 360° | 0 | 360° | ±0.05° Error |
| Temperature Errors | ±2° | ||||
| Tin Wire Diameter | φ0.6mm-1.5mm | ||||
| Teaching File Capacity | 256MB, up to 999 files, single file up to 1000 points | ||||
| Air Pressure | 4-5kg/cm² | ||||
| Weight(Kg) | 58Kg | 68Kg | 75Kg | 85Kg | Customized |
| Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order |
Shenzhen Zhongtu Automation Technology Co., Ltd. introduces advanced design concepts and technologies and is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.
The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics sales of accessories.
Products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.
- We are factory manufacturers
- Reduce overall cost
- Improve automation level
- Improve information level
- Improve product yield
- Provide customers with the most advanced system solutions for automation equipment
| Pre-Sale | In Sale | After Sale |
|---|---|---|
|
|
|
We are based in Guangdong, China, starting from 2015. There are total about 11-50 people in our office.

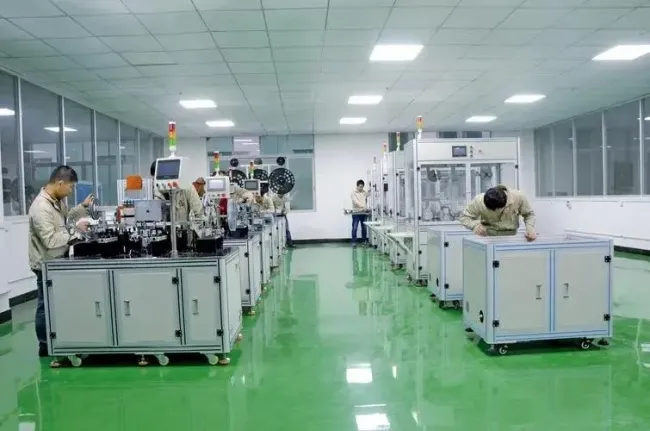

Always a pre-production sample before mass production; Always final Inspection before shipment.
Soldering machine, Precision spot welding machine, Glue dispenser, Screw machine.
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
We provide 1 Year Warranty for unit machine and 3 years warranty for main board. More details please contact us.
Yes! You are welcome to place sample order to test our superior quality and service.
We are professional manufacturer for automation machine since 2015.
