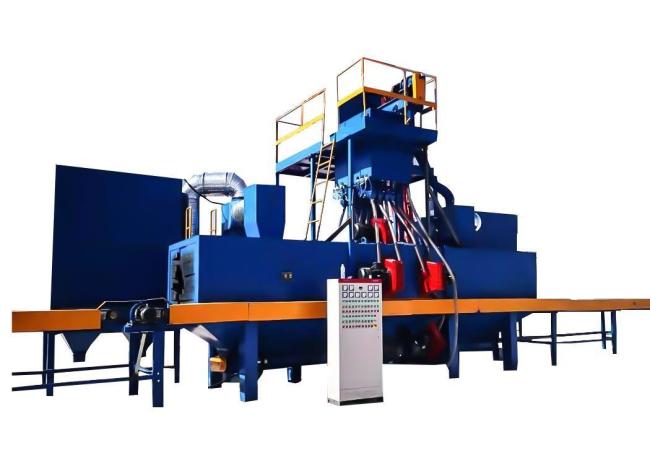

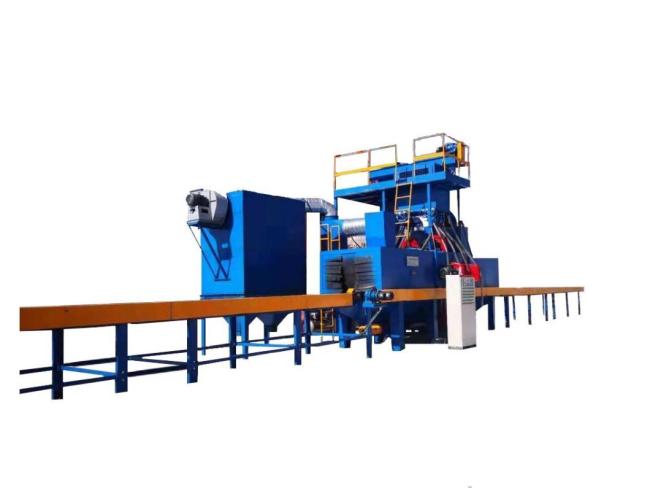

31000*8200*8900mm PMW6920 Roller Shot Blasting Machine for Aluminium Alloy Castings
Q69type roller through shot blasting machine is used fro removing scale and rust from metal profiles and sheet metal components. Suitable for surface derusting and painting process of shipping,car, motorcycle, bridge,machinery,etc.By combining a roller conveyor with the cross conveyors to connect the process step of shot blasting, conservation, sawing and drilling,it ensures a flexible process and high material production.
| Type Parameter | Q6915 | Q6815A | Q6920 | Q6920A | Q6930A | Q6930G | Q6930J |
| Length | >800 | >800 | >900 | >2500 | >6000 | >6000 | >6000 |
| Steel plate width/mm | ≤1500 | ≤1500 | ≤2000 | ≤2000 | ≤3000 | ≤3000 | ≤3000 |
| Steel plate thickness(mm) | 1.5-20 | 1.5-20 | 3-60 | 3-60 | 5-60 | 5-60 | 5-60 |
| Section steel plate width(mm) | 1200 | 1000 | 1200 | 1200 | 1450 | 1450 | 1000 |
| Section steel plate thickness(mm) | 200 | 200 | 450 | 300 | 500 | 500 | 300 |
| Cleaning speed(m/min) | 1-2 | 3-6 | 1-3 | 1-4 | 0.8-2 | 0.8-2 | 0.8-6 |
| Impeller head quantity | 4 | 6 | 6 | 4 | 6 | 6 | 4 |
| Single abrasive flow rate(kg/min) | 200 | 480 | 480 | 300 | 400 | 300 | 200 |
| Single power/kw | 15 | 37 | 37 | 22 | 30 | 22 | 18.5 |
| Total power/kw | 90.75 | 226.2 | 132 | 314 | 331.2 | 258.88 | 222.44 |
| Overall dimension(mm) | 12947*3673*6225 | 15500*3673*6850 | 16805*4800*7870 | 8200*5800*8840 | 9724*6392*8039 | 9020*6392*7600 | 9020*639*7733 |
Pumingwei through shot blasting machine is professional,unque and irreplaceable
1.Supplier ensure that the name, model, specification and quantity are consistent with technical agreement ,and we
make sure that all machine is new with qualifying product through perfect technology and installation,the quality is
stable and reliable.There are no defects in design, material and technology,which is suitable for proposal of demander.
And meets the standard of national industry.
2.Arrange for engineer or skilled labour to installation and debugging of equipment in overseas
( except force majeure, inappropriate operation and the quick-wear parts ).
3.In order to ensure a good quality, every machine in the factory will be strict calibration and debugging before they
leave the factory.
4.We will direct the installation and operation of the equipment, and train operators for customer.
