2-4 Coils Per Hour Production Efficiency Hanging Retractable Shot Blasting Machine
1.Environmentally-friendly technology instead of pickling.2.Remote control,easy operation.
3.To disperse the wire automatically,even,high effective
and lowl abor intensity for operator.
4.Ultra-low emission:3mg/m³.
5.Widely used in (high,medium,low) carbon steel,alloy
steel,stainless steel and others.
6.Good work environment and negative pressure
within equipment.
7.Can be customized according to customer products.

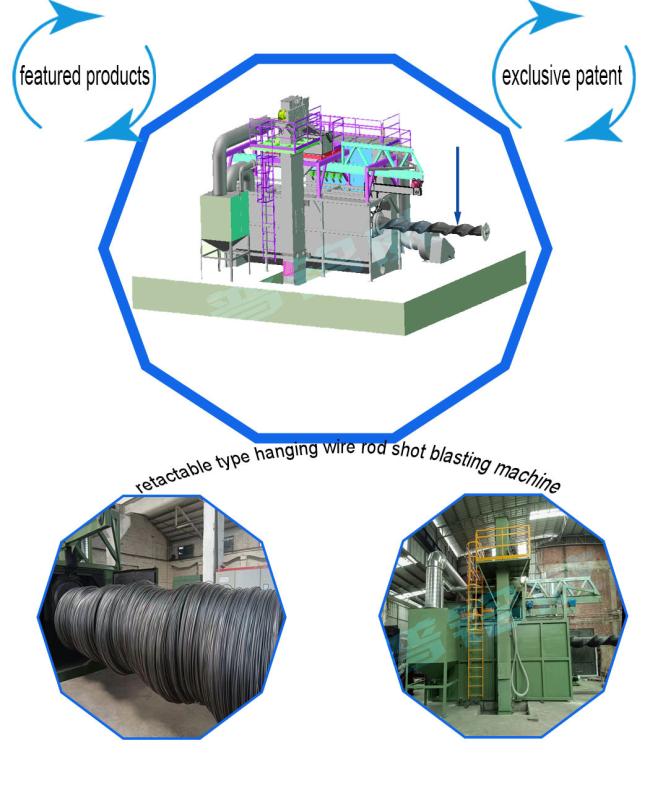

8.retractable long shaft for Pumingwe exclusive patent in the world

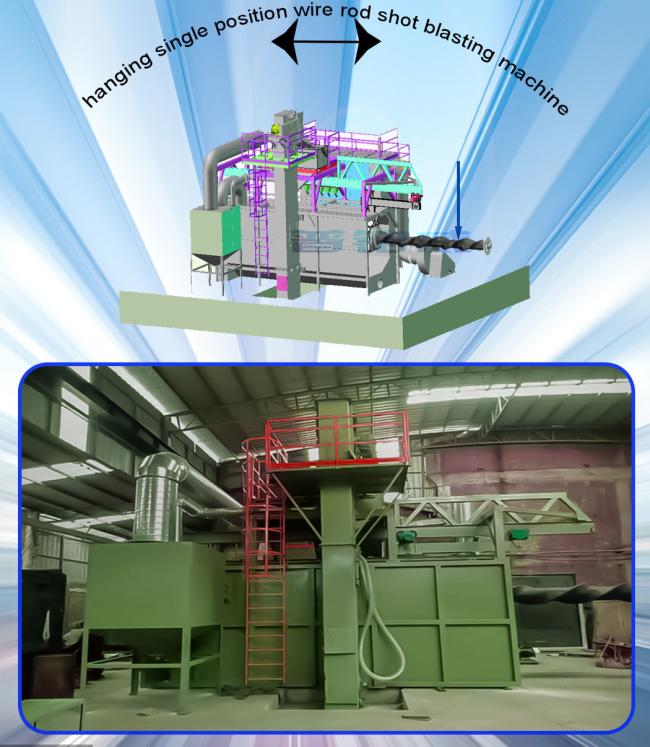

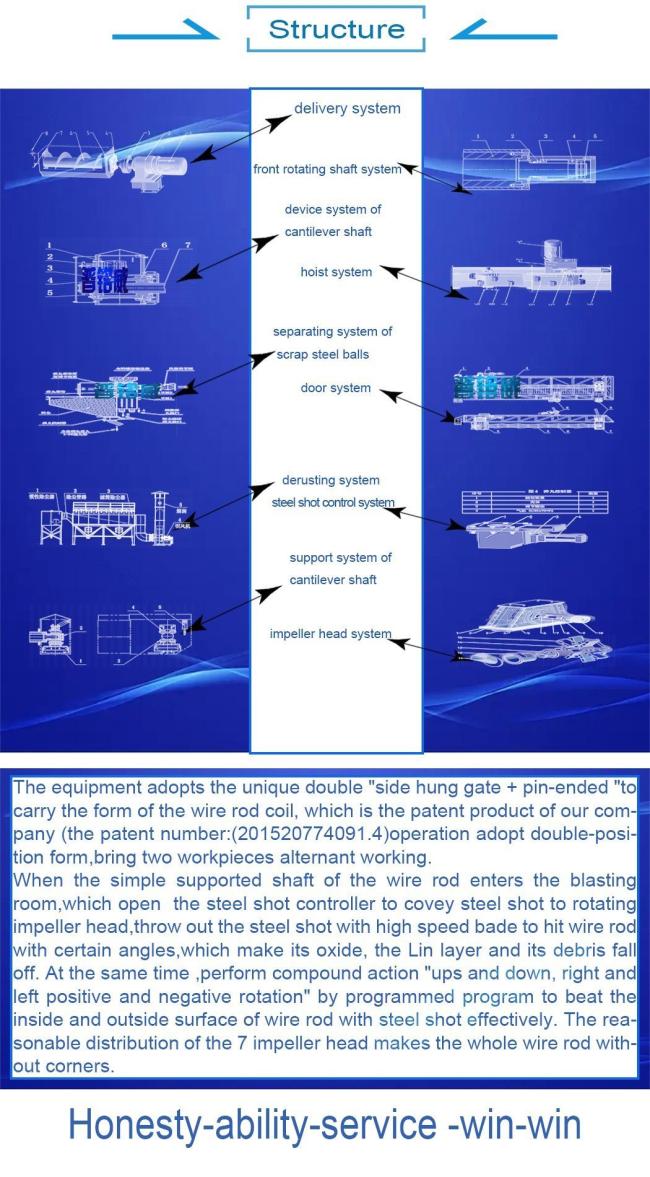

The equipment adopts a unique "auto retractable cantilever shaft" to carry the wire rod working mode. The cantilever shaft is made of special alloy steel.which greatly improves the service life of the shaft .It is also a patented product of our company (patent No. : 201620372463.5). In the process of shot, the device makes wire do compound action of up and down + side to side + positive and negative rotation to achieve the effect of thorough cleaning. The reasonable arrangement of impeller head have resulted in effective blasting of steel shot in the inner and outer surfaces of wire,the machine is controlled by PLC, and the operation is convenient and reliable. This machine has the function of automatic dispersing wire, therefore, save the work of manual working, reduce labor intensity and improve work efficiency.
| Application range | fasteners,wire rope,spring,stainless steel,welding rod,cold-heading wire,etc. |
| Production capacity | 10,000-40,000 each year |
| Wire diameter | 6.5-42mm |
| Equipment size | 9*4*5.8m |
| Wire loss | 0.2-0.3% |
| Derusting cost | about20-40RMB/T |
| Production efficiency | 2-4coils/per hour |
| Number | Item name | unit | Numeric value | Notes | |

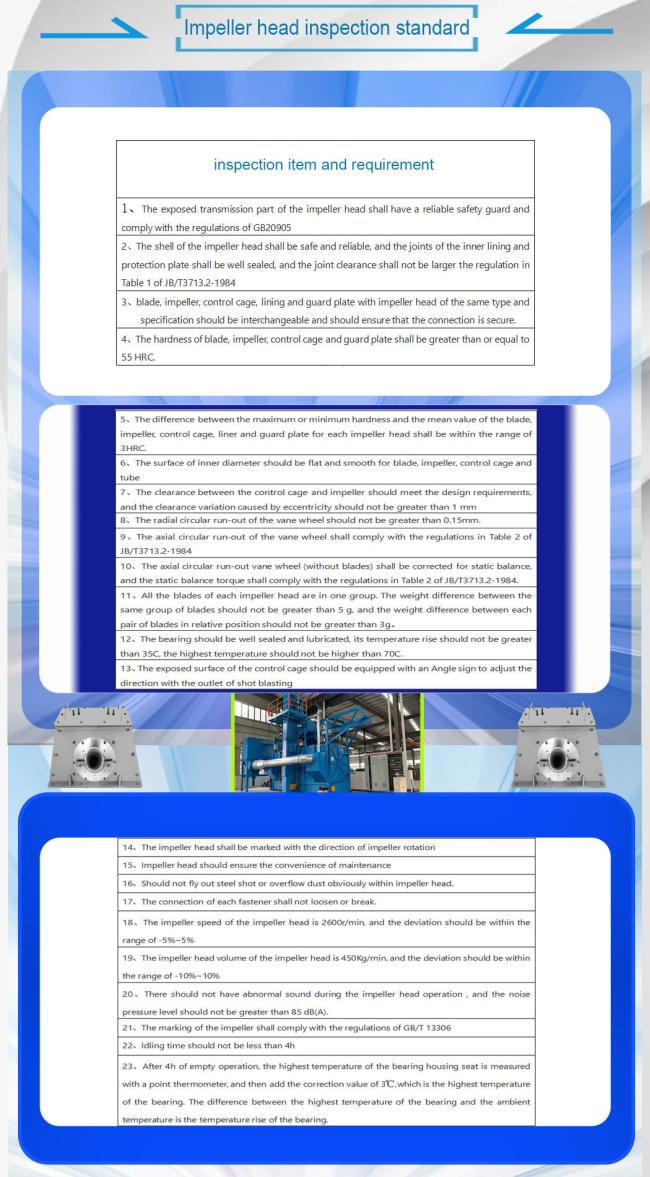

| 1 | Impeller head | quantity | set | 5 | 1.connection technology with electric motor belt 2.wear resistant parts are wear resistant materials 3.frequency impeller head speed control |
| model | / | Q035 | |||
| The max shot blasting rate | kg/min | 5×450=2250 | |||
| Impeller width | mm | 80 | |||
| power | kW | 5×30=150 | |||
| 2 | cabinet | quantity | Piece | 1 | Protection liner plate is wear resistant steel plate |
| Wearing plate | / | Wearable alloy material | |||
| 3 | curtain separator | quantity | set | 1 | |
| Separation volume | t/h | 150 | |||
| Separation rate | % | 99.9 | |||
| form | Adjustable curtain air separation | ||||
| 4 | Bucket type lifter | Quantity | set | 1 | Bending composite shell technology |
| Lifting capacity | t/h | 150 | |||
| Lifting speed | m/s | 1.22 | |||
| power | kW | 7.5 | |||
| 5 | screw conveyor at the bottom | quantity | Set | 1 | |
| Conveying capacity | t/h | 150 | |||
| Screw diameter | mm | 320 | |||
| power | kW | 7.5 | |||
| 6 | Steel shot controller | Quantity | set | 6 | |
| Rate of flow(max) | kg/min | 5×450 | |||
| Control type | / | ADJ | |||
| Control type | / | Air operated | |||
| 8 | power | kW | 165 | ||
