Customized Multiple Colors Steel Plate Shot Blasting Machine for Your Manufacturin

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months
Product Description
Product Description



Q69type roller through shot blasting machine is used fro removing scale and rust from metal profiles and sheet metal components. Suitable for surface derusting and painting process of shipping,car, motorcycle, bridge,machinery,etc.By combining a roller conveyor with the cross conveyors to connect the process step of shot blasting, conservation, sawing and drilling,it ensures a flexible process and high material production.
Multiple Colors Steel Plate Through Shot Blasting Machine
Multiple Colors Steel Plate Through Shot Blasting Machine
Multiple Colors Steel Plate Through Shot Blasting Machine

Multiple Colors Steel Plate Through Shot Blasting Machine
Multiple Colors Steel Plate Through Shot Blasting Machine
Multiple Colors Steel Plate Through Shot Blasting Machine

Product Parameters


                          Parameter

Type
Q6915 Q6815A Q6920 Q6920A Q6930A Q6930G Q6930J
Length >800 >800 >900 >2500 >6000 >6000 >6000
Steel plate width/mm ≤1500 ≤1500 ≤2000 ≤2000 ≤3000 ≤3000 ≤3000
Steel plate thickness(mm) 1.5-20 1.5-20 3-60 3-60 5-60 5-60 5-60
Section steel plate width(mm) 1200 1000 1200 1200 1450 1450 1000
Section steel plate thickness(mm) 200 200 450 300 500 500 300
Cleaning speed(m/min) 1-2 3-6 1-3 1-4 0.8-2 0.8-2 0.8-6
Impeller head quantity 4 6 6 4 6 6 4
Single abrasive flow rate(kg/min)  200 480 480 300 400 300 200
Single power/kw 15 37 37 22 30 22 18.5
Total power/kw 90.75 226.2 132 314 331.2 258.88 222.44
Overall dimension(mm) 12947*3673*6225 15500*3673*6850 16805*4800*7870 8200*5800*8840 9724*6392*8039 9020*6392*7600 9020*639*7733
Multiple Colors Steel Plate Through Shot Blasting Machine
After Sales Service

Pumingwei through shot blasting machine is professional,unque and irreplaceable
1.Supplier ensure that the name, model, specification and quantity are consistent with technical agreement ,and we
   make sure that all machine is new with qualifying product through perfect technology and installation,the quality is
   stable and reliable.There are no defects in design, material and technology,which is suitable for proposal of demander.
   And meets the standard of national industry.

2.Arrange for engineer or skilled labour to installation and debugging of equipment in overseas
  ( except force majeure, inappropriate operation and the quick-wear parts ).
3.In order to ensure a good quality, every machine in the factory will be strict calibration and debugging before they
   leave the factory.

4.We will direct the installation and operation of the equipment, and train operators for customer.

Detailed Photos

Multiple Colors Steel Plate Through Shot Blasting MachineMultiple Colors Steel Plate Through Shot Blasting Machine

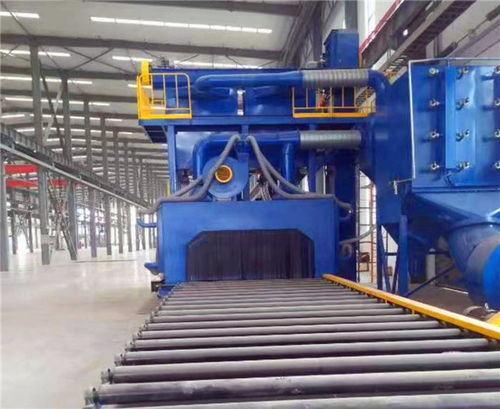

Conveyor system
It consists of loading and unloading rollers, body room and connecting rollers.Rollers in the shot blasting room are protected by specialalloy iron jacket casting with machine life over 4,200 hours.Conveyor system is driven by motors with inverter(stepless speed changing),rollers can be controlled manually and automatically,Roller conveyor can operate in step with the whole machine.
Multiple Colors Steel Plate Through Shot Blasting MachineMultiple Colors Steel Plate Through Shot Blasting MachineMultiple Colors Steel Plate Through Shot Blasting Machine
